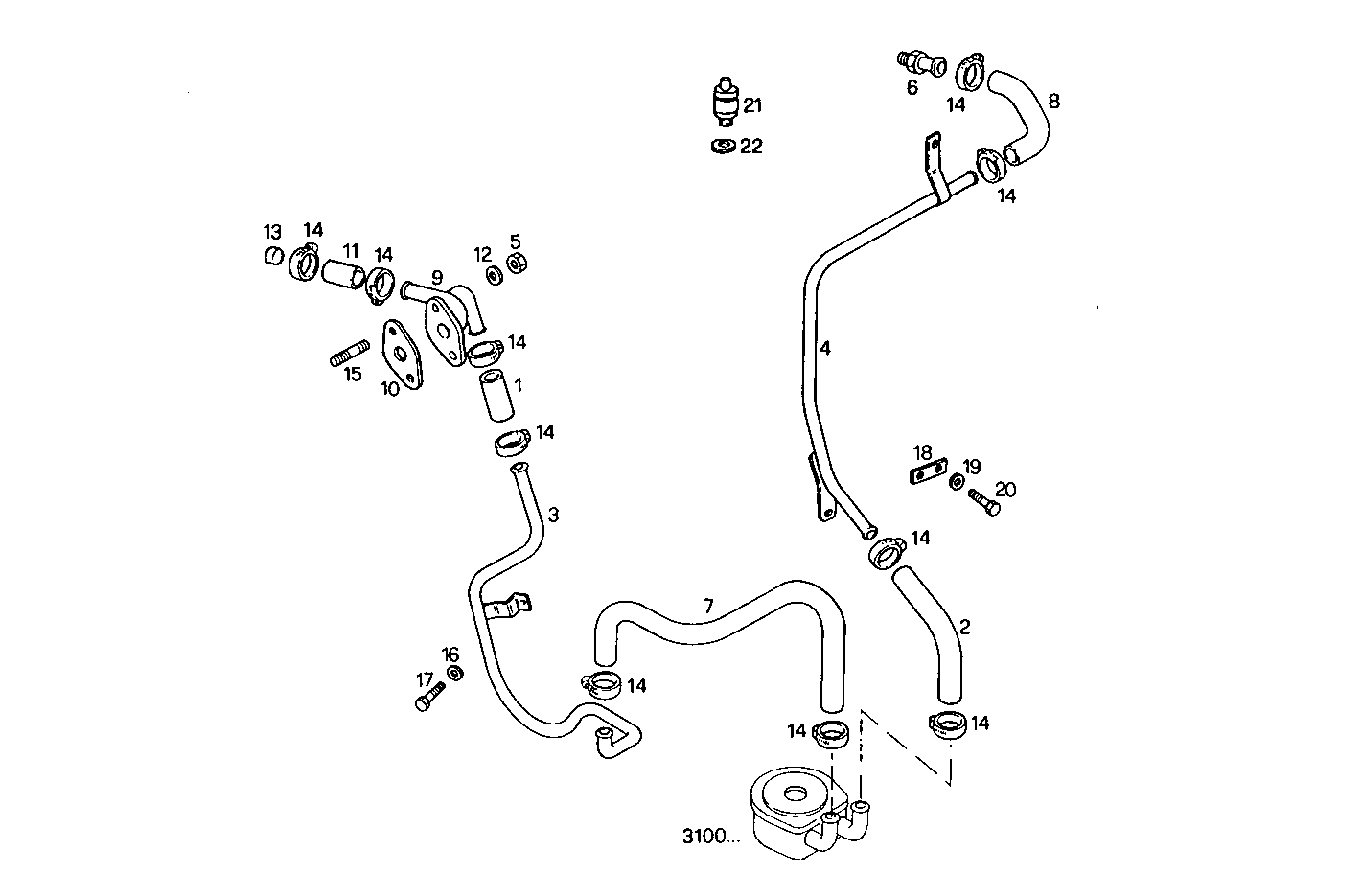

WATER LINES
8141Si27.02 — 8141Si27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98433754 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 2 | 4822221 | WATER HOSE WATER HOSE | 1 | |
| 3 | 98433796 | WATER PIPE WATER PIPE | 1 | |
| 4 | 98433784 | WATER PIPE WATER PIPE | 1 | |
| 5 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 6 | 98447076 | PIPE SOCKET PIPE SOCKET | 1 | |
| 7 | 99443116 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 8 | 99441774 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 9 | 98433830 | WATER PIPE WATER PIPE | 1 | |
| 10 | 98430478 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 11 | 17737487 | WATER HOSE WATER HOSE | 1 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 13 | 8107339 | PLUG PLUG | 1 | |
| 14 | 98463347 | CLIP CLIP | 10 | |
| 15 | 13543521 | STUD STUD | 2 | |
| 16 | 11198374 | SPRING WASHER SPRING WASHER | 1 | |
| 17 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 18 | 98457742 | RETAINER RETAINER | 1 | |
| 19 | 11190774 | SPRING WASHER SPRING WASHER | 1 | |
| 20 | 15540324 | SCREW SCREW | 1 | |
| 21 | 4933019 | TRANSMITTER TRANSMITTER | 1 | |
| 22 | 4858609 | WASHER WASHER | 1 |
