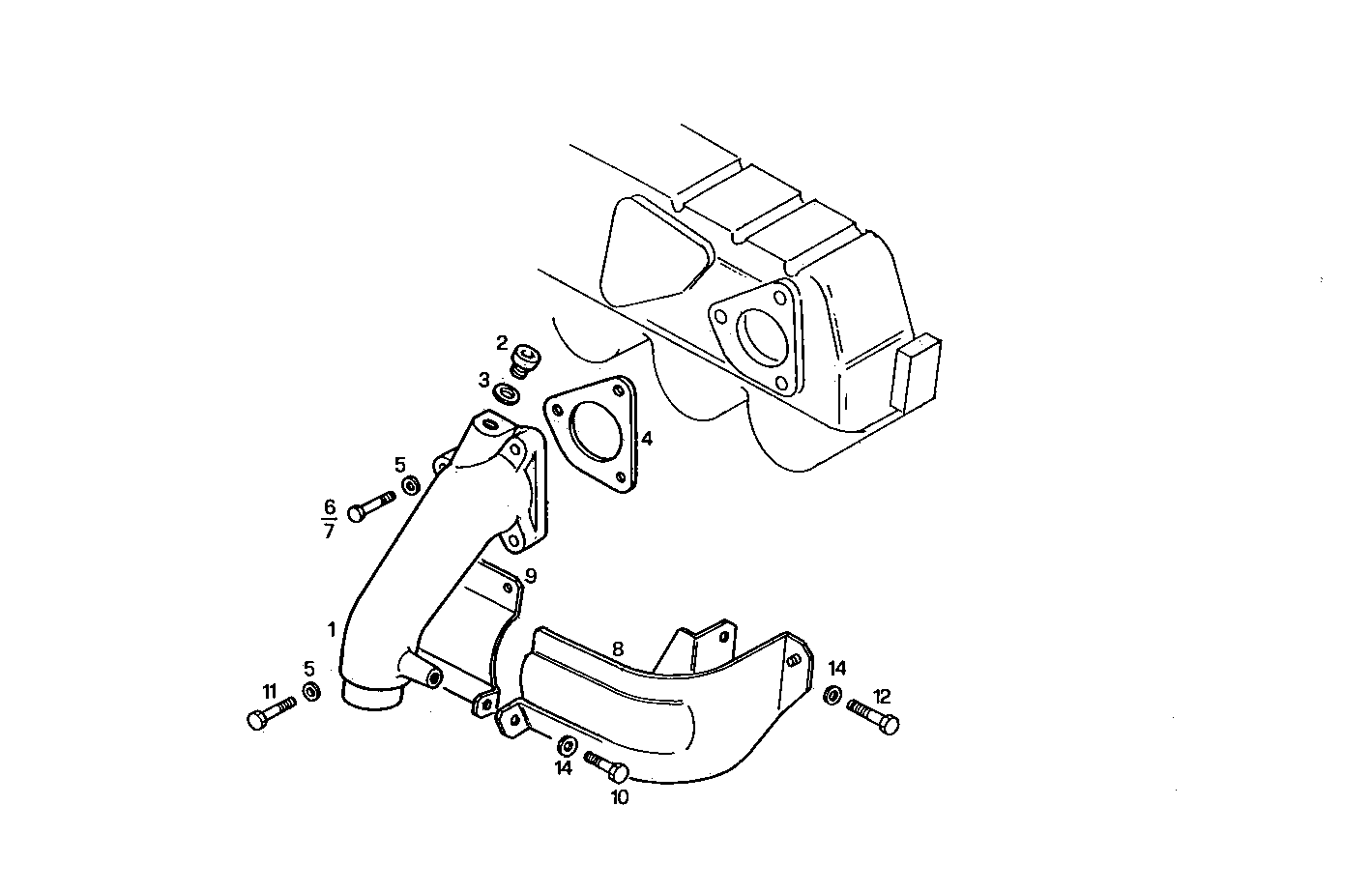

SUPERCHARGING LINES
8141SRC20.00 — 8141SRC20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8026810 | SUCTION LINE SUCTION LINE | 1 | |
| 2 | 4827588 | PLUG PLUG | 1 | |
| 3 | 10263360 | SEAL GASKET SEAL GASKET | 1 | |
| 4 | 98421281 | GASKET GASKET | 1 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 5 | |
| 6 | 16606021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 16605721 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 7303232 | PROTECTION PROTECTION | 1 | |
| 9 | 7302056 | PROTECTION PROTECTION | 1 | |
| 10 | 16043021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 16603524 | SCREW SCREW | 2 | |
| 12 | 16043124 | SCREW SCREW | 1 | |
| 14 | 11197774 | WASHER WASHER | 2 |
