THERMOSTARTER
8141SRC20.00 — 8141SRC20

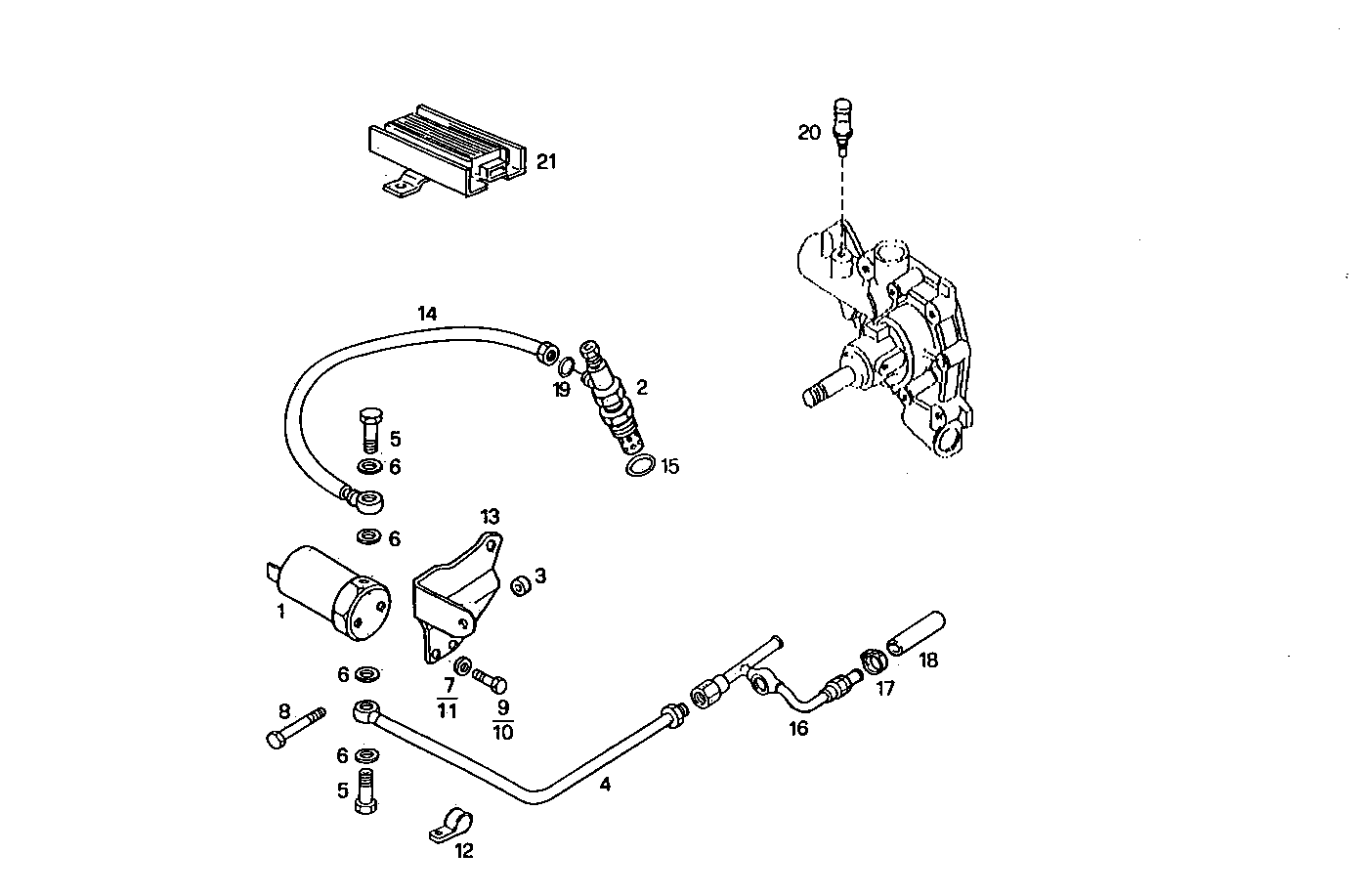

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98494902 | ELECTROVALVE ELECTROVALVE | 1 | |
| 2 | 99473620 | ELECTROVALVE ELECTROVALVE | 1 | |
| 3 | 4853864 | SPACING BAR SPACING BAR | 1 | |
| 4 | 4854000 | FUEL LINE FUEL LINE | 1 | |
| 5 | 4864079 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 6 | 98474305 | WASHER WASHER | 4 | |
| 7 | 17094504 | WASHER WASHER | 1 | |
| 8 | 16606624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 16602024 | SCREW SCREW | 1 | |
| 10 | 16603524 | SCREW SCREW | 1 | |
| 11 | 17088474 | WASHER WASHER | 1 | |
| 12 | 17314590 | RETAINER RETAINER | 2 | |
| 13 | 4853863 | RETAINER RETAINER | 1 | |
| 14 | 8026910 | FUEL LINE FUEL LINE | 1 | |
| 15 | 98429280 | SEAL GASKET SEAL GASKET | 1 | |
| 16 | 8021668 | AIR MANIFOLD AIR MANIFOLD | 1 | |
| 17 | 18087991 | CLIP CLIP | 2 | |
| 18 | 19056687 | RUBBER HOSE RUBBER HOSE | 1 | |
| 19 | 8024645 | O-RING O-RING | 1 | |
| 20 | 4857248 | TRANSMITTER TRANSMITTER | 1 | |
| 21 | 99484736 | ELECTR.CONTR.UNIT ELECTR.CONTR.UNIT | 1 |
