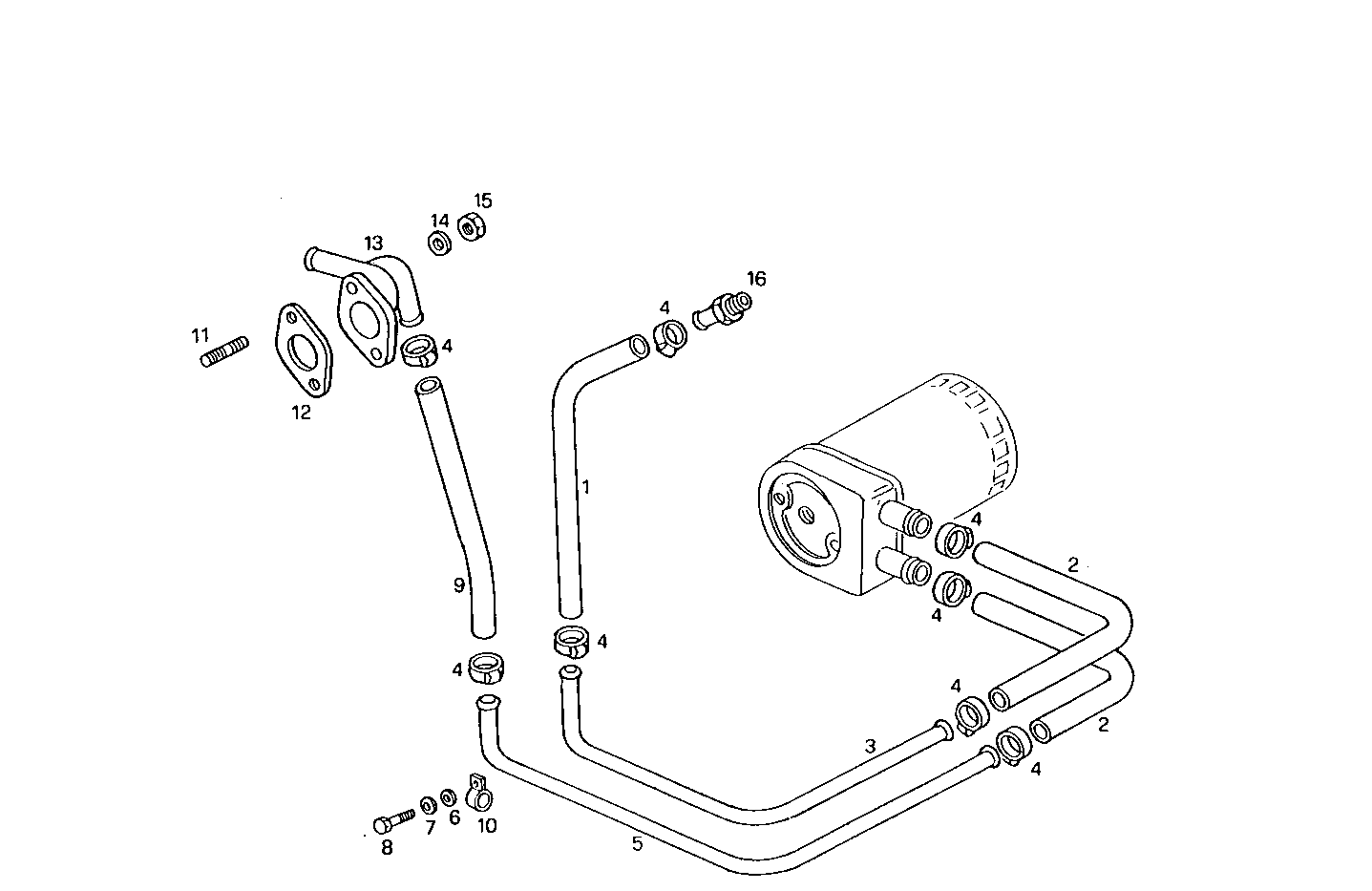

WATER LINES
8141SRC20.00 — 8141SRC20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98433775 | WATER HOSE WATER HOSE | 1 | |
| 2 | 99443116 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 3 | 500334654 | STEER.KNUCKLE RIGH STEER.KNUCKLE RIGH | 1 | |
| 4 | 98463347 | CLIP CLIP | 8 | |
| 5 | 99456322 | WATER PIPE WATER PIPE | 1 | |
| 6 | 17088474 | WASHER WASHER | 1 | |
| 7 | 11198374 | SPRING WASHER SPRING WASHER | 1 | |
| 8 | 15970524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 98474605 | ENGINE VALV.SPRING ENGINE VALV.SPRING | 1 | |
| 10 | 17315190 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 11 | 13543524 | STUD STUD | 2 | |
| 12 | 98430478 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 13 | 98433830 | WATER PIPE WATER PIPE | 1 | |
| 14 | 11193874 | WASHER WASHER | 2 | |
| 15 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 16 | 99447076 | CONNECTION PIPE CONNECTION PIPE | 1 |
