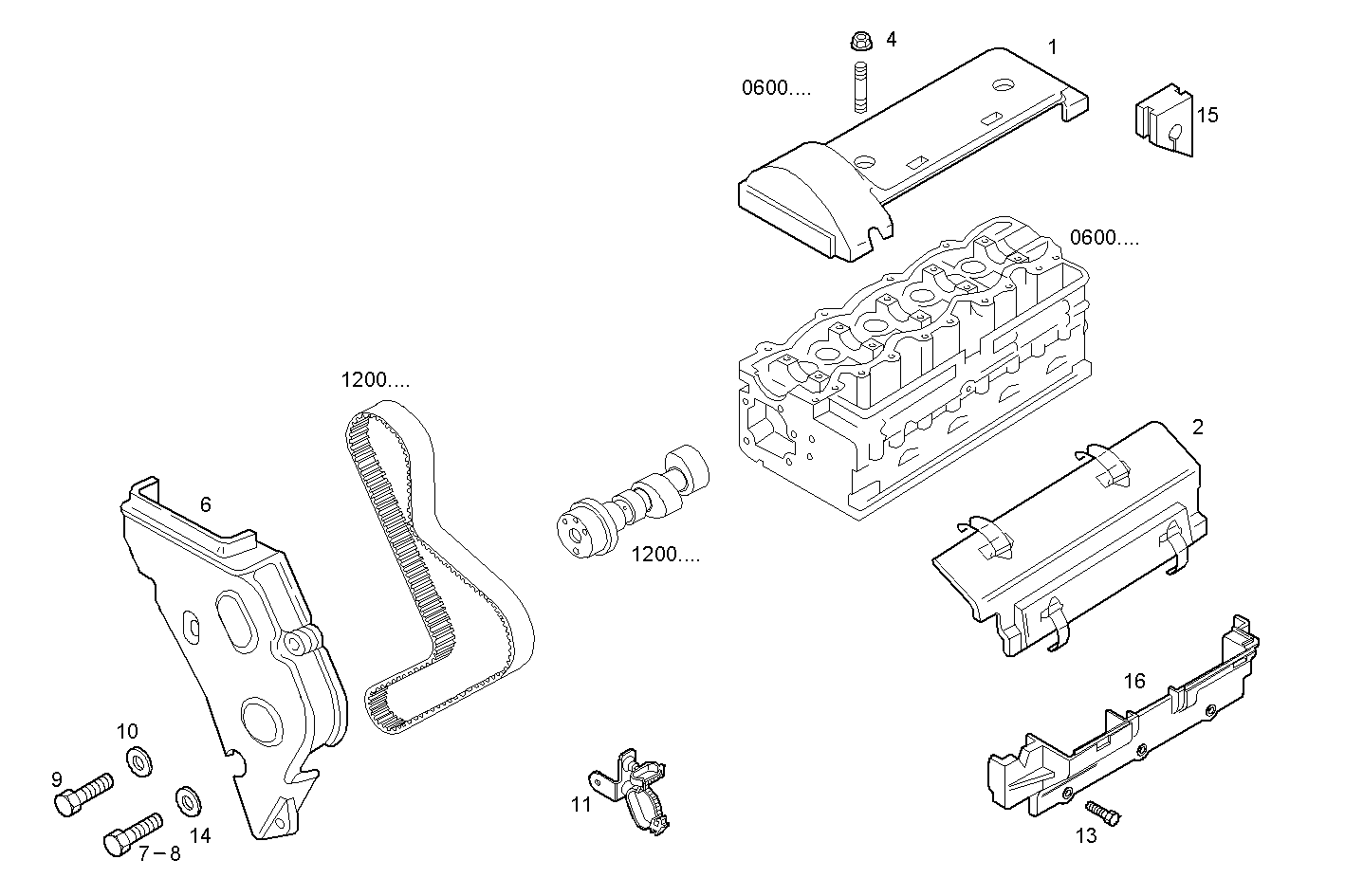

ASSY SOUND PROOFING
8149.03.4000 — 8149.03 CNG
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99471017 | CYL. HEAD COVER CYL. HEAD COVER | 1 | |
| 2 | 99471006 | SIDE COVER SIDE COVER | 1 | |
| 4 | 98439382 | NUT NUT | 2 | |
| 6 | 504022580 | COVER COVER | 1 | |
| 7 | 16296924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 16585925 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 99485223 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 12647724 | WASHER WASHER | 1 | |
| 11 | 500349212 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 13 | 16600224 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 14 | 12646624 | WASHER WASHER | 1 | |
| 15 | 500326627 | CHOCK CHOCK | 1 | |
| 16 | 500316894 | SIDE COVER SIDE COVER | 1 |
