IGNITION CONTROL
8210G75.10A500 — 8210G75

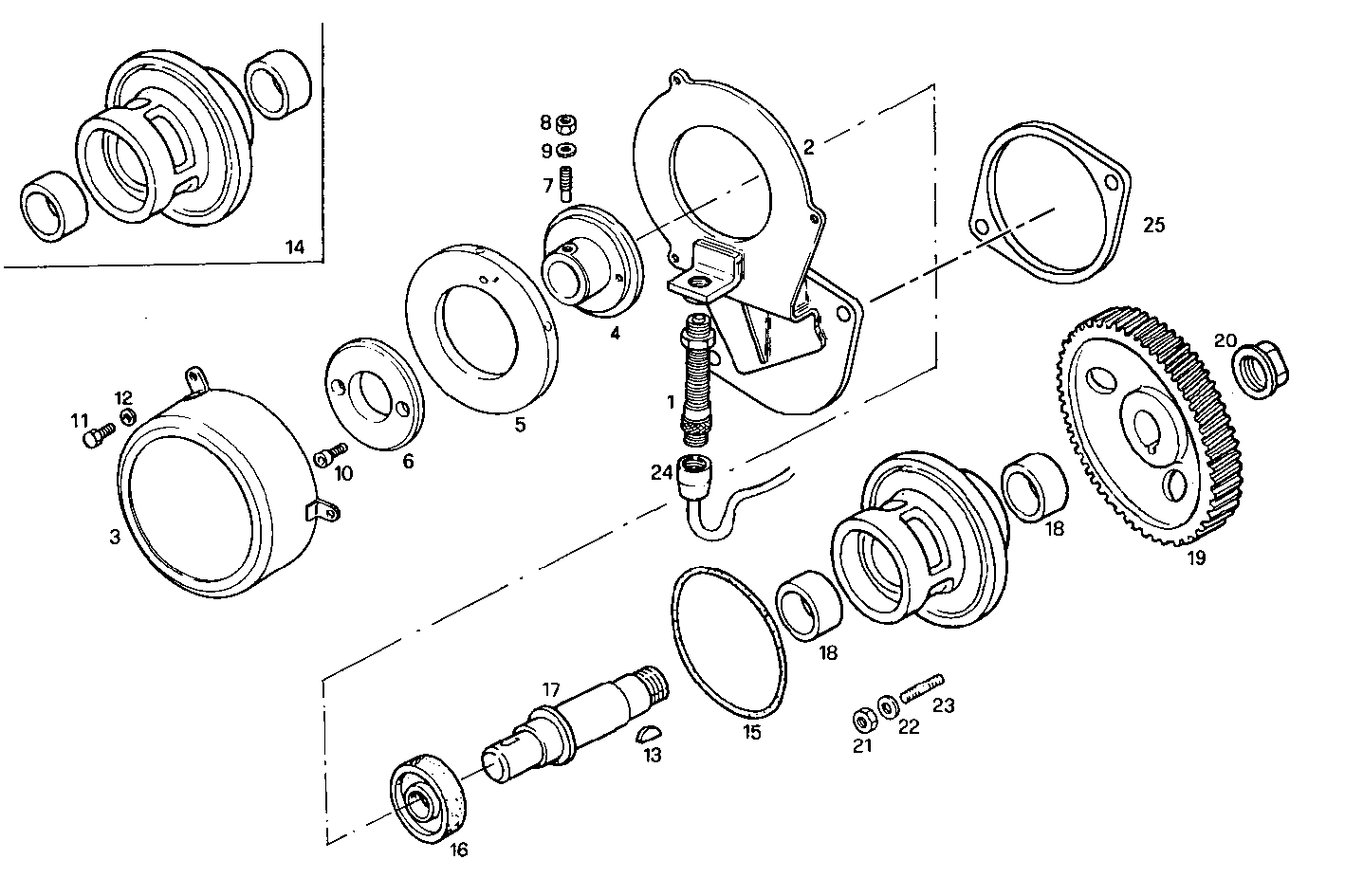

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017838 | PICK-UP PICK-UP | 1 | |
| 2 | 8021637 | SUPPORT SUPPORT | 1 | |
| 3 | 8021638 | COVER COVER | 1 | |
| 4 | 8021660 | HUB HUB | 1 | |
| 5 | 8021625 | IGNITION CONTROL DISC IGNITION CONTROL DISC | 1 | |
| 6 | 8021661 | FLANGE FLANGE | 1 | |
| 7 | 8021662 | DOWEL PIN DOWEL PIN | 1 | |
| 8 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 | |
| 9 | 17094774 | WASHER WASHER | 1 | |
| 10 | 16689124 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 11 | 16603524 | SCREW SCREW | 3 | |
| 12 | 17088474 | WASHER WASHER | 3 | |
| 13 | 10206320 | KEY KEY | 1 | |
| 14 | 98441163 | SUPPORT SUPPORT | 1 | |
| 15 | 17292481 | O-RING O-RING | 1 | |
| 16 | 98494989 | SHAFT SEAL SHAFT SEAL | 1 | |
| 17 | 99448787 | INJECT.PUMP SPIND INJECT.PUMP SPIND | 1 | |
| 18 | 4529701 | BEARING BUSH BEARING BUSH | 2 | |
| 19 | 98418371 | INJ.PUMP DRIV.GEA INJ.PUMP DRIV.GEA | 1 | |
| 20 | 4799474 | HEXAGON NUT HEXAGON NUT | 1 | |
| 21 | 17038221 | HEXAGON NUT HEXAGON NUT | 4 | |
| 22 | 17090274 | WASHER WASHER | 4 | |
| 23 | 13449424 | STUD STUD | 4 | |
| 24 | 8017841 | GAS PICK-UP CABLE GAS PICK-UP CABLE | 1 | |
| 25 | 98424208 | GASKET GASKET | 1 |
