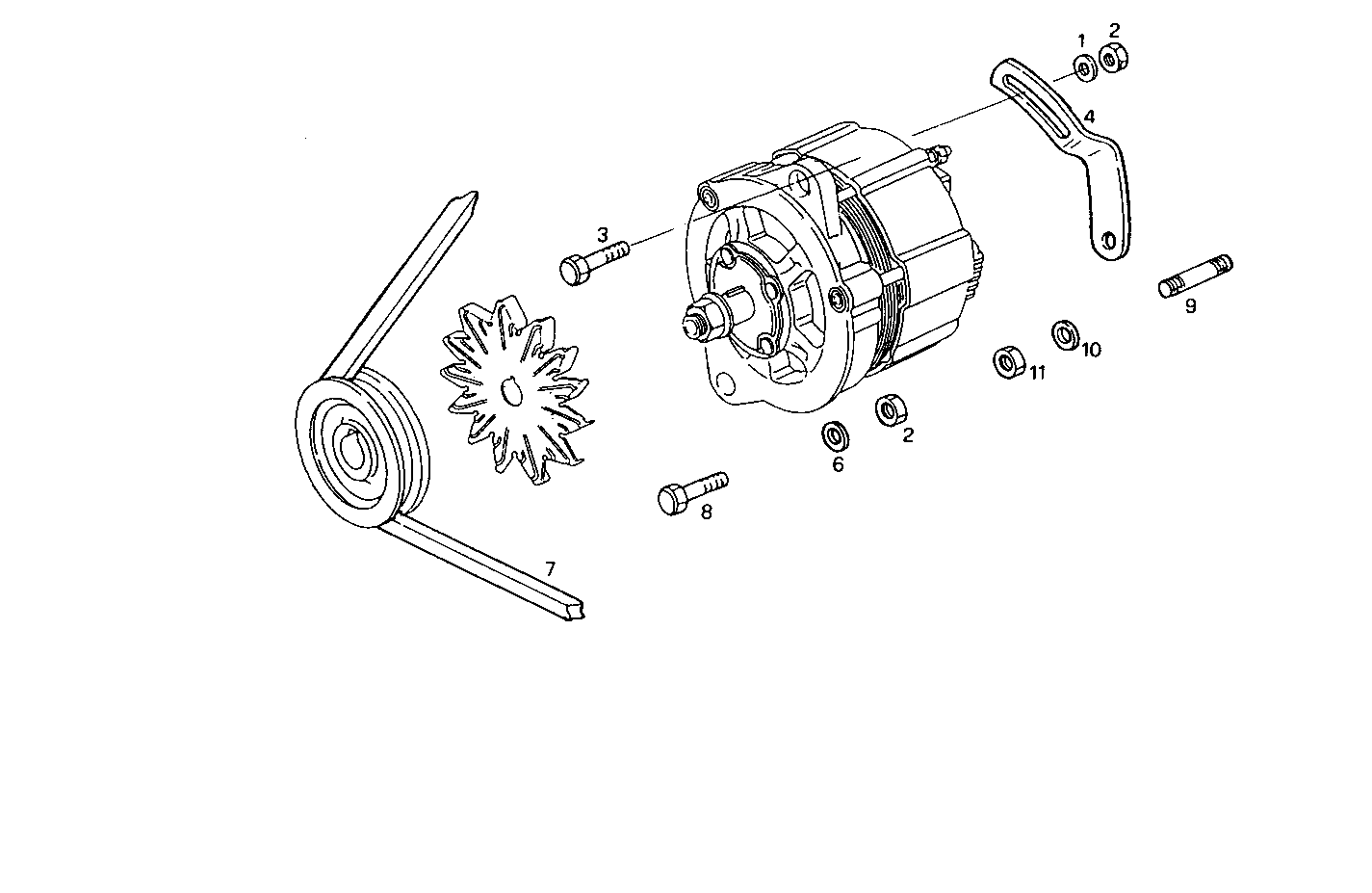

MOUNT
8210G75.10A500 — 8210G75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 17095104 | WASHER WASHER | 1 | |
| 2 | 17157221 | NUT NUT | 2 | |
| 3 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 4 | 8026654 | BELT TENSIONER BELT TENSIONER | 1 | |
| 6 | 12626024 | SPRING WASHER SPRING WASHER | 1 | |
| 7 | 4830930 | V-BELT V-BELT | 1 | |
| 8 | 15972221 | SCREW SCREW | 1 | |
| 9 | 13530121 | STUD STUD | 1 | |
| 10 | 17091074 | WASHER WASHER | 1 | |
| 11 | 17038621 | NUT NUT | 1 |
