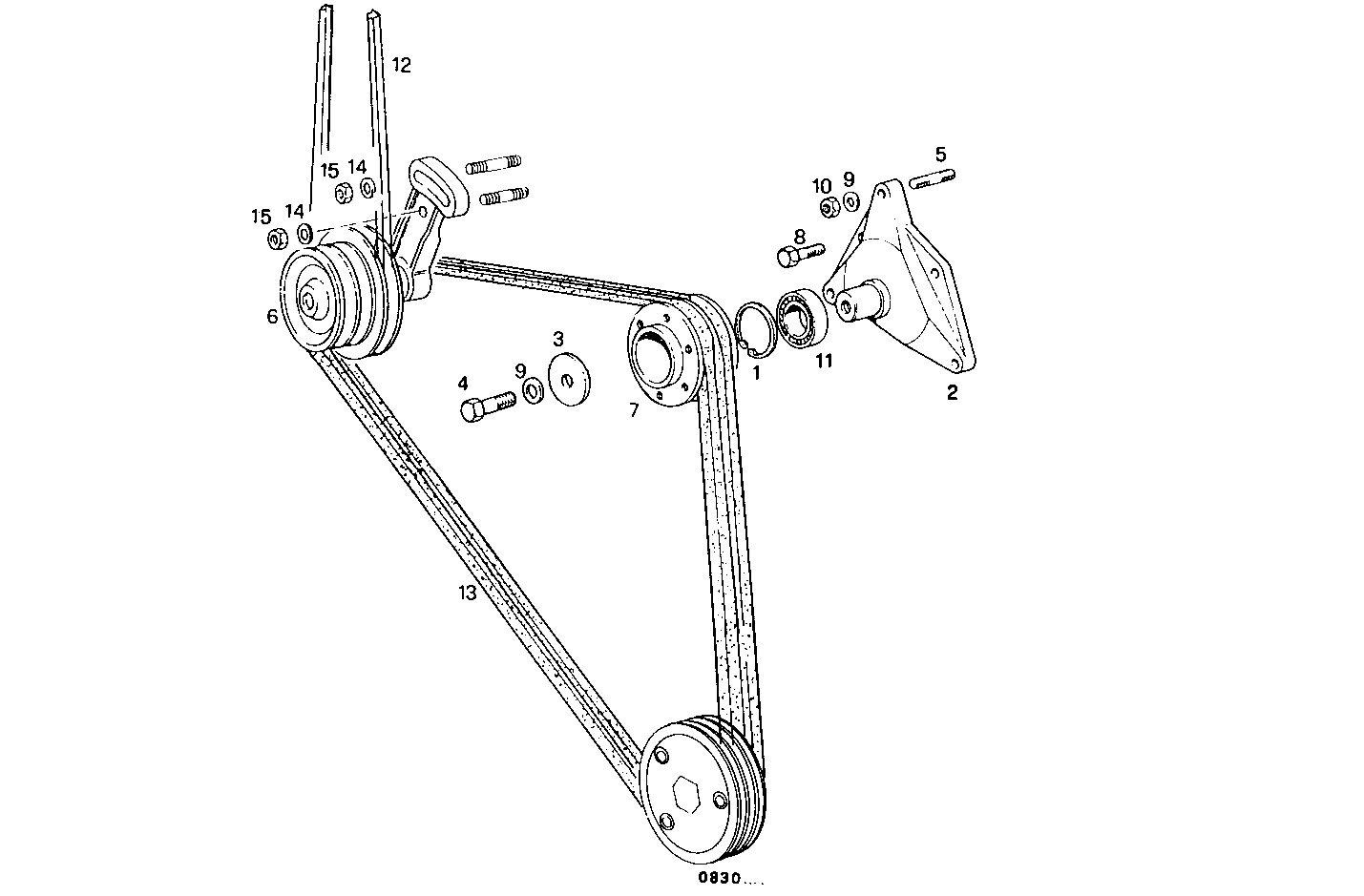

PULLEYS AND BELTS
8210G85.00A500 — 8210G85
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16874776 | CIRCLIP CIRCLIP | 1 | |
| 2 | 98464097 | SUPPORT SUPPORT | 1 | |
| 3 | 4801143 | WASHER WASHER | 1 | |
| 4 | 15540521 | SCREW SCREW | 1 | |
| 5 | 13453721 | STUD STUD | 3 | |
| 6 | 98485209 | BELT TENSIONER BELT TENSIONER | 1 | |
| 7 | 98464098 | PULLEY PULLEY | 1 | |
| 8 | 15972421 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 10 | 17038221 | HEXAGON NUT HEXAGON NUT | 3 | |
| 11 | 98427607 | ENGINE BEARINGS ENGINE BEARINGS | 1 | |
| 12 | 4814275 | ALTERNATOR BELT ALTERNATOR BELT | 1 | |
| 13 | 4854694 | SET OF V-BELTS SET OF V-BELTS | 1 | |
| 14 | 17091074 | WASHER WASHER | 2 | |
| 15 | 17038621 | NUT NUT | 2 |
