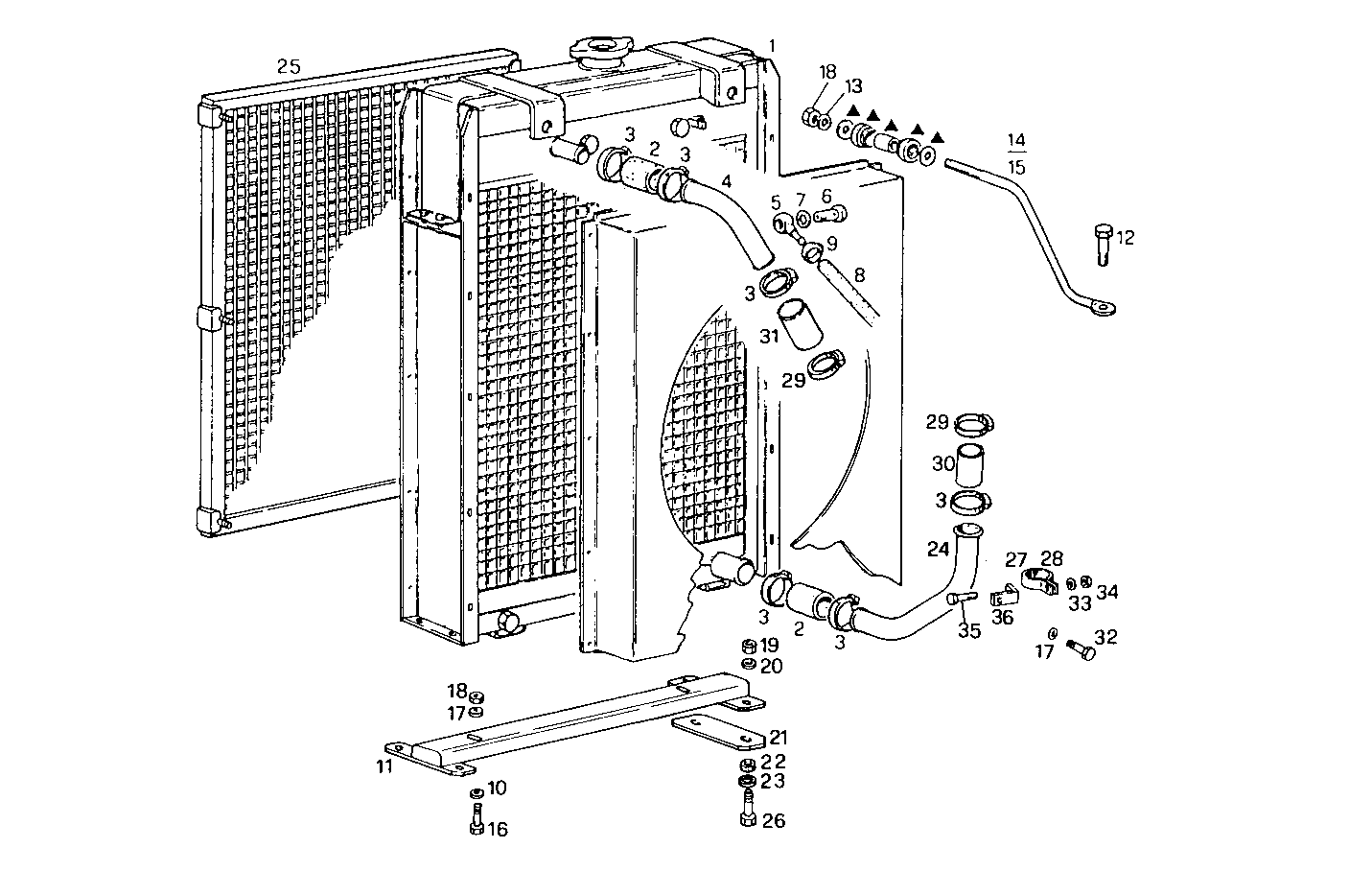

RADIATOR FOR SETTING TILL MAX POWER
8210G85.00A500 — 8210G85
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8113401 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 17745087 | WATER HOSE WATER HOSE | 2 | |
| 3 | 17764993 | CLIP CLIP | 6 | |
| 4 | 8024972 | WATER PIPE WATER PIPE | 1 | |
| 5 | 98405514 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 7 | 4858607 | WASHER WASHER | 2 | |
| 8 | 17756980 | PLASTIC TUBE PLASTIC TUBE | 1 | |
| 9 | 18087991 | CLIP CLIP | 2 | |
| 10 | 4837398 | WASHER WASHER | 4 | |
| 11 | 8024931 | SUPPORT SUPPORT | 1 | |
| 12 | 11343721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 17091374 | SPRING WASHER SPRING WASHER | 4 | |
| 14 | 8024973 | TIE ROD TIE ROD | 1 | |
| 15 | 8024974 | TIE ROD TIE ROD | 1 | |
| 16 | 16609924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 17091074 | WASHER WASHER | 2 | |
| 18 | 17038421 | HEXAGON NUT HEXAGON NUT | 6 | |
| 19 | 17038721 | NUT NUT | 4 | |
| 20 | 17091774 | SPRING WASHER SPRING WASHER | 4 | |
| 21 | 8010041 | SPACING BAR SPACING BAR | 2 | |
| 22 | 8019415 | SPACING BAR SPACING BAR | 4 | |
| 23 | 17095504 | WASHER WASHER | 4 | |
| 24 | 8024971 | WATER PIPE WATER PIPE | 1 | |
| 25 | 8104612 | PROTECTION PROTECTION | 1 | |
| 26 | 16612424 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 27 | 8113295 | CLAMP CLAMP | 1 | |
| 28 | 8113296 | CLAMP CLAMP | 1 | |
| 29 | 17765093 | CLIP CLIP | 2 | |
| 30 | 61583792 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 31 | 8102186 | WATER HOSE WATER HOSE | 1 | |
| 32 | 15540321 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 33 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 34 | 17038121 | HEXAGON NUT HEXAGON NUT | 1 | |
| 35 | 16607624 | SCREW SCREW | 1 | |
| 36 | 8102705 | RETAINER RETAINER | 1 |
