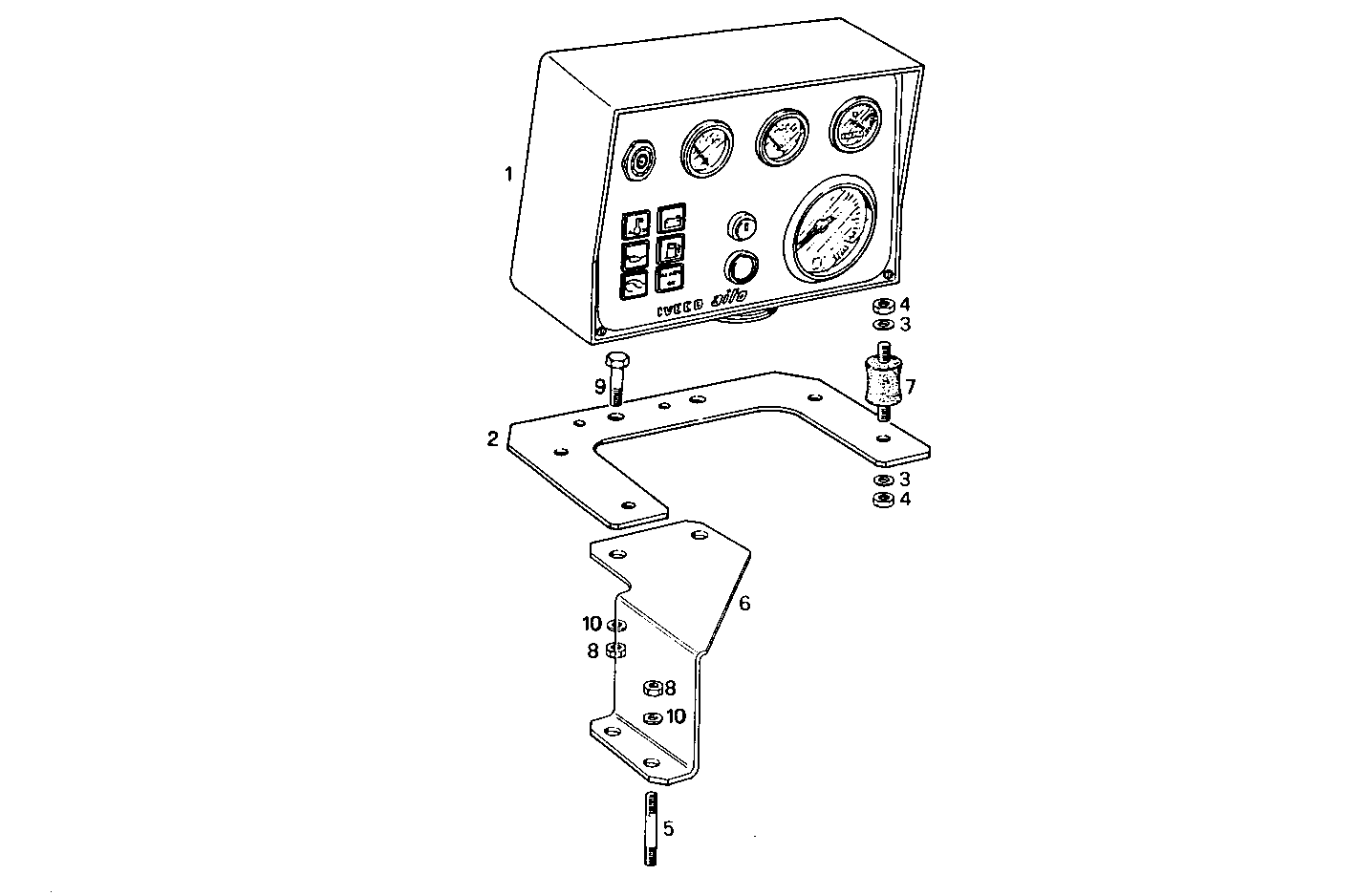

ELECTRIC INSTRUMENTS PANEL
8210i03.00 — 8210i03
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8025325 | INSTRUMENTS BOARD INSTRUMENTS BOARD | 1 | |
| 2 | 4928490 | RETAINER RETAINER | 1 | |
| 3 | 17088474 | WASHER WASHER | 8 | |
| 4 | 17037821 | HEXAGON NUT HEXAGON NUT | 8 | |
| 5 | 12429421 | STUD STUD | 2 | |
| 6 | 4928491 | SUPPORT SUPPORT | 1 | |
| 7 | 4910949 | RUBBER PAD RUBBER PAD | 4 | |
| 8 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 9 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 4 |
