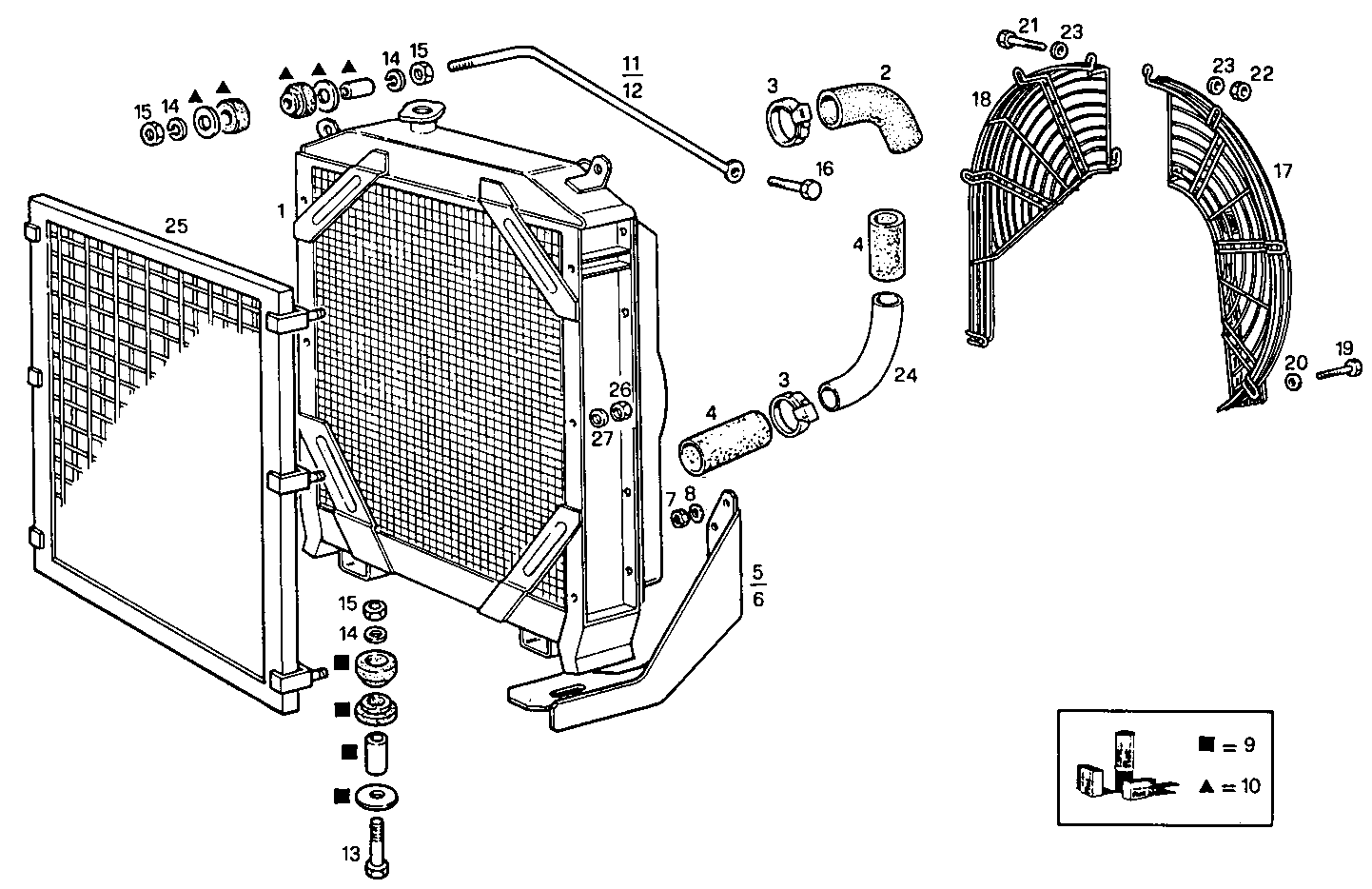

OVERSIZE RADIATOR
8210i03.00 — 8210i03
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8113398 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 4580242 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 3 | 12174790 | CLIP CLIP | 6 | |
| 4 | 10140086 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 2 | |
| 5 | 8103556 | SUPPORT SUPPORT | 1 | |
| 6 | 8103557 | SUPPORT SUPPORT | 1 | |
| 7 | 12164011 | HEXAGON NUT HEXAGON NUT | 6 | |
| 8 | 11200179 | SPRING WASHER SPRING WASHER | 6 | |
| 9 | 8090977 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 10 | 8090413 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 11 | 4934517 | TIE ROD TIE ROD | 1 | |
| 12 | 4919975 | TIE ROD TIE ROD | 1 | |
| 13 | 15541221 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 11198779 | SPRING WASHER SPRING WASHER | 6 | |
| 15 | 16101511 | HEXAGON NUT HEXAGON NUT | 6 | |
| 16 | 11343721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 17 | 8008670 | PROTECTION PROTECTION | 1 | |
| 18 | 8008669 | PROTECTION PROTECTION | 1 | |
| 19 | 15970621 | SCREW SCREW | 6 | |
| 20 | 17090474 | SPRING WASHER SPRING WASHER | 6 | |
| 21 | 16043621 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 22 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 23 | 17089771 | WASHER WASHER | 4 | |
| 24 | 4919978 | WATER PIPE WATER PIPE | 1 | |
| 25 | 4931985 | PROTECTION PROTECTION | 1 | |
| 26 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 | |
| 27 | 17089474 | SPRING WASHER SPRING WASHER | 6 |
