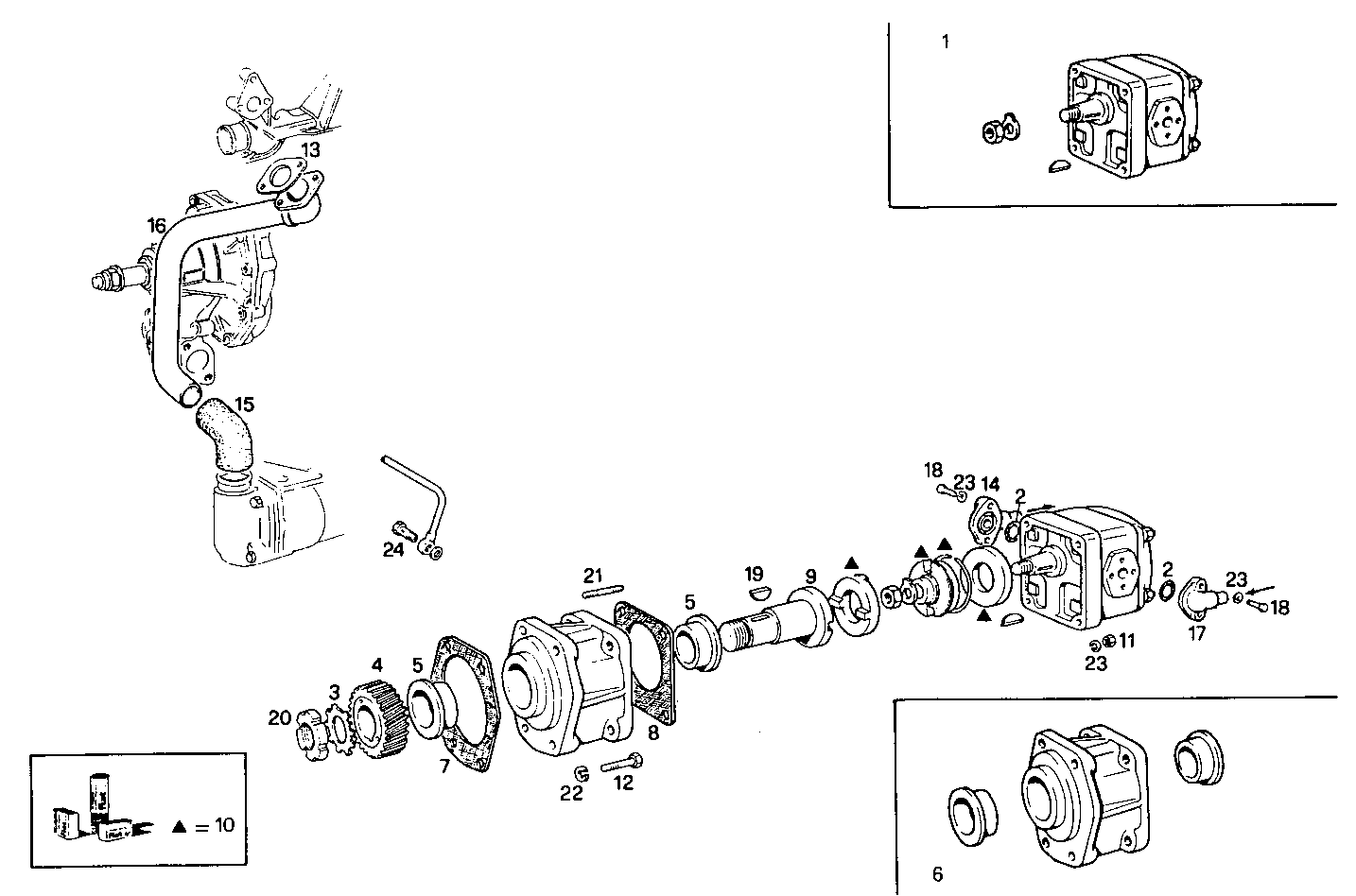

RIGHT FRONT HYDRAULIC PUMP
8210i03.00 — 8210i03
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 5130127 | LUBE OIL PUMP LUBE OIL PUMP | 1 | |
| 2 | 568170 | O-RING O-RING | 2 | |
| 3 | 4513025 | LOCKING PLATE LOCKING PLATE | 1 | |
| 4 | 4542440 | OIL PUMP DRIV.GEA OIL PUMP DRIV.GEA | 1 | |
| 5 | 4542444 | BUSH BUSH | 2 | |
| 6 | 4551423 | SUPPORT SUPPORT | 1 | |
| 7 | 4863975 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 8 | 4538832 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 4673408 | SHAFT SHAFT | 1 | |
| 10 | 8090978 | KIT-HYDRAULIC PUMP KIT-HYDRAULIC PUMP | 1 | |
| 11 | 15896211 | HEXAGON NUT HEXAGON NUT | 4 | |
| 12 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 13 | 4547637 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 14 | 4557971 | PIPE SOCKET PIPE SOCKET | 1 | |
| 15 | 4928715 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 16 | 4928716 | WATER PIPE WATER PIPE | 1 | |
| 17 | 4928899 | OIL LINE OIL LINE | 1 | |
| 18 | 14305521 | SCREW SCREW | 4 | |
| 19 | 10205920 | KEY KEY | 1 | |
| 20 | 10214110 | GROOVED NUT GROOVED NUT | 1 | |
| 21 | 10980821 | STUD STUD | 4 | |
| 22 | 11198379 | SPRING WASHER SPRING WASHER | 4 | |
| 23 | 11197779 | SPRING WASHER SPRING WASHER | 8 | |
| 24 | 4864078 | BANJO BOLT BANJO BOLT | 1 |
