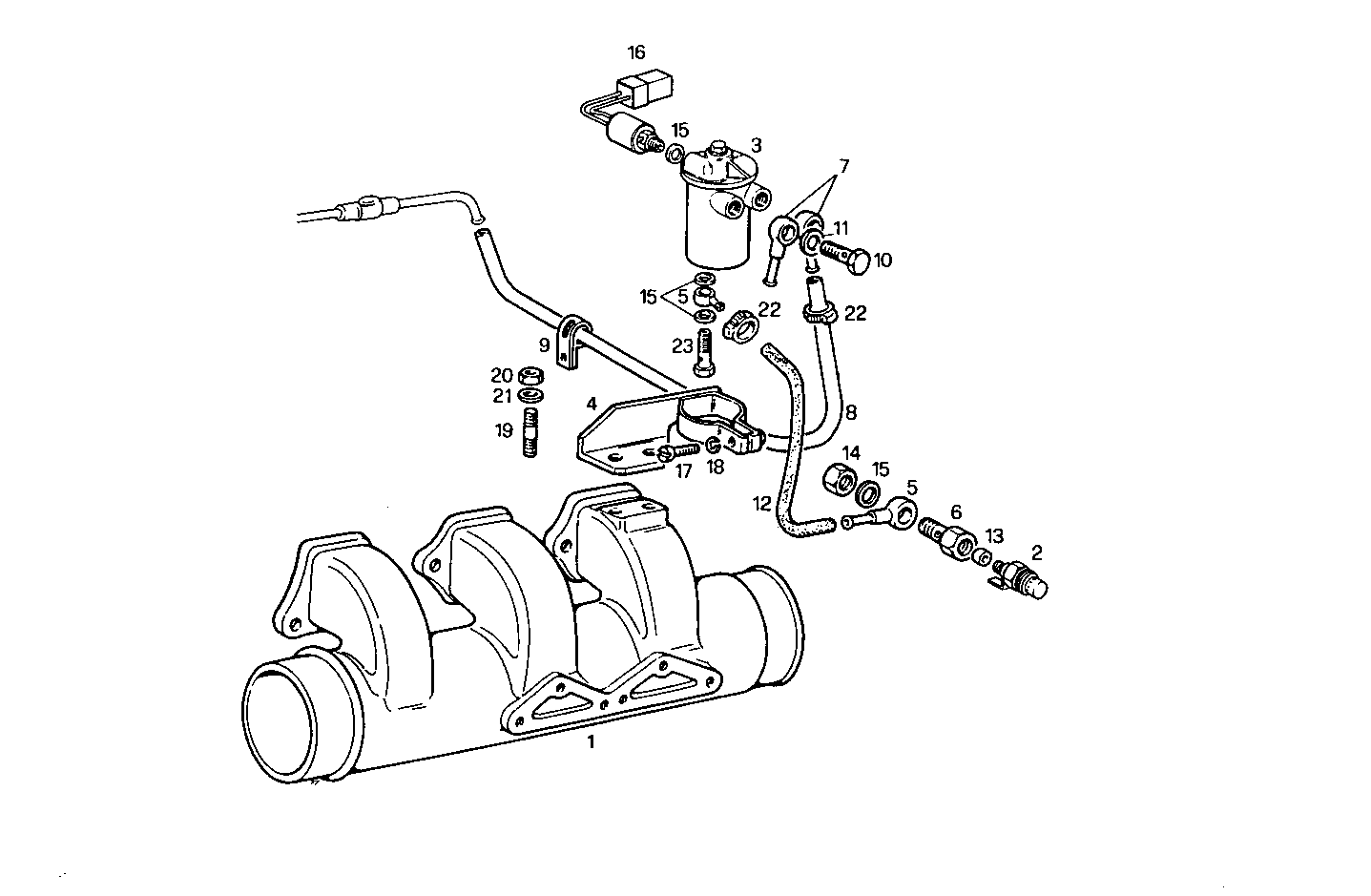

THERMOSTARTER
8210i03.00 — 8210i03
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8101945 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 2 | 4221168 | THERMO-STARTER THERMO-STARTER | 1 | |
| 3 | 4815431 | TANK FOR PREHEATER TANK FOR PREHEATER | 1 | |
| 4 | 4617012 | BRACKET BRACKET | 1 | |
| 5 | 4647661 | SWIVEL COUPLING SWIVEL COUPLING | 2 | |
| 6 | 4551101 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 7 | 98405514 | PIPE SOCKET PIPE SOCKET | 2 | |
| 8 | 19067987 | WATER HOSE WATER HOSE | 1 | |
| 9 | 10450490 | PIPE CLIP PIPE CLIP | 1 | |
| 10 | 4864082 | BANJO BOLT BANJO BOLT | 2 | |
| 11 | 98474306 | WASHER WASHER | 4 | |
| 12 | 4617014 | HOSE HOSE | 1 | |
| 13 | 4557649 | WASHER WASHER | 1 | |
| 14 | 11902017 | LOCK PLUG LOCK PLUG | 1 | |
| 15 | 98474303 | WASHER WASHER | 5 | |
| 16 | 98414208 | ELECT.V.VE.PREHEAT ELECT.V.VE.PREHEAT | 1 | |
| 17 | 10389911 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 1 | |
| 18 | 17494634 | SPRING WASHER SPRING WASHER | 1 | |
| 19 | 13543121 | STUD STUD | 2 | |
| 20 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 21 | 11198079 | SPRING WASHER SPRING WASHER | 2 | |
| 22 | 12178990 | CLIP CLIP | 2 | |
| 23 | 4864078 | BANJO BOLT BANJO BOLT | 1 |
