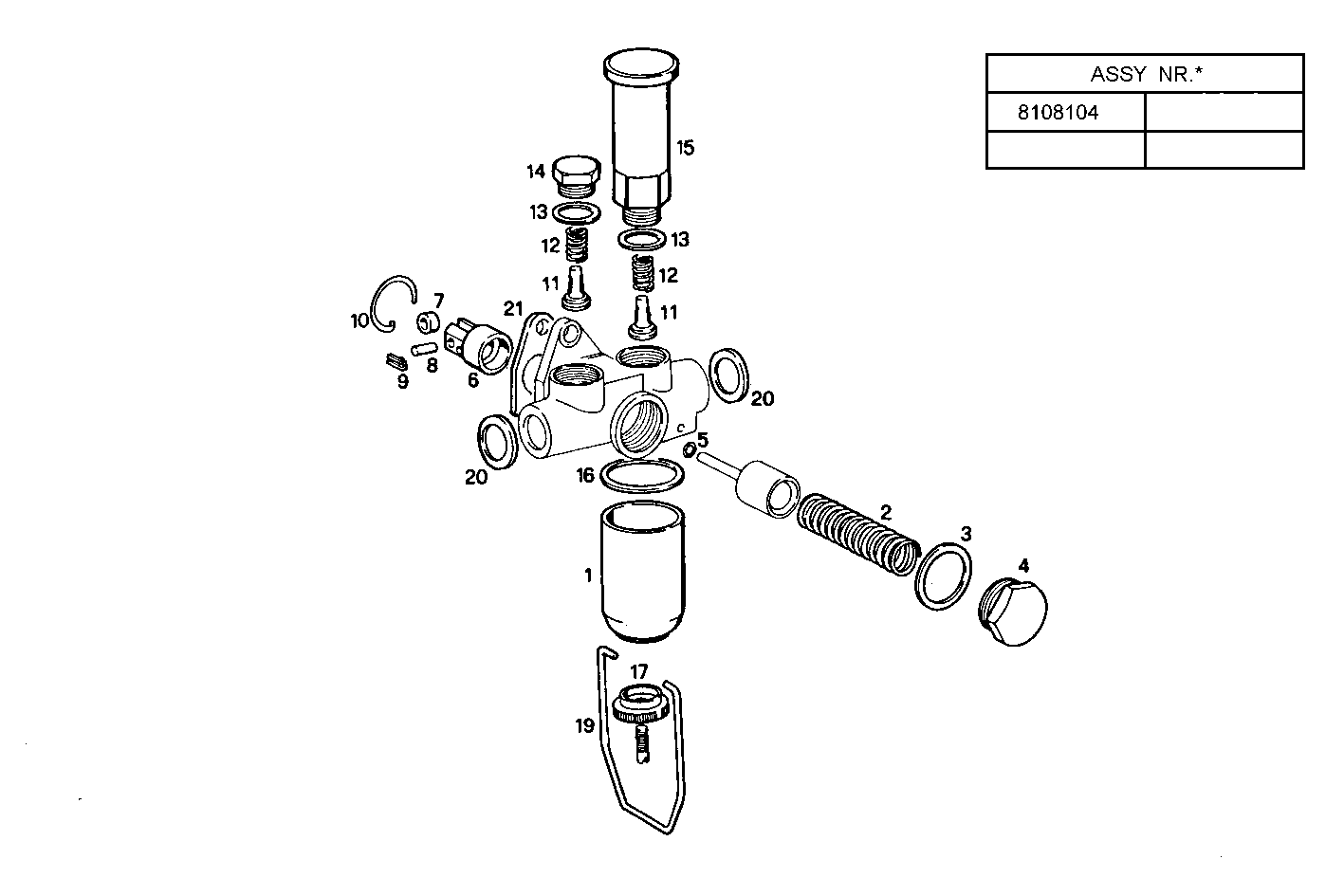

FUEL PUMP (COMPONENTS)
8210M22.10 — 8210M22
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4934458 | PRECLEANER PRECLEANER | 1 | |
| 2 | 772158 | SPRING SPRING | 1 | |
| 3 | 1290550 | GASKET GASKET | 1 | |
| 4 | 772116 | PLUG PLUG | 1 | |
| 5 | 1289782 | O-RING O-RING | 1 | |
| 6 | 772119 | ROLLER TAPPET ROLLER TAPPET | 1 | |
| 7 | 772121 | ROLLER ROLLER | 1 | |
| 8 | 2985086 | ROLLER TAPPET ROLLER TAPPET | 1 | |
| 9 | 772123 | SLIDING SHOE SLIDING SHOE | 2 | |
| 10 | 772124 | CIRCLIP CIRCLIP | 1 | |
| 11 | 79051845 | VALVE VALVE | 2 | |
| 12 | 1290593 | SPRING SPRING | 2 | |
| 13 | 1287773 | GASKET GASKET | 2 | |
| 14 | 9922405 | PLUG PLUG | 1 | |
| 15 | 42531610 | HAND PUMP HAND PUMP | 1 | |
| 16 | 9930050 | GASKET GASKET | 1 | |
| 17 | 772164 | GROOVED NUT GROOVED NUT | 1 | |
| 19 | 1290637 | RETAINER RETAINER | 1 | |
| 20 | 746152 | GASKET GASKET | 4 | |
| 21 | 8198198 | GASKET GASKET | 1 |
