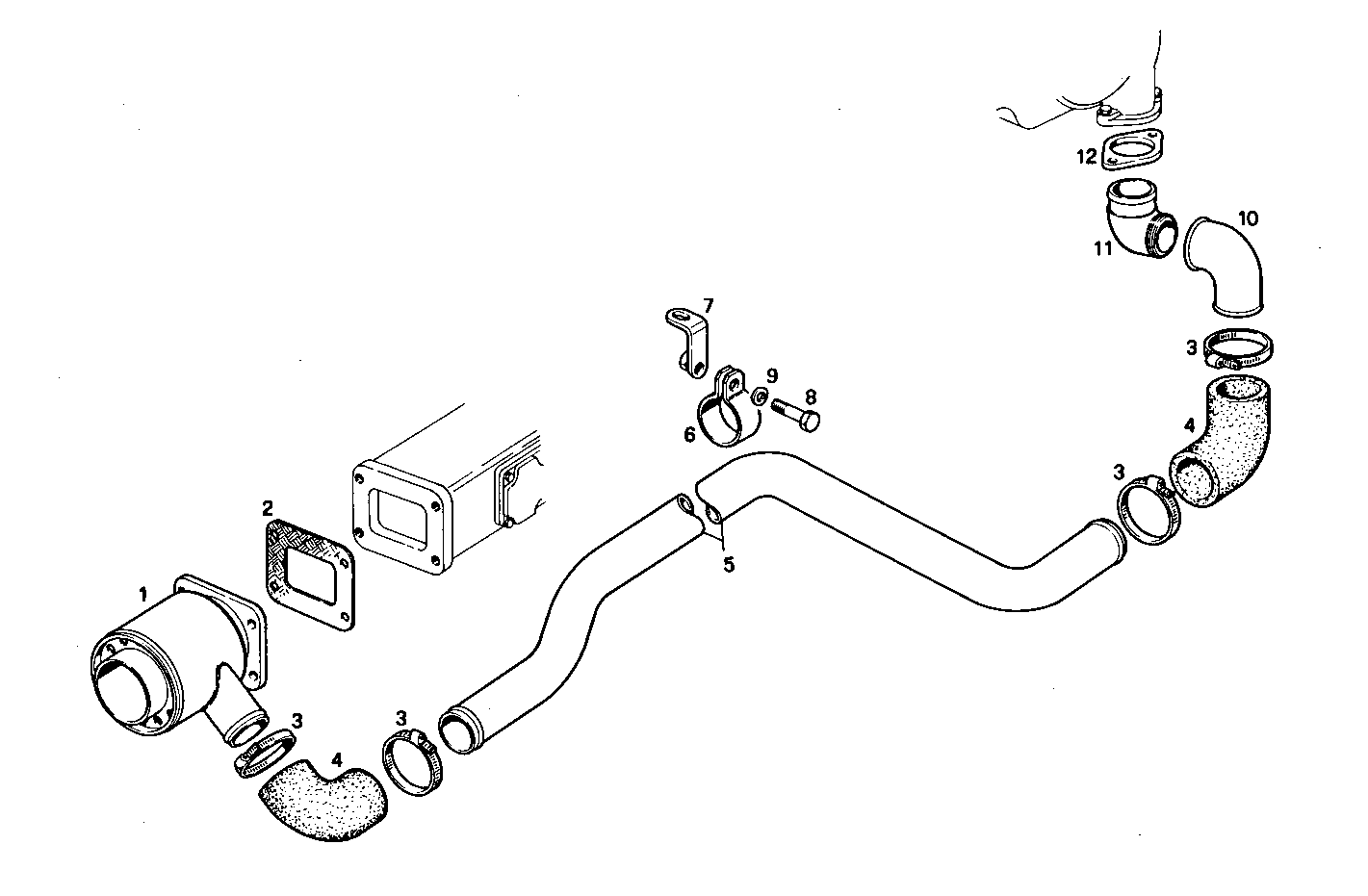

GAS-WATER MIXER WITH STERN OUTLET
8210M22.10 — 8210M22
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8010499 | EXHAUST COOL. ELBOW EXHAUST COOL. ELBOW | 1 | |
| 2 | 4512366 | GASKET GASKET | 1 | |
| 3 | 17764993 | CLIP CLIP | 4 | |
| 4 | 8110487 | WATER HOSE WATER HOSE | 2 | |
| 5 | 8010515 | WATER HOSE WATER HOSE | 1 | |
| 6 | 4640545 | CLIP CLIP | 1 | |
| 7 | 8100819 | RETAINER RETAINER | 1 | |
| 8 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 10 | 8110487 | WATER HOSE WATER HOSE | 1 | |
| 11 | 8109665 | SEA WATER PIPE SEA WATER PIPE | 1 |
