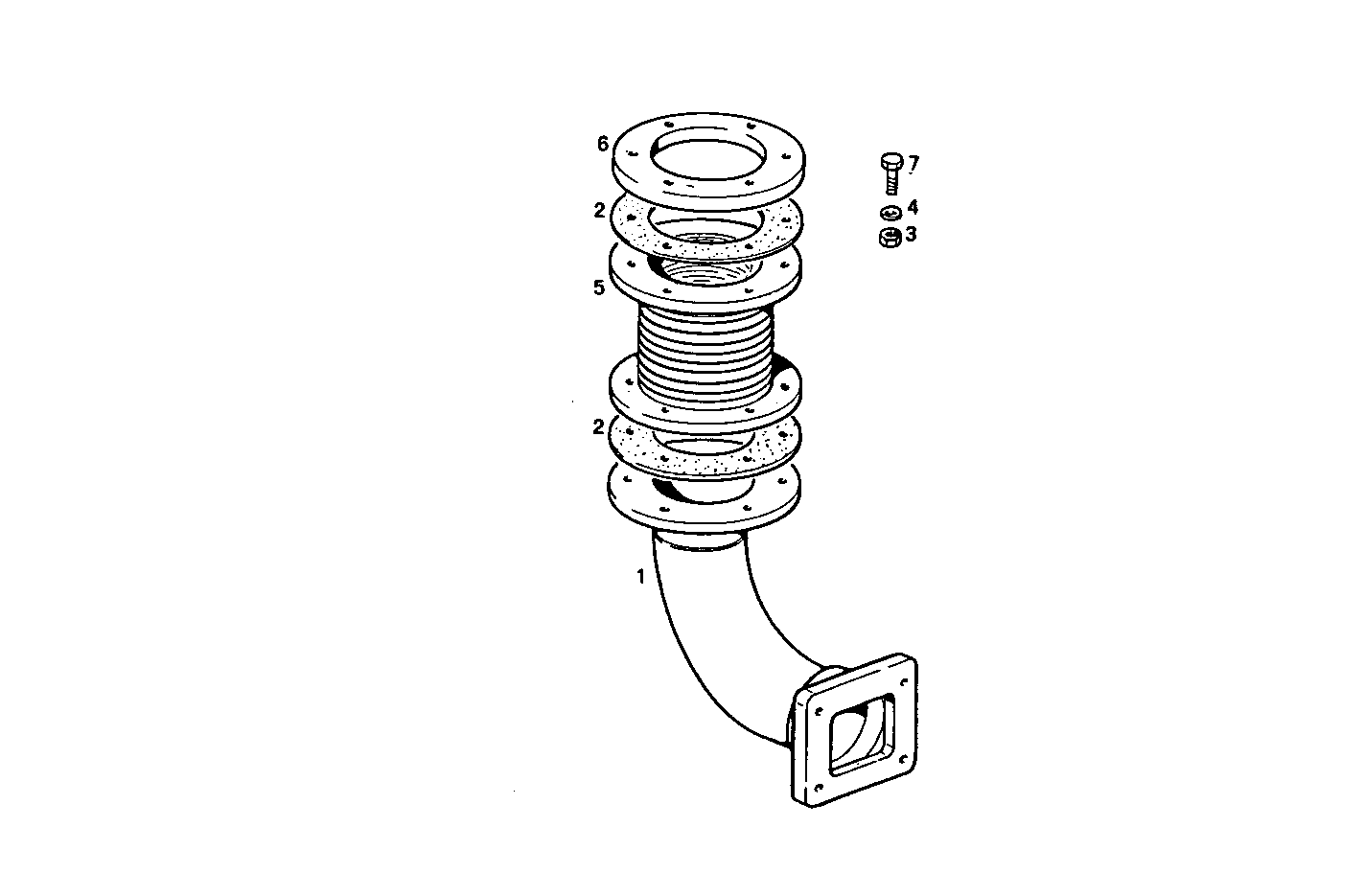

UPWARD REAR EXHAUST ELBOW
8210M22.10 — 8210M22
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8103727 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 2 | 8009639 | GASKET GASKET | 2 | |
| 3 | 12164711 | HEXAGON NUT HEXAGON NUT | 12 | |
| 4 | 11198371 | SPRING WASHER SPRING WASHER | 12 | |
| 5 | 4918541 | EXHAUST BELLOWS EXHAUST BELLOWS | 1 | |
| 6 | 4917113 | FLANGE FLANGE | 1 | |
| 7 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 12 |
