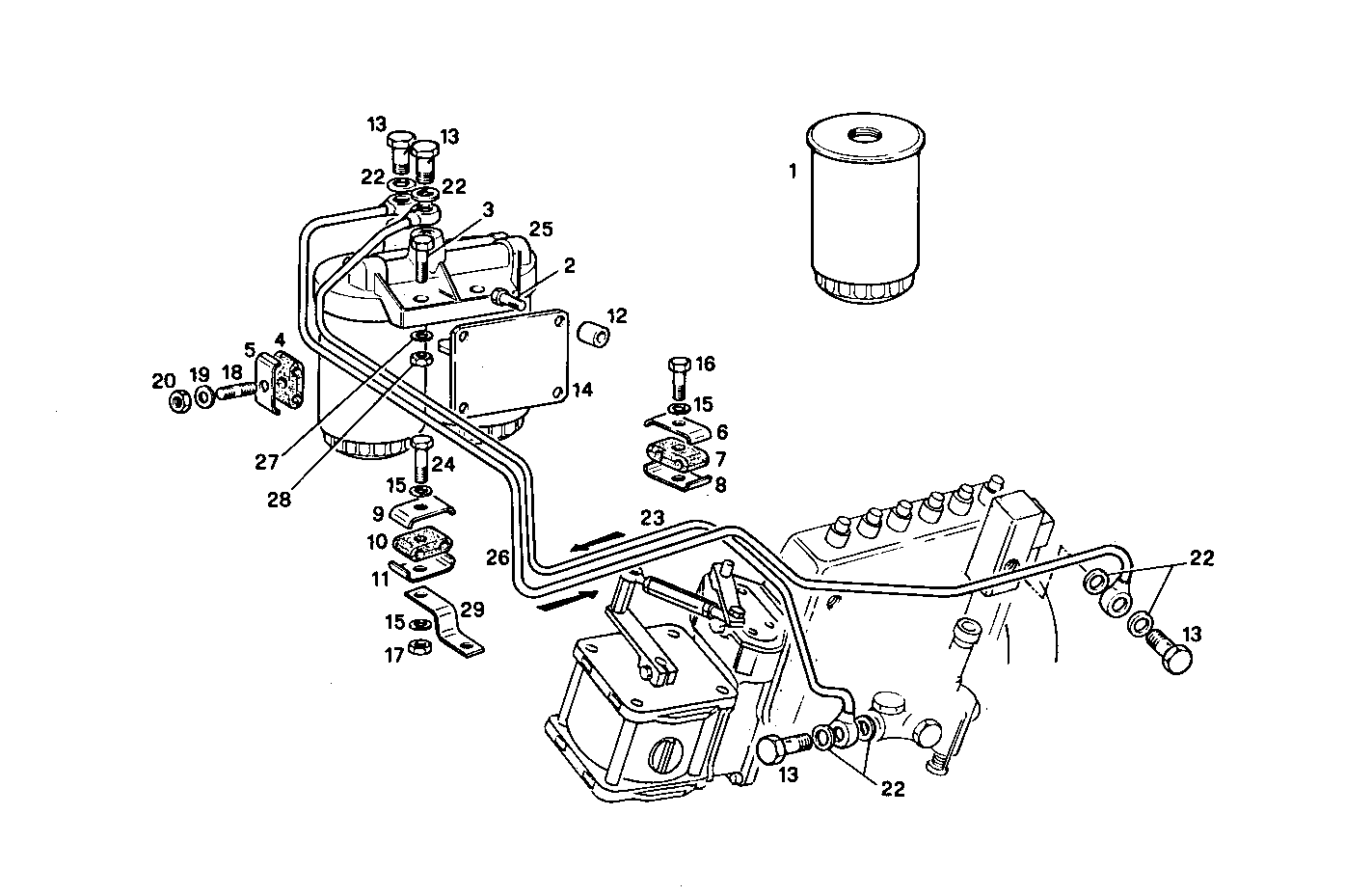

DOUBLE FUEL FILTER
8210M22.30 — 8210M22
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8106473 | FUEL FILTER CARTRIDGE FUEL FILTER CARTRIDGE | 1 | |
| 2 | 16625734 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 3 | 15540721 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 4651774 | RUBBER PAD RUBBER PAD | 1 | |
| 5 | 4651773 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 6 | 4644288 | CLIP CLIP | 2 | |
| 7 | 4871771 | RUBBER PAD RUBBER PAD | 2 | |
| 8 | 4644289 | CLIP CLIP | 2 | |
| 9 | 4649540 | RETAINER RETAINER | 1 | |
| 10 | 4761451 | RUBBER PAD RUBBER PAD | 1 | |
| 11 | 4641551 | CLAMP CLAMP | 1 | |
| 12 | 13605811 | SPACER SPACER | 4 | |
| 13 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 4 | |
| 14 | 8109233 | RETAINER RETAINER | 1 | |
| 15 | 11197771 | SPRING WASHER SPRING WASHER | 3 | |
| 16 | 16603824 | SCREW SCREW | 2 | |
| 17 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 | |
| 18 | 13517221 | STUD STUD | 1 | |
| 19 | 11198071 | SPRING WASHER SPRING WASHER | 1 | |
| 20 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 22 | 4858608 | SEAL GASKET SEAL GASKET | 6 | |
| 23 | 8013538 | FUEL LINE FUEL LINE | 1 | |
| 24 | 16600424 | SCREW SCREW | 1 | |
| 25 | 8108315 | FUEL FILTER FUEL FILTER | 1 | |
| 26 | 8013543 | FUEL LINE FUEL LINE | 1 | |
| 27 | 11190779 | SPRING WASHER SPRING WASHER | 2 | |
| 28 | 16101511 | HEXAGON NUT HEXAGON NUT | 2 | |
| 29 | 8100407 | RETAINER RETAINER | 1 |
