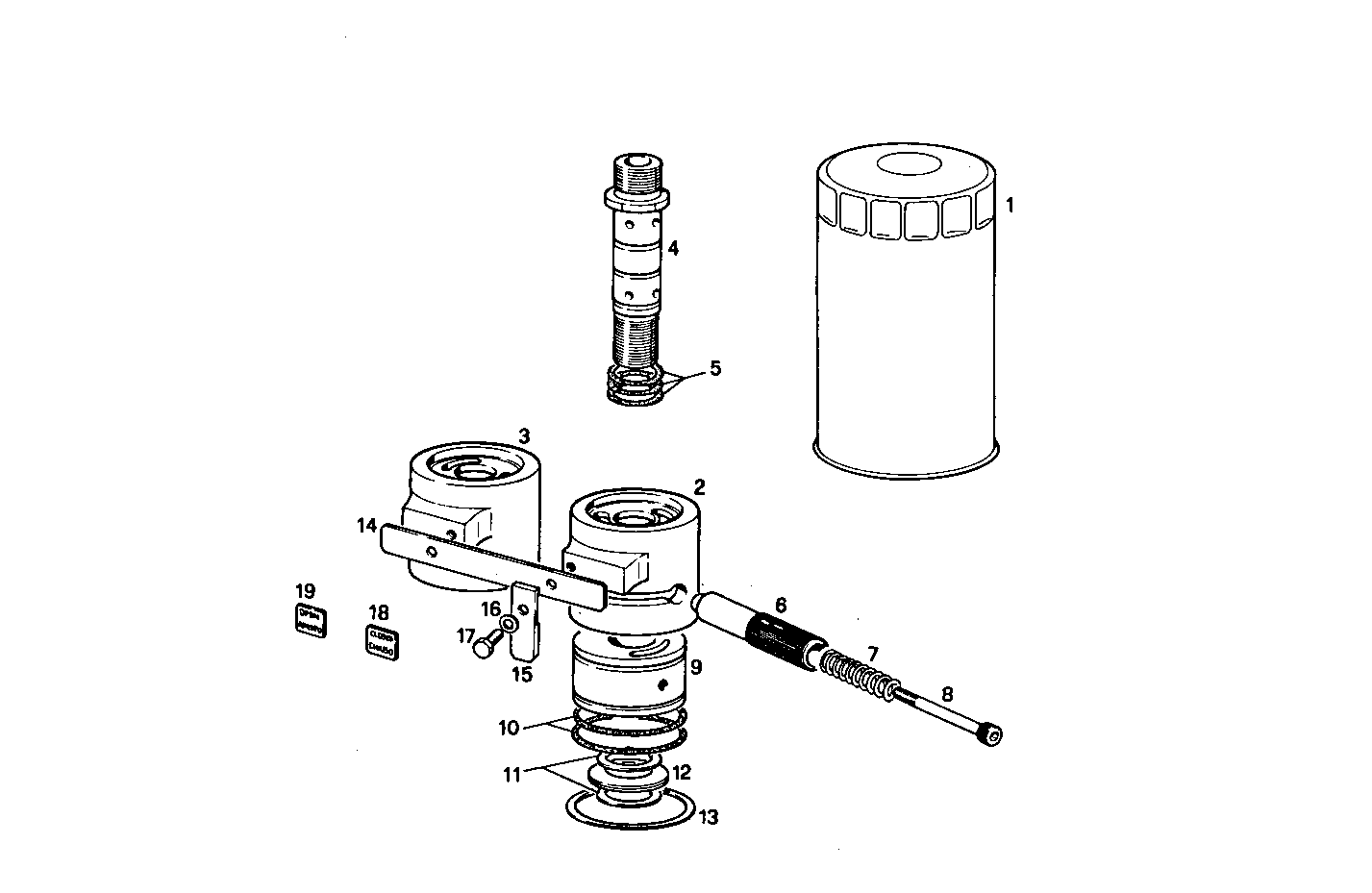

DOUBLE OIL FILTER
8210M22.30 — 8210M22
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 1907570 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 2 | |
| 2 | 8100281 | OIL FILTER SUPPORT OIL FILTER SUPPORT | 1 | |
| 3 | 8100280 | OIL FILTER SUPPORT OIL FILTER SUPPORT | 1 | |
| 4 | 8100283 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 5 | 14457581 | O-RING O-RING | 6 | |
| 6 | 8101890 | HANDLE BALL HANDLE BALL | 2 | |
| 7 | 8100285 | SPRING SPRING | 2 | |
| 8 | 14309020 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 9 | 8100282 | VALVE HOUSING VALVE HOUSING | 2 | |
| 10 | 14460081 | O-RING O-RING | 4 | |
| 11 | 4544153 | SHIM SHIM | 4 | |
| 12 | 8100286 | SPRING SPRING | 12 | |
| 13 | 8009899 | O-RING O-RING | 2 | |
| 14 | 8106121 | PLATE PLATE | 1 | |
| 15 | 8100289 | PLATE PLATE | 2 | |
| 16 | 11197771 | SPRING WASHER SPRING WASHER | 2 | |
| 17 | 10902221 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 18 | 8100291 | LABEL LABEL | 2 | |
| 19 | 8100290 | LABEL LABEL | 2 |
