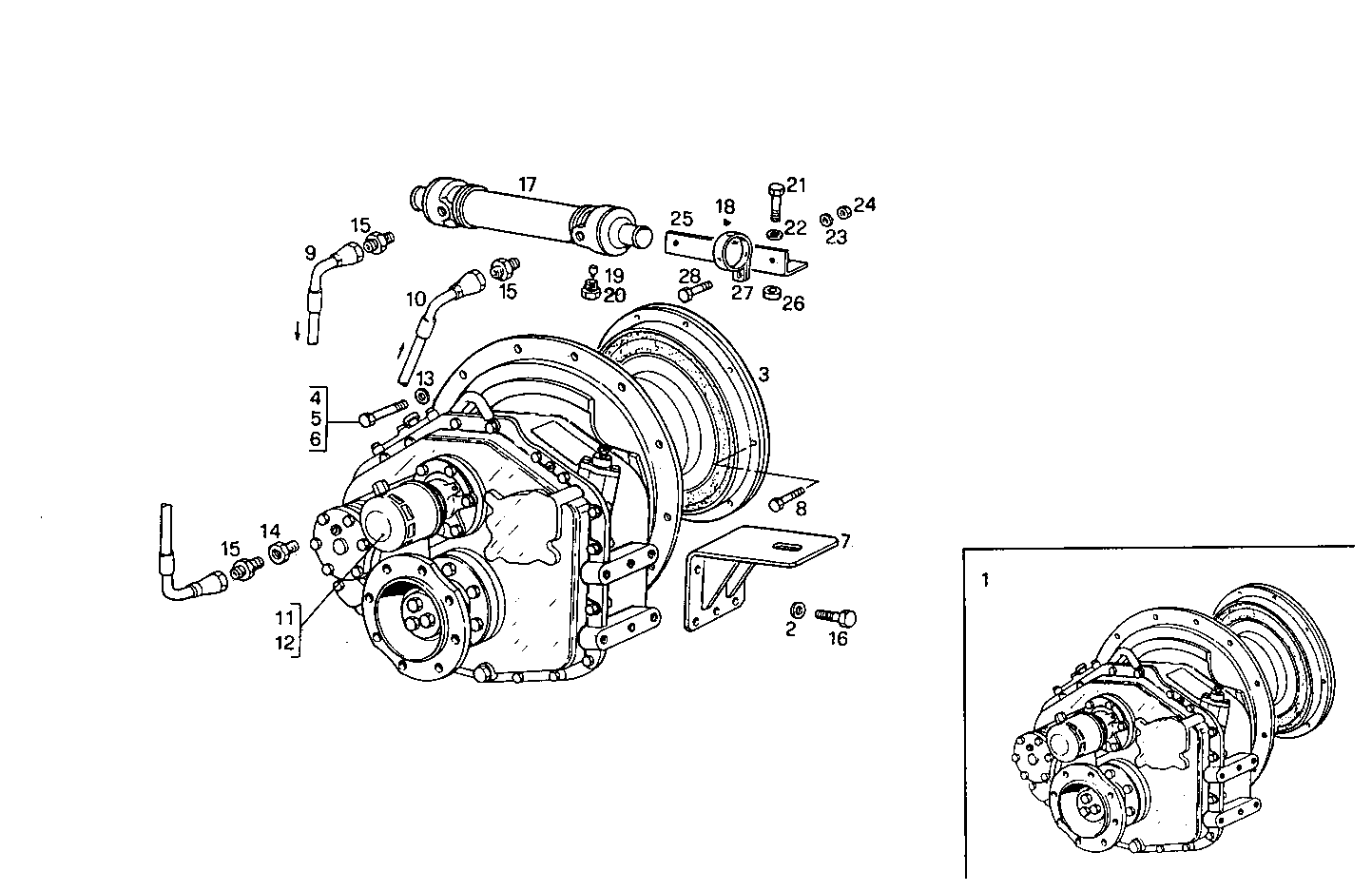

MARINE GEAR ZF-MPM IRM 320 PL-1
8210M22.30 — 8210M22
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8010238 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 11200279 | SPRING WASHER SPRING WASHER | 12 | |
| 3 | 8010445 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 4 | 11306921 | SCREW SCREW | 9 | |
| 5 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 10923621 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 8108819 | SUPPORT SUPPORT | 2 | |
| 8 | 14274621 | LOCKING SCREW LOCKING SCREW | 8 | |
| 9 | 8105620 | HOSE HOSE | 1 | |
| 10 | 8105226 | HOSE HOSE | 1 | |
| 11 | 8111320 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 1 | |
| 12 | 8111321 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 1 | |
| 13 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 14 | 4933508 | PIPE SOCKET PIPE SOCKET | 2 | |
| 15 | 4932262 | PIPE SOCKET PIPE SOCKET | 4 | |
| 16 | 4932875 | SCREW SCREW | 12 | |
| 17 | 8109142 | MARINE GEAR OIL HEAT EXCH MARINE GEAR OIL HEAT EXCH | 1 | |
| 18 | 4565875 | RUBBER PAD RUBBER PAD | 6 | |
| 19 | 8105277 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 20 | 8105276 | PLUG PLUG | 1 | |
| 21 | 16607924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 22 | 11190579 | SPRING WASHER SPRING WASHER | 2 | |
| 23 | 11198679 | SPRING WASHER SPRING WASHER | 2 | |
| 24 | 16101511 | HEXAGON NUT HEXAGON NUT | 2 | |
| 25 | 8105222 | RETAINER RETAINER | 1 | |
| 26 | 4932695 | SPACING BAR SPACING BAR | 2 | |
| 27 | 8104042 | CLIP CLIP | 2 | |
| 28 | 15540421 | SCREW SCREW | 2 |
