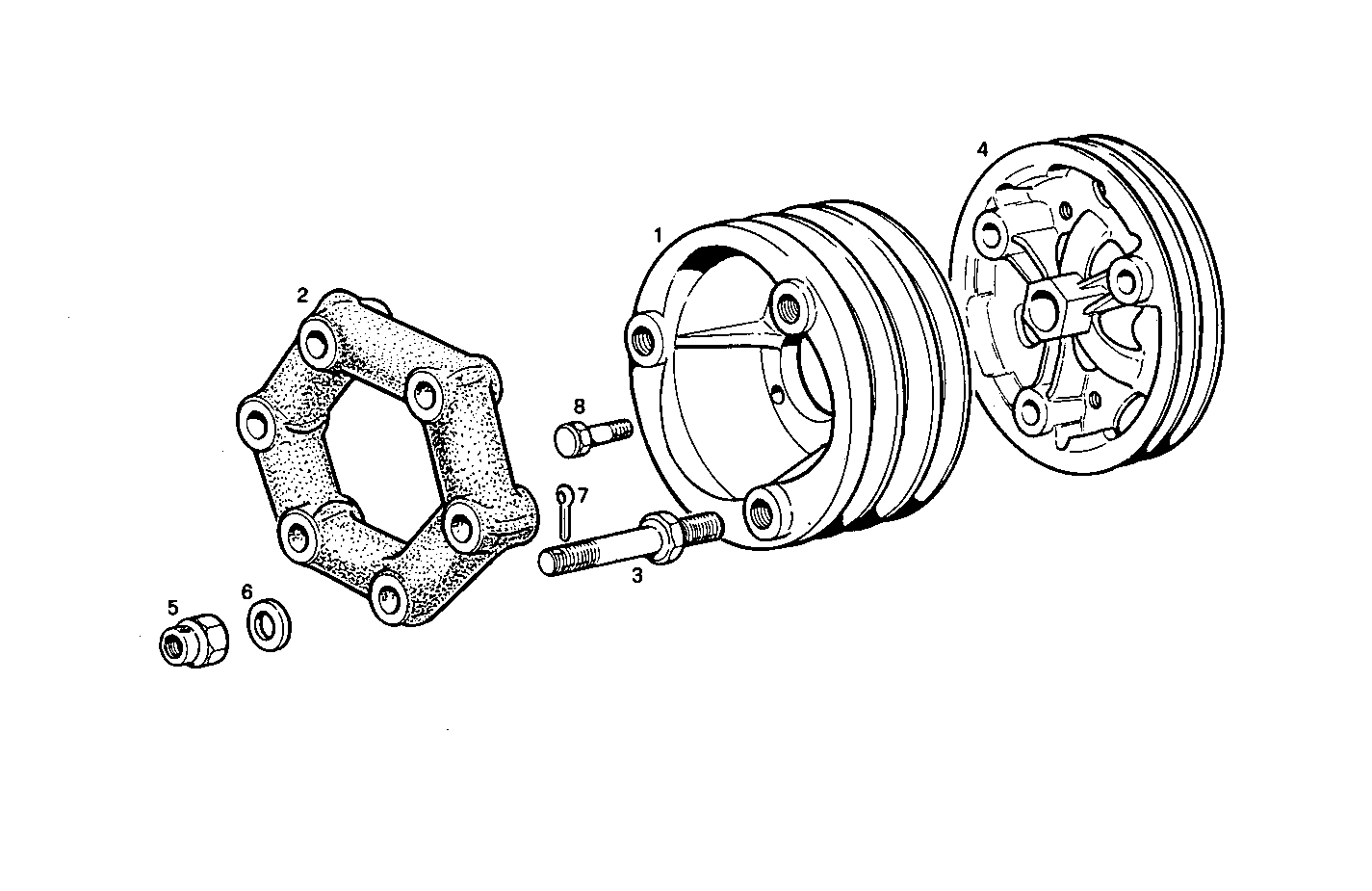

PULLEY ON ENGINE AXIS
8210M22.30 — 8210M22
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4932516 | PULLEY PULLEY | 1 | |
| 2 | 4928505 | FLEXPLATE FLEXPLATE | 1 | |
| 3 | 4932513 | STUD STUD | 3 | |
| 4 | 8100044 | PULLEY PULLEY | 1 | |
| 5 | 17068221 | NUT NUT | 3 | |
| 6 | 10520401 | WASHER WASHER | 3 | |
| 7 | 10733801 | SPLIT PIN SPLIT PIN | 3 | |
| 8 | 14275521 | SCREW SCREW | 6 |
