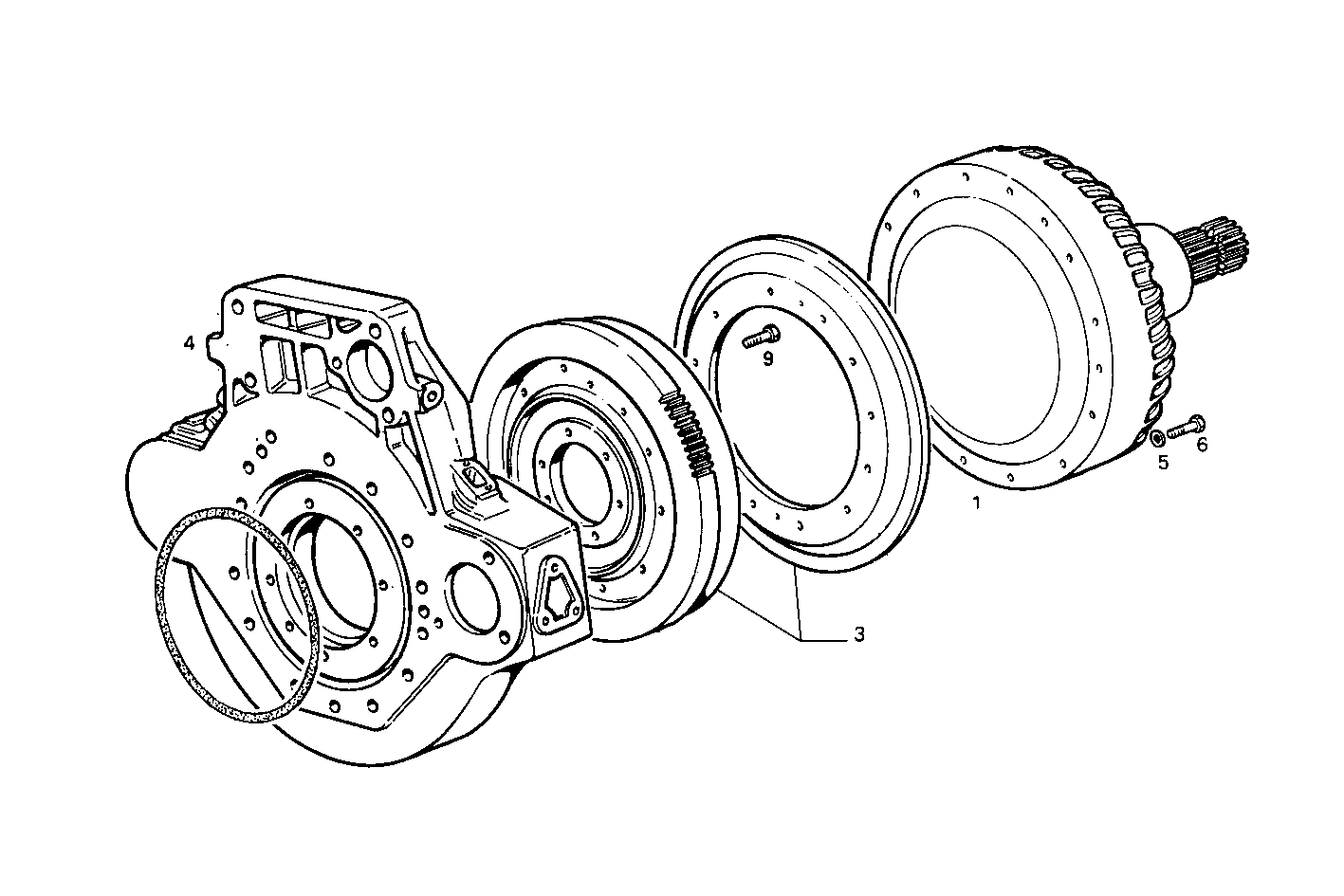

HYDRAULIC COUPLING MIOTTO
8210M22.30A001 — 8210M22
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8025983 | SLIP CLUTCH SLIP CLUTCH | 1 | |
| 3 | 4929110 | FLYWHEEL FLYWHEEL | 1 | |
| 4 | 4928264 | SUPPORT SUPPORT | 1 | |
| 5 | 17800574 | SPRING WASHER SPRING WASHER | 16 | |
| 6 | 16693224 | SCREW SCREW | 16 | |
| 9 | 500391539 | HEXAGON BOLT HEXAGON BOLT | 8 |
