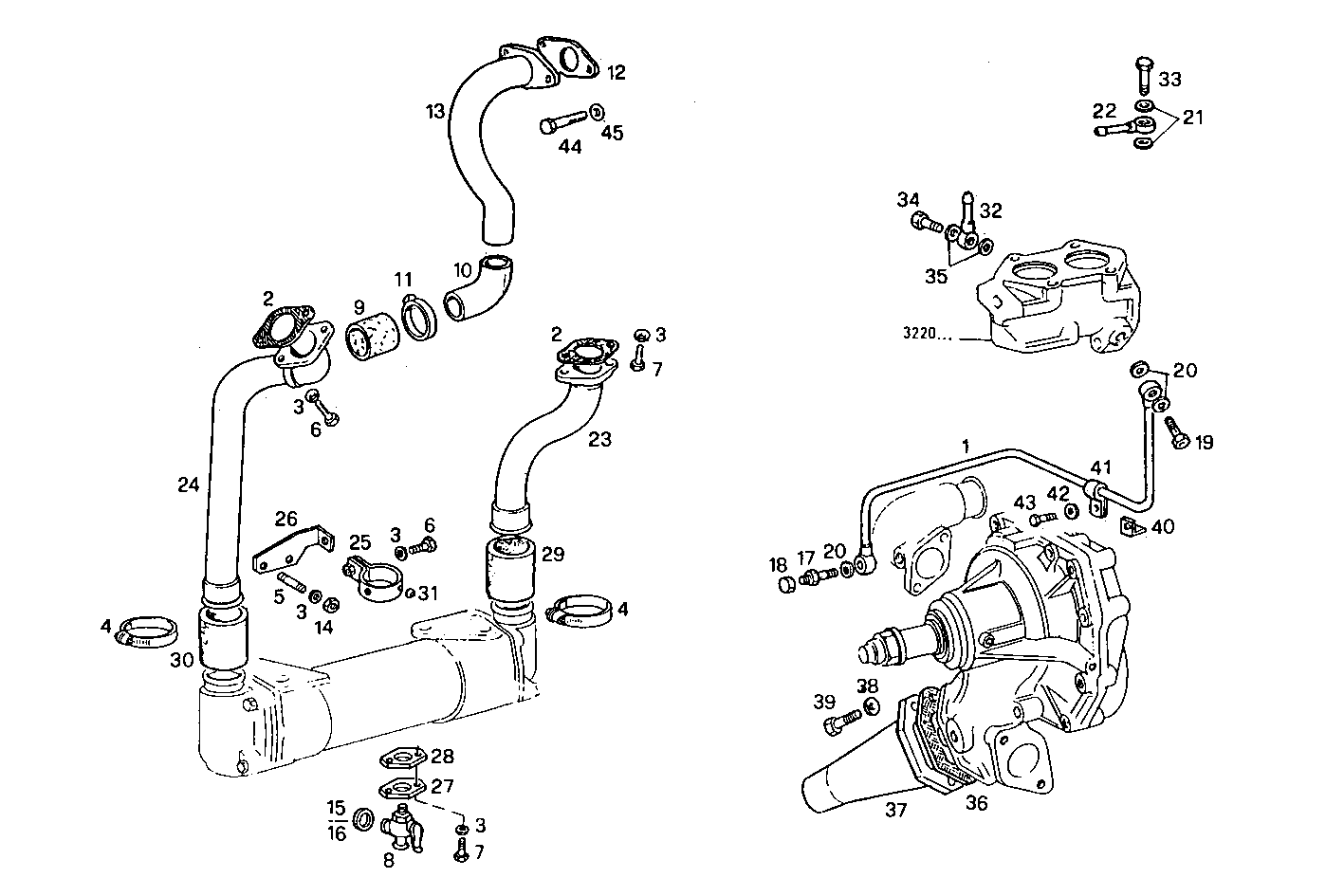

WATER LINES

8210M22.30A001 — 8210M22

Parts List

#	Part No	Name / Description	Qty
1	4966846	WATER PIPE WATER PIPE	1
2	4863951	FLAT ENGINE GKT FLAT ENGINE GKT	2
3	17089574	WASHER WASHER	5
4	17764792	HOSE CLIP HOSE CLIP	4
5	16729224	STUD STUD	2
6	16605734	HEXAGON BOLT HEXAGON BOLT	2
7	16605624	HEXAGON BOLT HEXAGON BOLT	5
8	10849090	DRAIN COCK DRAIN COCK	1
9	8110617	RUBBER SLEEVE RUBBER SLEEVE	1
10	4919714	WATER HOSE WATER HOSE	1
11	17764792	HOSE CLIP HOSE CLIP	2
12	4918835	GASKET GASKET	1
13	8114097	WATER PIPE WATER PIPE	1
14	17037931	HEXAGON NUT HEXAGON NUT	2
15	10278460	SEAL GASKET SEAL GASKET	1
16	10278560	SEAL GASKET SEAL GASKET	1
17	8012402	SCREW CONNECTOR SCREW CONNECTOR	1
18	10183317	LOCK PLUG LOCK PLUG	1
20	4858609	WASHER WASHER	5
21	4858607	WASHER WASHER	2
22	98434018	THREADED UNION THREADED UNION	1
23	4654000	WATER PIPE WATER PIPE	1
24	8114104	WATER PIPE WATER PIPE	1
25	4640545	CLIP CLIP	1
26	4830268	FASTENING BRACKET FASTENING BRACKET	1
27	4872744	COVER COVER	1
28	4863948	FLAT ENGINE GKT FLAT ENGINE GKT	1
29	4787290	WATER HOSE WATER HOSE	1
30	98421381	WATER HOSE WATER HOSE	1
31	4565875	RUBBER PAD RUBBER PAD	3
32	4671701	SWIVEL COUPLING SWIVEL COUPLING	1
33	8009696	SCREW CONNECTOR SCREW CONNECTOR	1
34	8015164	SCREW CONNECTOR SCREW CONNECTOR	1
35	10284460	SEAL GASKET SEAL GASKET	2
36	98451498	FLAT ENGINE GKT FLAT ENGINE GKT	1
37	98450711	WATER PIPE WATER PIPE	1
38	17090274	WASHER WASHER	2
39	15004021	HEXAGON BOLT HEXAGON BOLT	2
40	4617086	RETAINER RETAINER	1
41	10441190	PIPE CLIP PIPE CLIP	1
42	17088474	WASHER WASHER	1
43	10979430	SCREW SCREW	1
44	16605524	HEXAGON BOLT HEXAGON BOLT	2
45	17089474	SPRING WASHER SPRING WASHER	2
