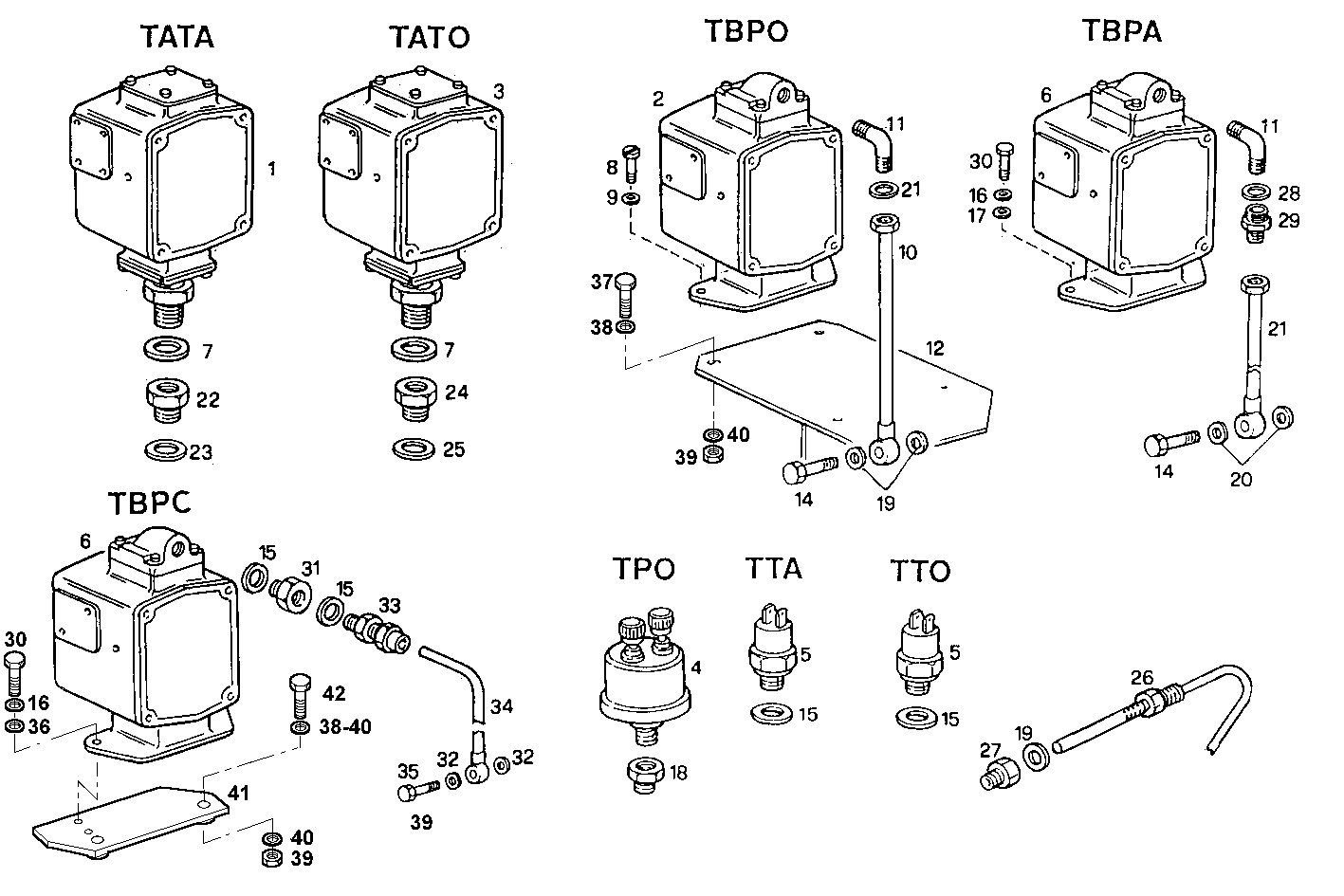

8210M22/8210M22.30A003/SENDER UNITS FOR GENERATOR UNIT

SENDER UNITS FOR GENERATOR UNIT

8210M22.30A003 — 8210M22

Parts List

#	Part No	Name / Description	Qty
1	8110742	TRANSMITTER TRANSMITTER	1
2	8110739	TRANSMITTER TRANSMITTER	1
3	8111450	TRANSMITTER TRANSMITTER	1
4	8100417	TRANSMITTER TRANSMITTER	2
5	8100418	TRANSMITTER TRANSMITTER	2
6	8015707	TRANSMITTER TRANSMITTER	2
7	11271460	GASKET GASKET	2
8	17133314	SCREW SCREW	2
9	17088474	WASHER WASHER	2
10	8029261	OIL LINE OIL LINE	1
11	8111261	PIPE SOCKET PIPE SOCKET	2
12	8111439	RETAINER RETAINER	1
14	4864082	BANJO BOLT BANJO BOLT	2
15	4858608	SEAL GASKET SEAL GASKET	4
16	17094504	WASHER WASHER	4
17	17094534	WASHER WASHER	2
18	4929576	PIPE SOCKET PIPE SOCKET	1
19	4858607	WASHER WASHER	3
20	98474306	WASHER WASHER	2
21	8029262	WATER PIPE WATER PIPE	1
22	8021213	PIPE SOCKET PIPE SOCKET	1
23	98429281	SEAL GASKET SEAL GASKET	1
24	8111085	PIPE SOCKET PIPE SOCKET	1
25	10296260	SEAL GASKET SEAL GASKET	1
26	8022117	TRANSMITTER TRANSMITTER	1
27	4928337	PIPE SOCKET PIPE SOCKET	1
28	4858609	WASHER WASHER	1
29	4935023	PIPE SOCKET PIPE SOCKET	1
30	16608624	SCREW SCREW	4
31	8111316	PIPE SOCKET PIPE SOCKET	1
32	10284460	SEAL GASKET SEAL GASKET	2
33	4724015	SCREW CONNECTOR SCREW CONNECTOR	1
34	8029263	FUEL LINE FUEL LINE	1
35	4864081	SCREW CONNECTOR SCREW CONNECTOR	1
36	17494534	WASHER WASHER	2
37	15214224	SCREW SCREW	2
38	17094914	WASHER WASHER	4
39	17037931	HEXAGON NUT HEXAGON NUT	4
40	17089474	SPRING WASHER SPRING WASHER	4
41	8029264	RETAINER RETAINER	1
42	16605934	HEXAGON BOLT HEXAGON BOLT	2
