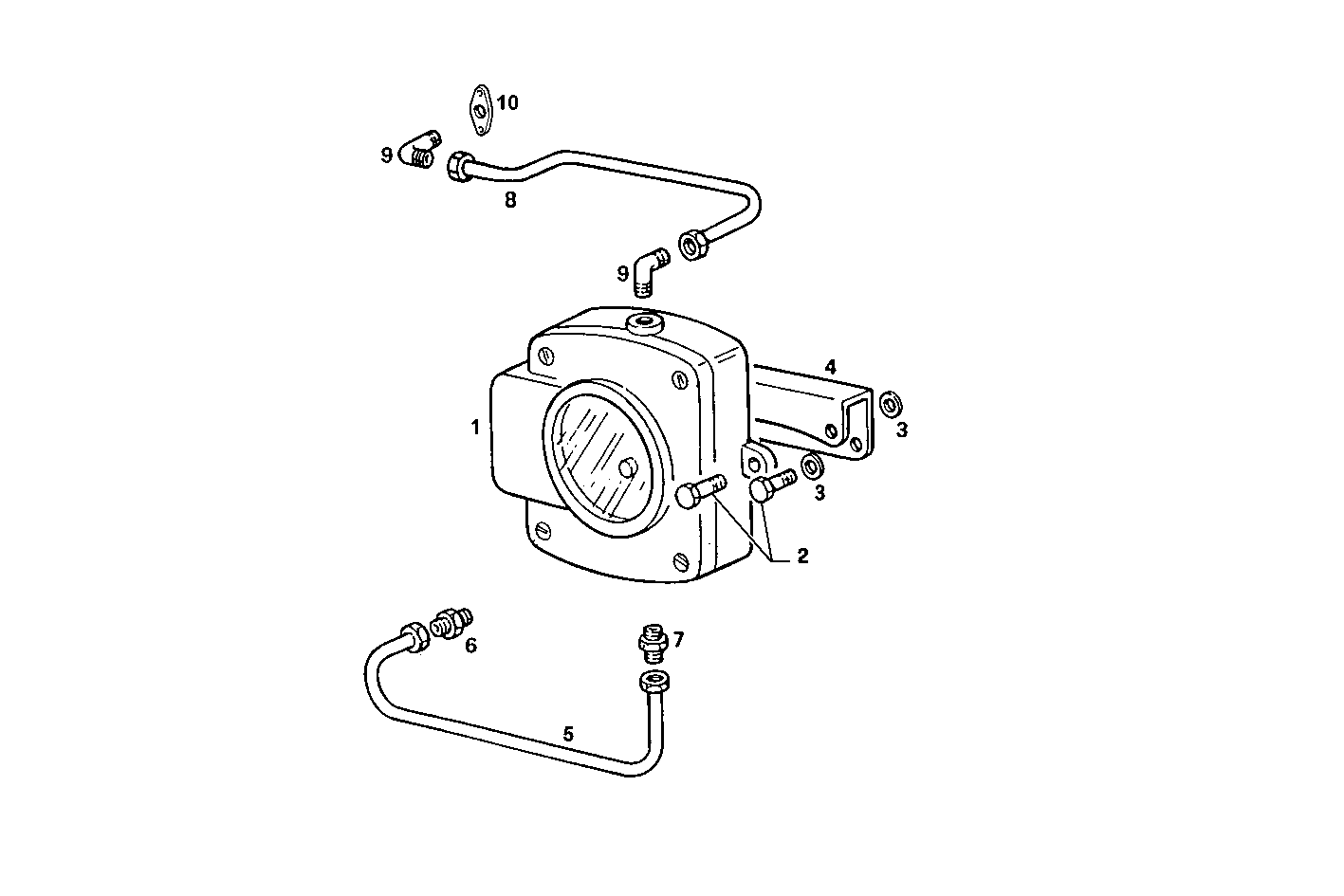

SENDER UNITS FOR WATER LEVEL - 12/24V
8210M22.30A003 — 8210M22
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8111513 | TRANSMITTER TRANSMITTER | 1 | |
| 2 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 3 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 4 | 8029269 | RETAINER RETAINER | 1 | |
| 5 | 8029032 | WATER PIPE WATER PIPE | 1 | |
| 6 | 8029555 | PIPE SOCKET PIPE SOCKET | 1 | |
| 7 | 11219711 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 8 | 8029033 | WATER PIPE WATER PIPE | 1 | |
| 9 | 8111410 | PIPE SOCKET PIPE SOCKET | 2 | |
| 10 | 8029285 | COVER COVER | 1 |
