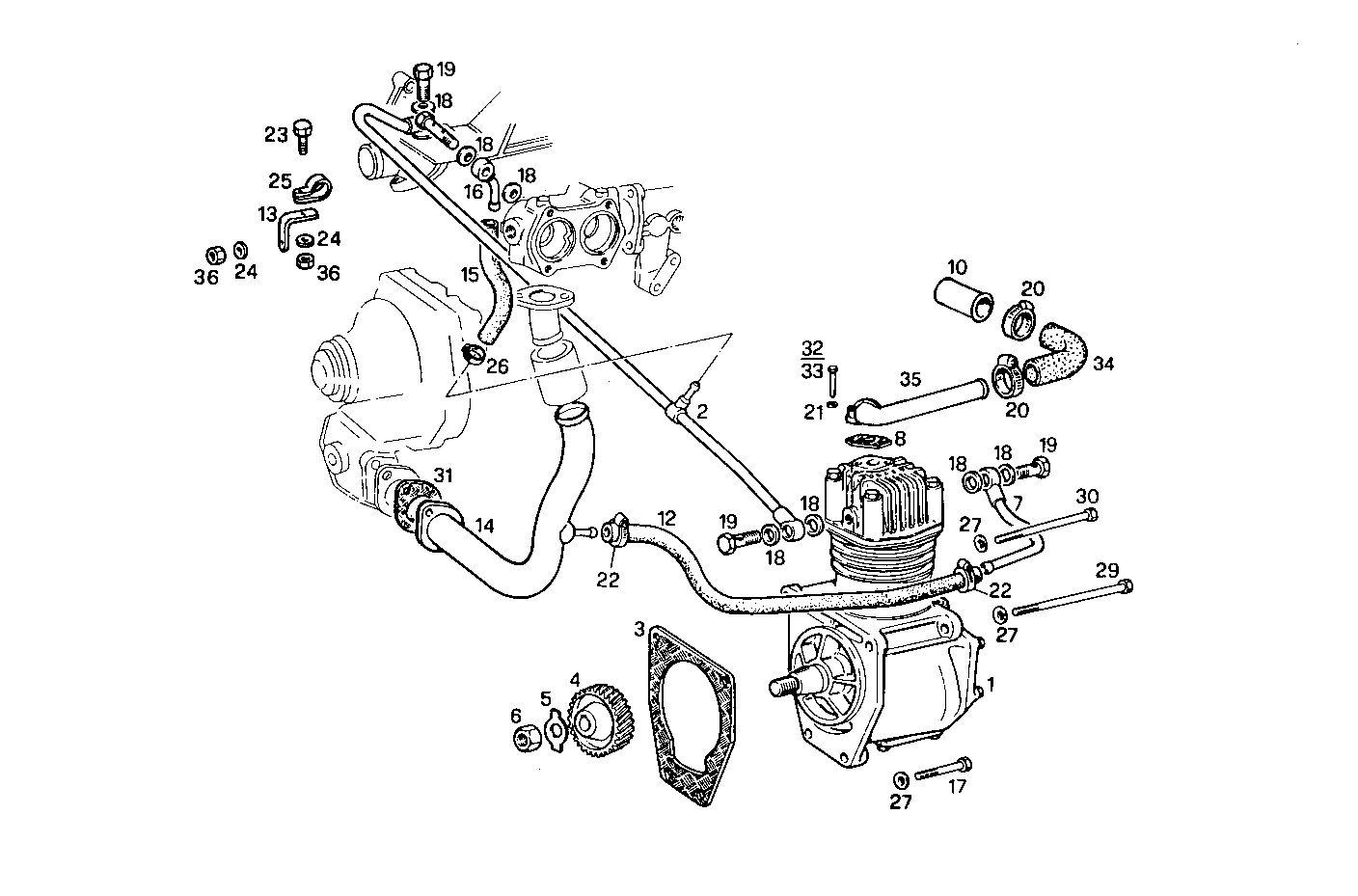

AIR COMPRESSOR
8210Si02.00 — 8210Si02
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99440235 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 2 | 98451992 | WATER PIPE WATER PIPE | 1 | |
| 3 | 4864032 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 4710274 | COMP. DRIVE GEAR COMP. DRIVE GEAR | 1 | |
| 5 | 4709364 | LOCKING PLATE LOCKING PLATE | 1 | |
| 6 | 99471892 | HEXAGON NUT HEXAGON NUT | 1 | |
| 7 | 98451993 | WATER PIPE WATER PIPE | 1 | |
| 8 | 4513714 | GASKET GASKET | 1 | |
| 10 | 4734507 | THREADED UNION THREADED UNION | 1 | |
| 12 | 4787287 | WATER HOSE WATER HOSE | 1 | |
| 13 | 4930333 | RETAINER RETAINER | 1 | |
| 14 | 98450706 | WATER PIPE WATER PIPE | 1 | |
| 15 | 4787286 | WATER HOSE WATER HOSE | 1 | |
| 16 | 4756465 | WATER PIPE WATER PIPE | 1 | |
| 17 | 11234721 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 18 | 4858609 | WASHER WASHER | 6 | |
| 19 | 4864084 | BANJO BOLT BANJO BOLT | 3 | |
| 20 | 12176990 | CLIP CLIP | 2 | |
| 21 | 11194079 | SPRING WASHER SPRING WASHER | 4 | |
| 22 | 12173690 | CLIP CLIP | 2 | |
| 23 | 16043221 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 24 | 11193879 | SPRING WASHER SPRING WASHER | 2 | |
| 25 | 4760226 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 26 | 12179490 | CLIP CLIP | 2 | |
| 27 | 11198379 | SPRING WASHER SPRING WASHER | 4 | |
| 29 | 15972221 | SCREW SCREW | 1 | |
| 30 | 98434330 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 31 | 4864028 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 32 | 16500824 | SCREW SCREW | 1 | |
| 33 | 16501324 | SCREW SCREW | 1 | |
| 34 | 4605529 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 35 | 8114245 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 36 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 |
