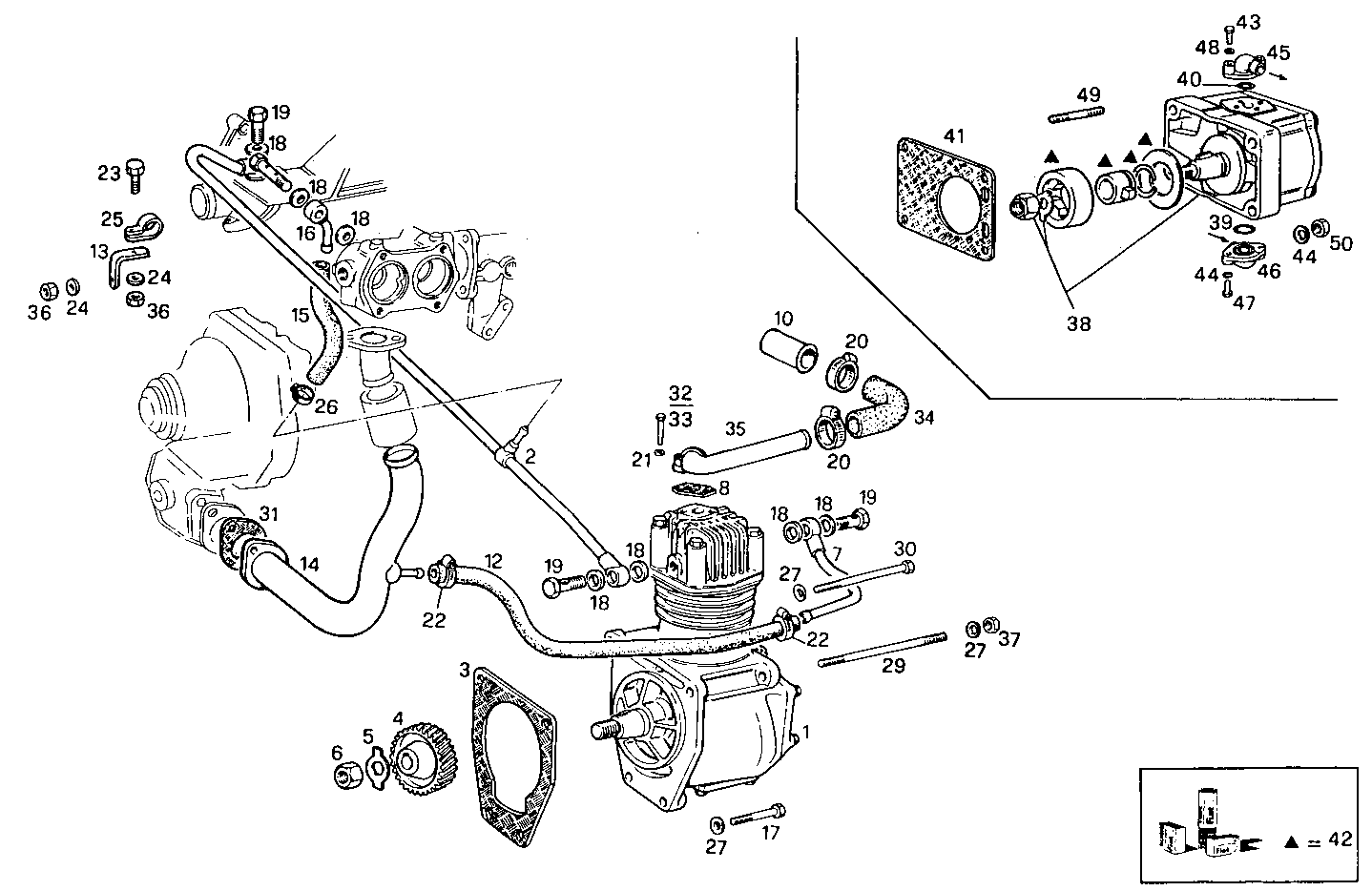

AIR COMPRESSOR

8210Si02.00 — 8210Si02

Parts List

#	Part No	Name / Description	Qty
1	99440226	AIR COMPRESSOR AIR COMPRESSOR	1
2	98451992	WATER PIPE WATER PIPE	1
3	4710288	FLAT ENGINE GKT FLAT ENGINE GKT	1
4	4710274	COMP. DRIVE GEAR COMP. DRIVE GEAR	1
5	4709364	LOCKING PLATE LOCKING PLATE	1
6	99471892	HEXAGON NUT HEXAGON NUT	1
7	98451993	WATER PIPE WATER PIPE	1
8	4513714	GASKET GASKET	1
10	4734507	THREADED UNION THREADED UNION	1
11	4724973	RUBBER SLEEVE RUBBER SLEEVE	1
12	4787287	WATER HOSE WATER HOSE	1
13	4930333	RETAINER RETAINER	1
14	98450706	WATER PIPE WATER PIPE	1
15	4787286	WATER HOSE WATER HOSE	1
16	4756465	WATER PIPE WATER PIPE	1
17	11234721	HEXAGON BOLT HEXAGON BOLT	2
18	4858609	WASHER WASHER	6
19	4864084	BANJO BOLT BANJO BOLT	3
20	12176990	CLIP CLIP	2
21	11194079	SPRING WASHER SPRING WASHER	4
22	12173690	CLIP CLIP	2
23	16043221	HEXAGON BOLT HEXAGON BOLT	1
24	11193879	SPRING WASHER SPRING WASHER	2
25	4760226	FASTENING BRACKET FASTENING BRACKET	1
26	12179490	CLIP CLIP	2
27	11198379	SPRING WASHER SPRING WASHER	4
28	16043521	SCREW SCREW	2
29	13953721	STUD STUD	1
30	98434330	HEXAGON BOLT HEXAGON BOLT	1
31	4864028	FLAT ENGINE GKT FLAT ENGINE GKT	1
32	16500824	SCREW SCREW	1
33	16501324	SCREW SCREW	1
34	4605529	RUBBER SLEEVE RUBBER SLEEVE	1
35	8114245	AIR PIPE/DUCT AIR PIPE/DUCT	1
36	17037931	HEXAGON NUT HEXAGON NUT	2
37	12164711	HEXAGON NUT HEXAGON NUT	1
38	5129478	OIL PUMP-STEERING OIL PUMP-STEERING	1
39	4503785	WASHER WASHER	1
40	17281781	O-RING O-RING	1
41	4850986	FLAT ENGINE GKT FLAT ENGINE GKT	1
42	8090343	KIT-HYDRAULIC PUMP KIT-HYDRAULIC PUMP	1
43	14305521	SCREW SCREW	1
44	11197779	SPRING WASHER SPRING WASHER	6
45	4670953	PIPE SOCKET PIPE SOCKET	1
46	4690715	PIPE SOCKET PIPE SOCKET	1
47	14306621	SCREW SCREW	2
48	11198079	SPRING WASHER SPRING WASHER	2
49	10980821	STUD STUD	4
50	15896211	HEXAGON NUT HEXAGON NUT	4
