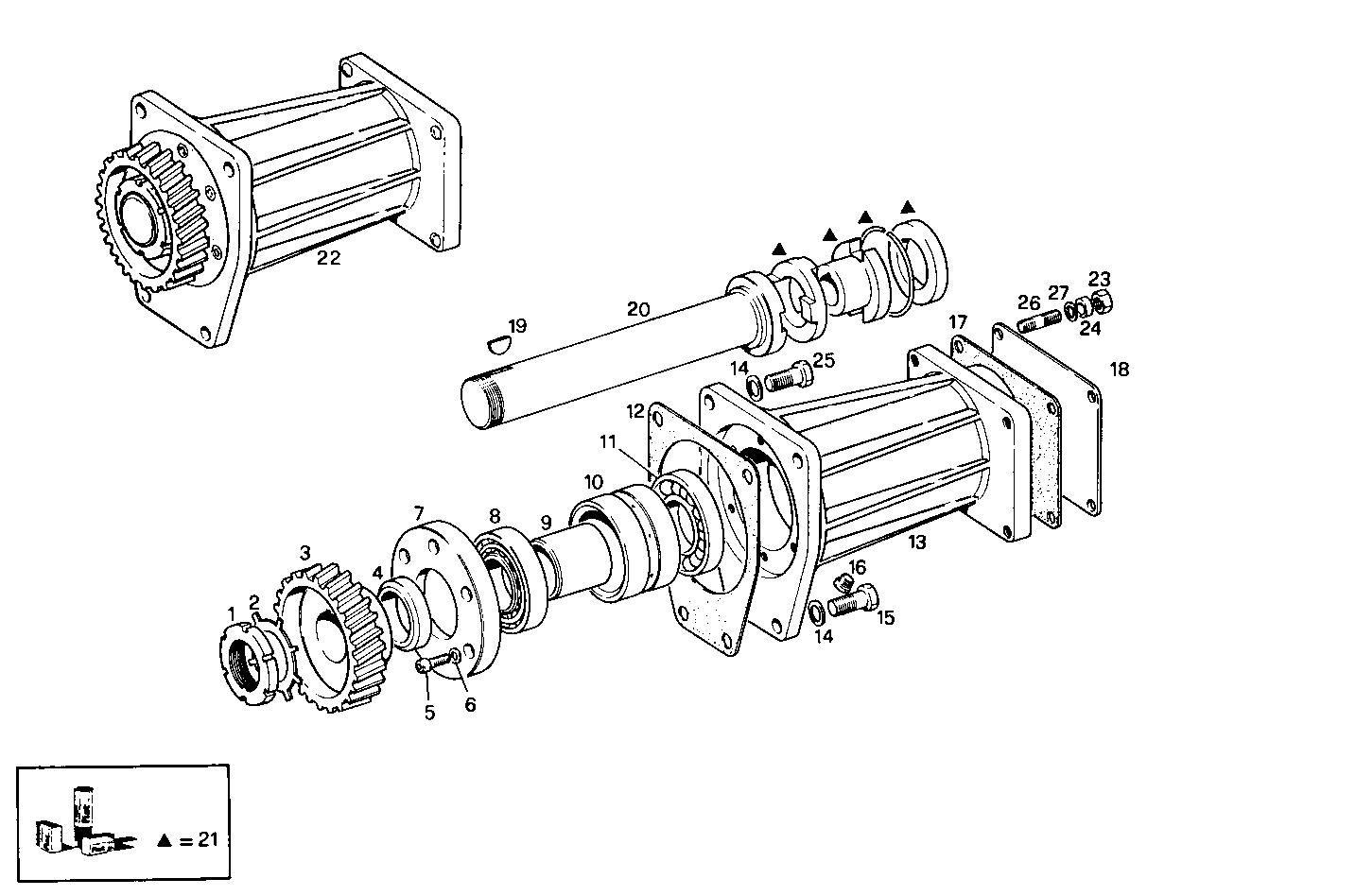

ARRANGED FOR HYDRAULIC PUMP
8210Si02.00 — 8210Si02
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 10214110 | GROOVED NUT GROOVED NUT | 1 | |
| 2 | 4513025 | LOCKING PLATE LOCKING PLATE | 1 | |
| 3 | 8105206 | GEAR GEAR | 1 | |
| 4 | 61586413 | SPACING BAR SPACING BAR | 1 | |
| 5 | 14305321 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 6 | |
| 6 | 11197779 | SPRING WASHER SPRING WASHER | 6 | |
| 7 | 61586412 | COVER COVER | 1 | |
| 8 | 26798470 | DRIVE BEARING DRIVE BEARING | 1 | |
| 9 | 61586410 | SPACING BAR SPACING BAR | 1 | |
| 10 | 61586411 | SPACING BAR SPACING BAR | 1 | |
| 11 | 20705250 | DRIVE BEARING DRIVE BEARING | 1 | |
| 12 | 4864032 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 13 | 61586408 | SUPPORT SUPPORT | 1 | |
| 14 | 11198379 | SPRING WASHER SPRING WASHER | 4 | |
| 15 | 11307021 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 16 | 61584412 | LOCK PLUG LOCK PLUG | 1 | |
| 17 | 4863974 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 18 | 61585907 | COVER COVER | 1 | |
| 19 | 10205920 | KEY KEY | 1 | |
| 20 | 61586409 | SHAFT SHAFT | 1 | |
| 21 | 8090978 | KIT-HYDRAULIC PUMP KIT-HYDRAULIC PUMP | 1 | |
| 22 | 8105205 | SUPPORT SUPPORT | 1 | |
| 23 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 24 | 13605811 | SPACER SPACER | 4 | |
| 25 | 11227921 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 26 | 13543721 | STUD STUD | 4 | |
| 27 | 11193879 | SPRING WASHER SPRING WASHER | 4 |
