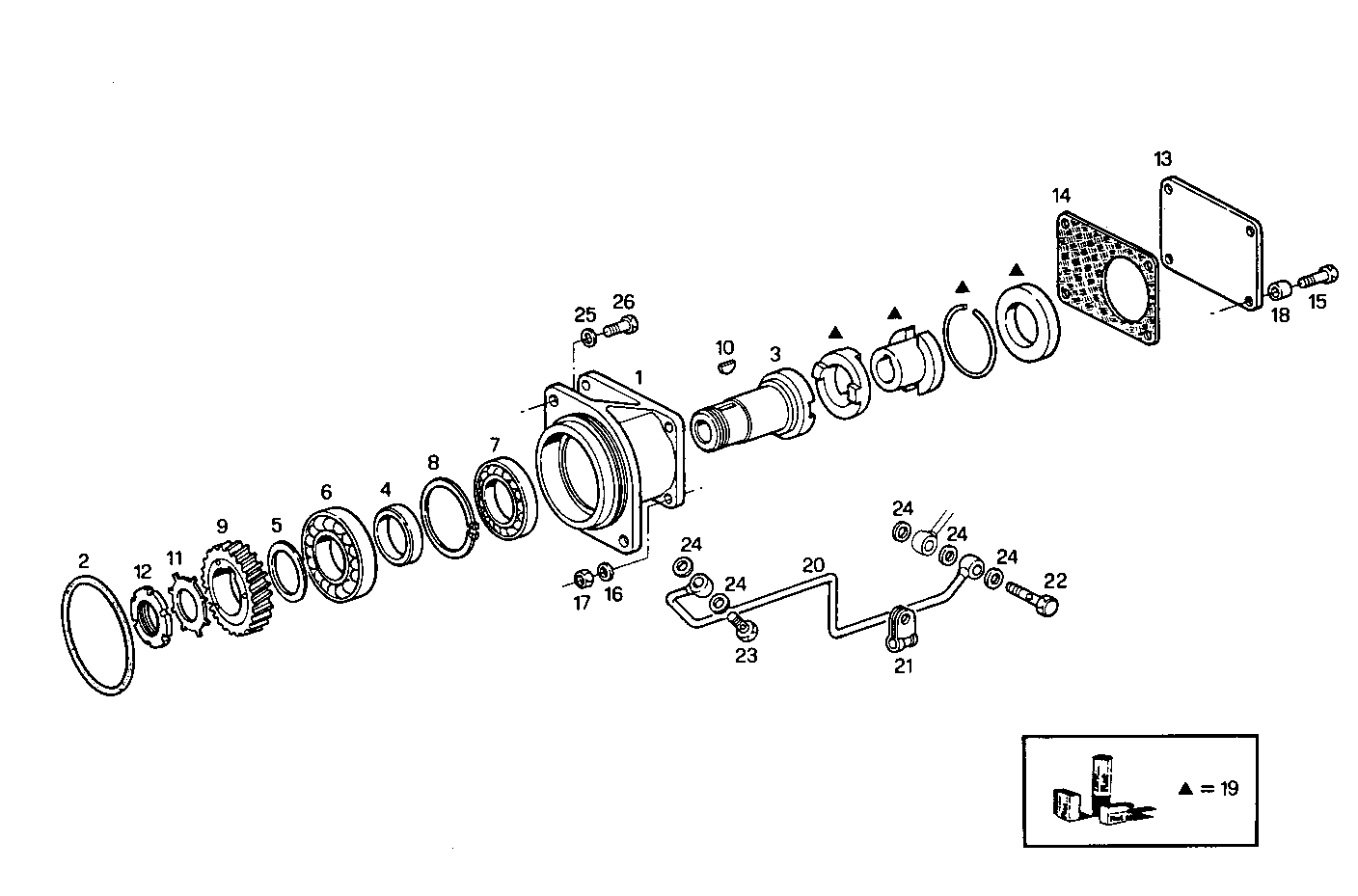

ARRANGED FOR HYDRAULIC PUMP
8210Si02.00 — 8210Si02
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8112253 | SUPPORT SUPPORT | 1 | |
| 2 | 61317171 | O-RING O-RING | 1 | |
| 3 | 8112240 | SHAFT SHAFT | 1 | |
| 4 | 8112244 | SPACING BAR SPACING BAR | 1 | |
| 5 | 8112245 | SPACING BAR SPACING BAR | 1 | |
| 6 | 8863034 | DRIVE BEARING DRIVE BEARING | 1 | |
| 7 | 8863111 | DRIVE BEARING DRIVE BEARING | 1 | |
| 8 | 11061376 | CIRCLIP CIRCLIP | 1 | |
| 9 | 4636971 | GEAR GEAR | 1 | |
| 10 | 10205920 | KEY KEY | 1 | |
| 11 | 4513025 | LOCKING PLATE LOCKING PLATE | 1 | |
| 12 | 10214110 | GROOVED NUT GROOVED NUT | 1 | |
| 13 | 61585907 | COVER COVER | 1 | |
| 14 | 4863974 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 15 | 14306721 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 4 | |
| 16 | 11193879 | SPRING WASHER SPRING WASHER | 4 | |
| 17 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 18 | 13605811 | SPACER SPACER | 4 | |
| 19 | 8090978 | KIT-HYDRAULIC PUMP KIT-HYDRAULIC PUMP | 1 | |
| 20 | 8012822 | OIL LINE OIL LINE | 1 | |
| 21 | 4656139 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 22 | 4735292 | THREADED UNION THREADED UNION | 1 | |
| 23 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 24 | 4858606 | GASKET GASKET | 5 | |
| 25 | 11198379 | SPRING WASHER SPRING WASHER | 2 | |
| 26 | 15970621 | SCREW SCREW | 2 |
