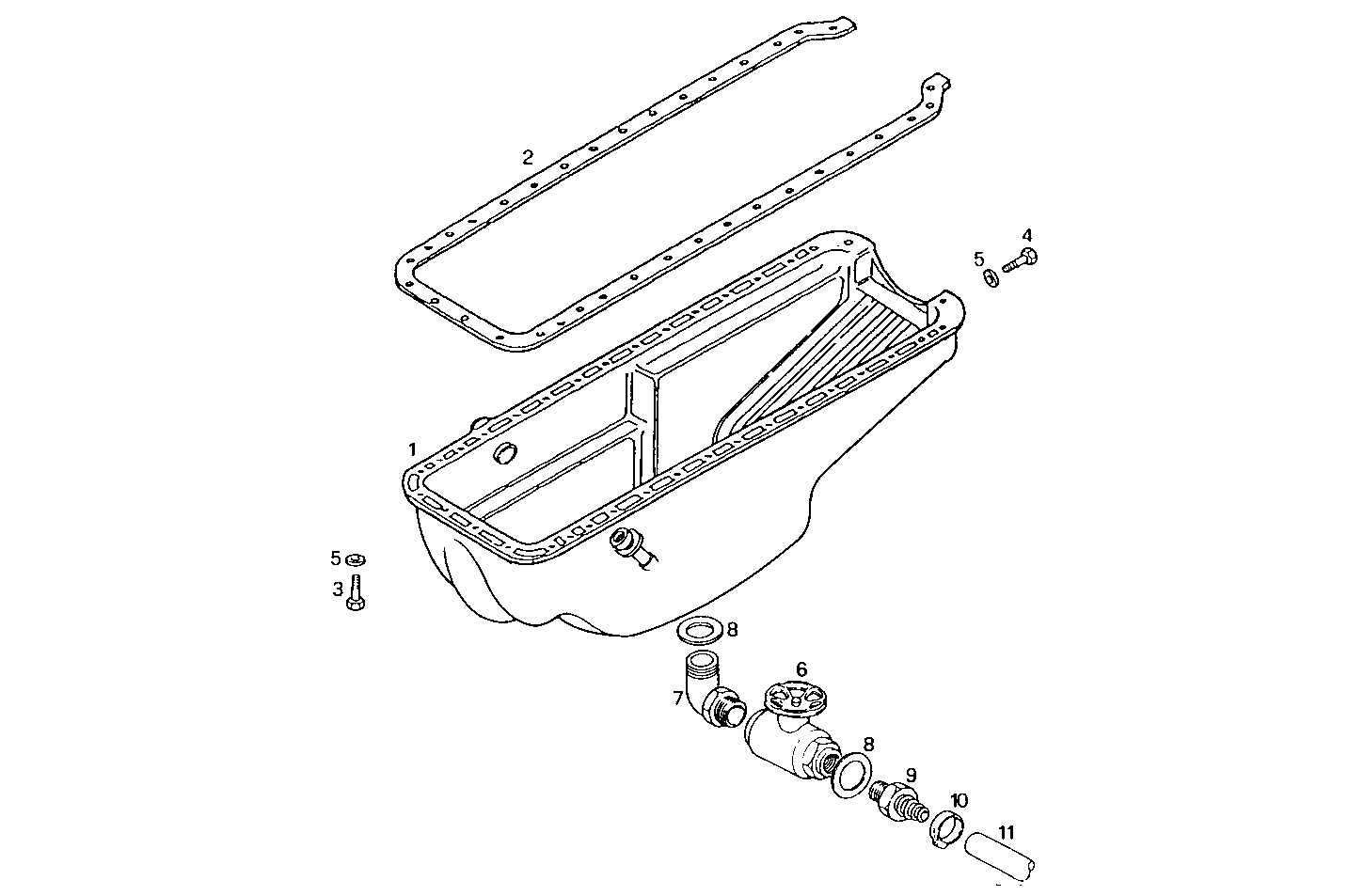

DRAIN COCK
8210Si02.00 — 8210Si02
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4638299 | OIL SUMP OIL SUMP | 1 | |
| 2 | 98493262 | OIL SUMP GASKET OIL SUMP GASKET | 1 | |
| 3 | 10929824 | HEXAGON BOLT HEXAGON BOLT | 36 | |
| 4 | 10923624 | SCREW SCREW | 5 | |
| 5 | 17090174 | SPRING WASHER SPRING WASHER | 41 | |
| 6 | 4930837 | RETAINER COCK RETAINER COCK | 1 | |
| 7 | 4930839 | PIPE SOCKET PIPE SOCKET | 1 | |
| 8 | 11271460 | GASKET GASKET | 2 | |
| 9 | 4930839 | PIPE SOCKET PIPE SOCKET | 1 | |
| 10 | 17764592 | CLIP CLIP | 1 | |
| 11 | 4931236 | OIL HOSE OIL HOSE | 1 |
