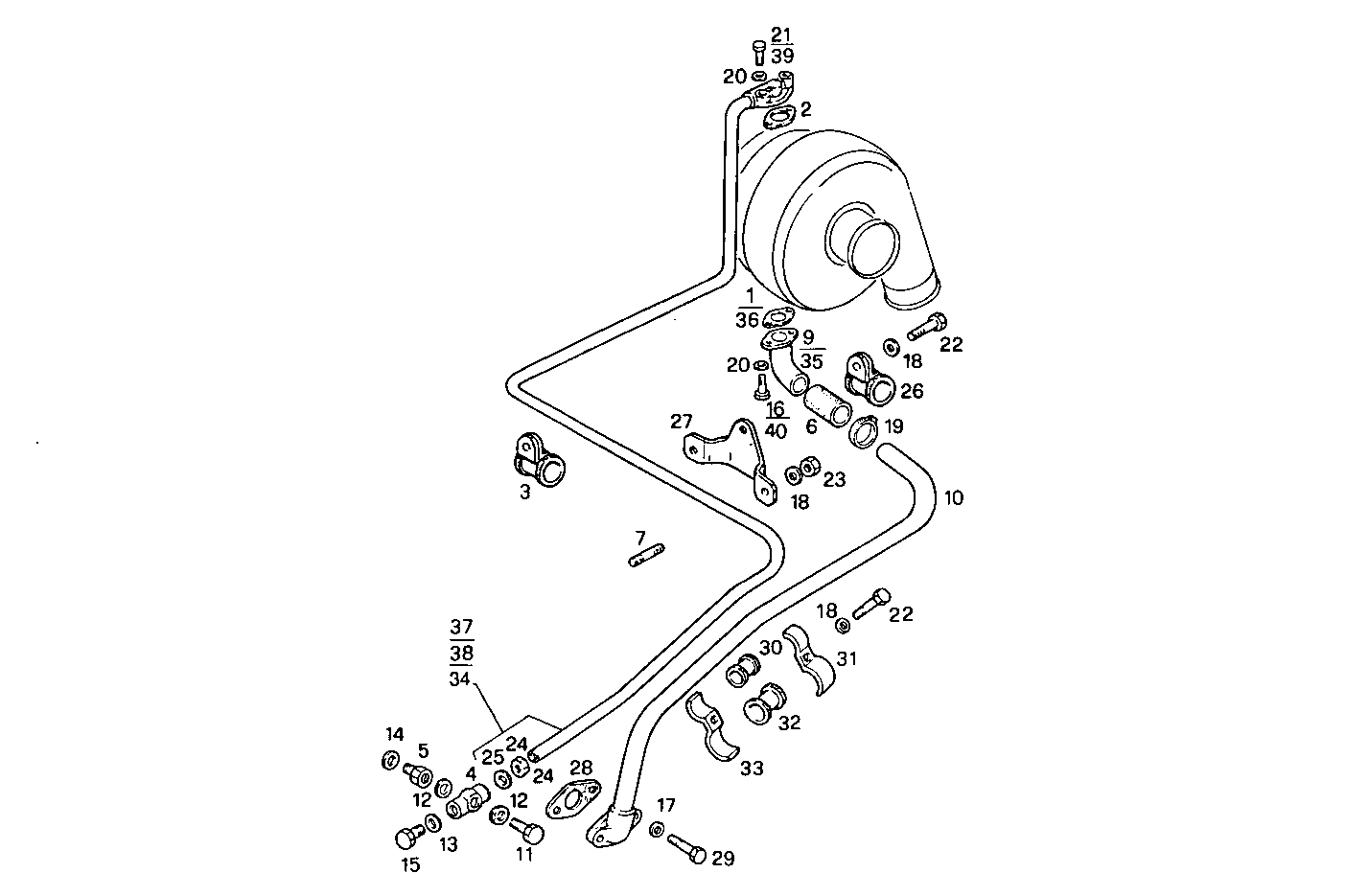

LUBE OIL LINES
8210Si02.00 — 8210Si02
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4863965 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 2 | 4863967 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 4627116 | CLIP CLIP | 1 | |
| 4 | 4745272 | THREADED UNION THREADED UNION | 1 | |
| 5 | 4682418 | THREADED UNION THREADED UNION | 1 | |
| 6 | 4865231 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 7 | 13543321 | STUD STUD | 2 | |
| 9 | 98420285 | OIL LINE OIL LINE | 1 | |
| 10 | 4752187 | PIPE PIPE | 1 | |
| 11 | 10182614 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 12 | 10257460 | SEAL GASKET SEAL GASKET | 2 | |
| 13 | 10282460 | SEAL GASKET SEAL GASKET | 1 | |
| 14 | 10296260 | SEAL GASKET SEAL GASKET | 1 | |
| 15 | 10300611 | LOCK PLUG LOCK PLUG | 1 | |
| 16 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 11198374 | SPRING WASHER SPRING WASHER | 2 | |
| 18 | 11198074 | SPRING WASHER SPRING WASHER | 4 | |
| 19 | 17764792 | HOSE CLIP HOSE CLIP | 4 | |
| 20 | 17798274 | SPRING WASHER SPRING WASHER | 4 | |
| 21 | 16690824 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 1 | |
| 22 | 16043021 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 23 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 24 | 16507011 | NUT NUT | 1 | |
| 25 | 16507711 | WASHER WASHER | 1 | |
| 26 | 4626903 | CLIP CLIP | 1 | |
| 27 | 4817878 | SADDLE PLATE SADDLE PLATE | 1 | |
| 28 | 4863966 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 29 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 30 | 4626900 | CLIP CLIP | 1 | |
| 31 | 4694067 | RETAINER RETAINER | 1 | |
| 32 | 4626901 | CLIP CLIP | 1 | |
| 33 | 4694068 | RETAINER RETAINER | 1 | |
| 34 | 98463018 | OIL LINE OIL LINE | 1 | |
| 35 | 98463020 | OIL LINE OIL LINE | 1 | |
| 36 | 61317794 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 37 | 4817881 | OIL LINE OIL LINE | 1 | |
| 38 | 4778150 | OIL LINE OIL LINE | 1 | |
| 39 | 16690924 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 1 | |
| 40 | 4873305 | SCREW SCREW | 2 |
