TRIDISC INDUSTRIAL CLUTCH
8210Si02.00 — 8210Si02

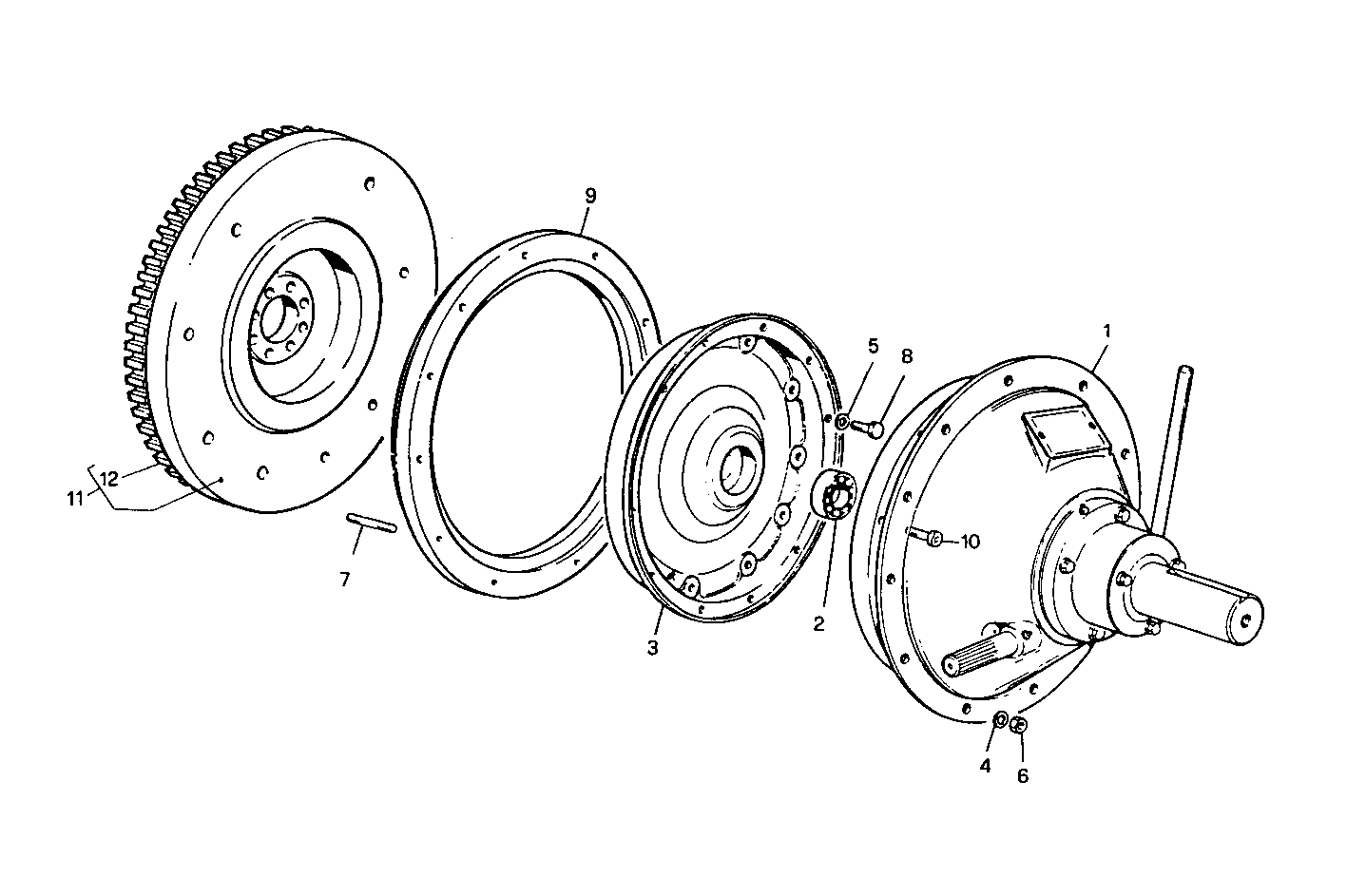

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8015238 | CLUTCH CLUTCH | 1 | |
| 2 | 8005041 | DRIVE BEARING DRIVE BEARING | 1 | |
| 3 | 4931864 | FLANGE FLANGE | 1 | |
| 4 | 11198379 | SPRING WASHER SPRING WASHER | 12 | |
| 5 | 11198679 | SPRING WASHER SPRING WASHER | 12 | |
| 6 | 12164711 | HEXAGON NUT HEXAGON NUT | 12 | |
| 7 | 13454521 | STUD STUD | 12 | |
| 8 | 15540621 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 9 | 8110185 | SPACING BAR SPACING BAR | 1 | |
| 10 | 14332520 | SCREW SCREW | 8 | |
| 11 | 8104517 | FLYWHEEL FLYWHEEL | 1 | |
| 12 | 4651279 | RING GEAR RING GEAR | 1 |
