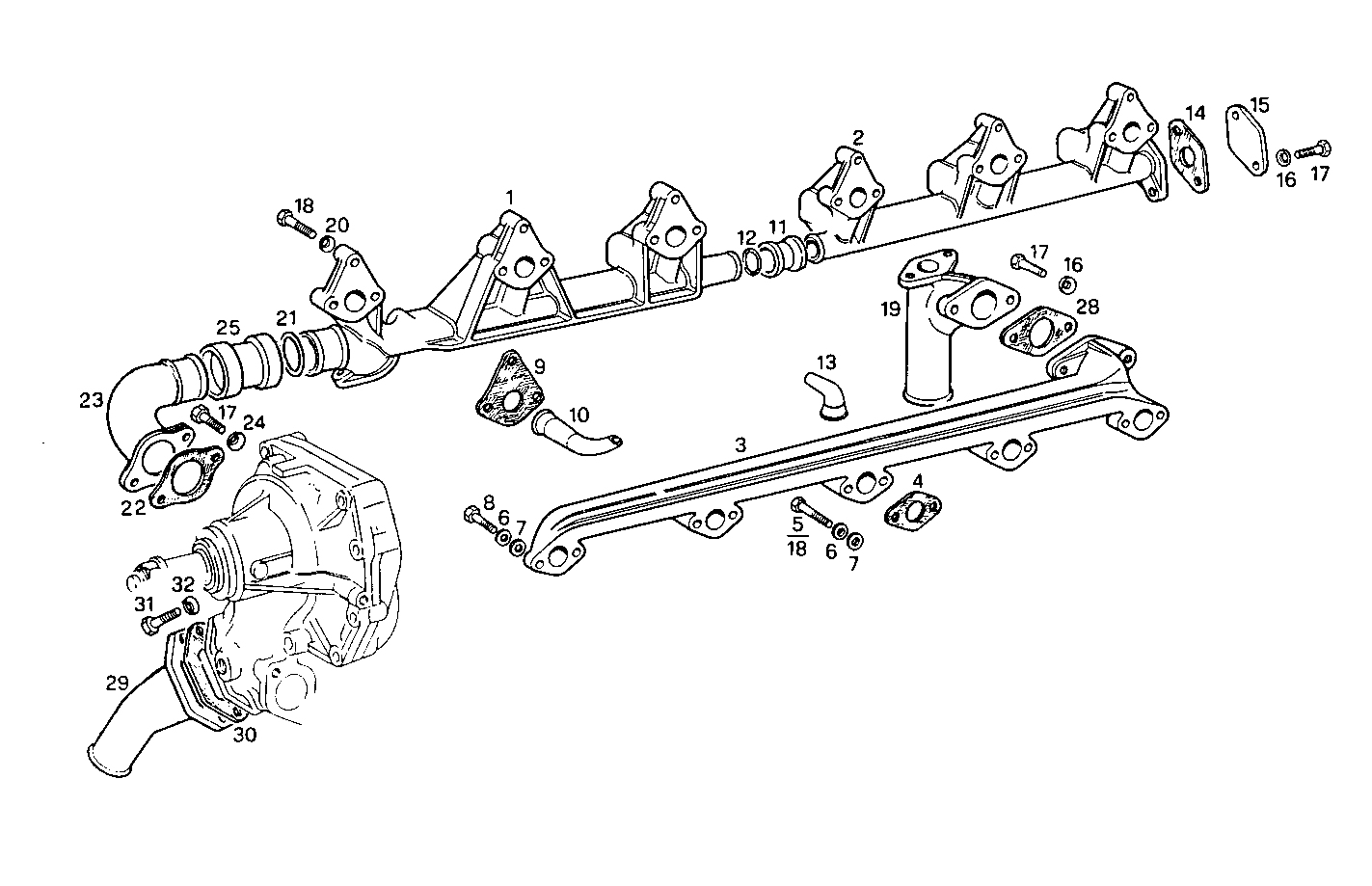

WATER LINES
8210Si02.00 — 8210Si02
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4778955 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 2 | 4762646 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 3 | 98471454 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 4 | 500308780 | FLAT ENGINE GKT FLAT ENGINE GKT | 5 | |
| 5 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 6 | 4852210 | WASHER WASHER | 10 | |
| 7 | 4852211 | WASHER WASHER | 10 | |
| 8 | 16606024 | SCREW SCREW | 6 | |
| 9 | 4852099 | FLAT ENGINE GKT FLAT ENGINE GKT | 6 | |
| 10 | 4623879 | PIPE PIPE | 6 | |
| 11 | 4762647 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 12 | 98458442 | O-RING O-RING | 4 | |
| 13 | 4638192 | PIPE PIPE | 6 | |
| 14 | 4863947 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 15 | 4641233 | FLANGE FLANGE | 1 | |
| 16 | 17089474 | SPRING WASHER SPRING WASHER | 20 | |
| 17 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 18 | 16605924 | SCREW SCREW | 19 | |
| 19 | 4670077 | WATER PIPE WATER PIPE | 1 | |
| 20 | 17094914 | WASHER WASHER | 18 | |
| 21 | 98461203 | O-RING O-RING | 2 | |
| 22 | 4864033 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 23 | 4779665 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 24 | 12646724 | WASHER WASHER | 2 | |
| 25 | 4779664 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 27 | 10257060 | SEAL GASKET SEAL GASKET | 1 | |
| 28 | 4863951 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 29 | 98450702 | WATER PIPE WATER PIPE | 1 | |
| 30 | 98451498 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 31 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 32 | 17090274 | WASHER WASHER | 2 |
