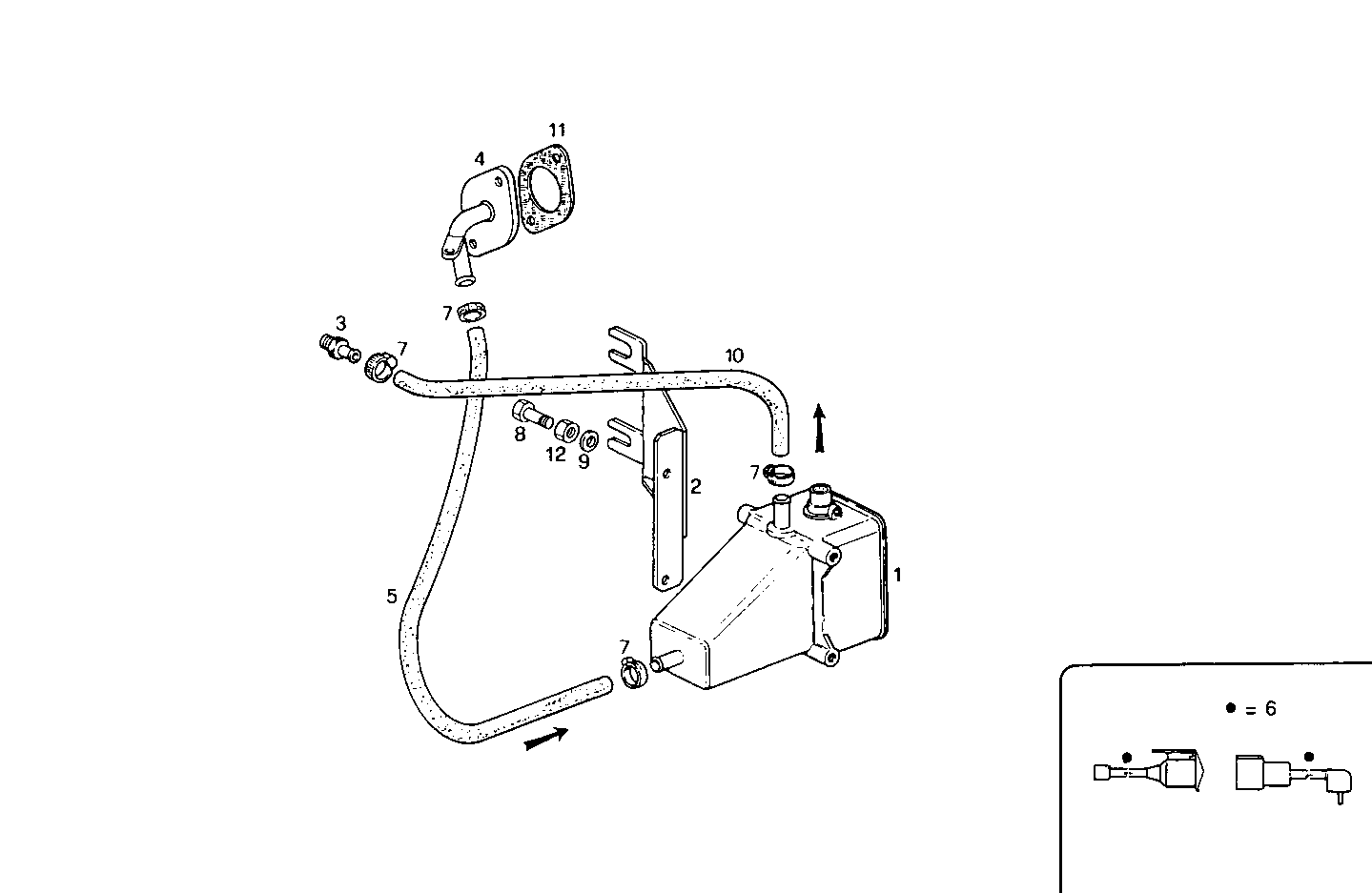

WATER PREHEATER DEVICE - 220V
8210Si02.00 — 8210Si02
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8011642 | HEATER HEATER | 1 | |
| 2 | 8009588 | SUPPORT SUPPORT | 1 | |
| 3 | 4616630 | THREADED UNION THREADED UNION | 1 | |
| 4 | 8006863 | FLANGE FLANGE | 1 | |
| 5 | 8009586 | WATER HOSE WATER HOSE | 1 | |
| 6 | 8009376 | WIRE/CABLE WIRE/CABLE | 1 | |
| 7 | 17764492 | CLIP CLIP | 4 | |
| 8 | 10902021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 11197779 | SPRING WASHER SPRING WASHER | 2 | |
| 10 | 8006868 | WATER HOSE WATER HOSE | 1 | |
| 11 | 4863947 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 12 | 15896211 | HEXAGON NUT HEXAGON NUT | 2 |
