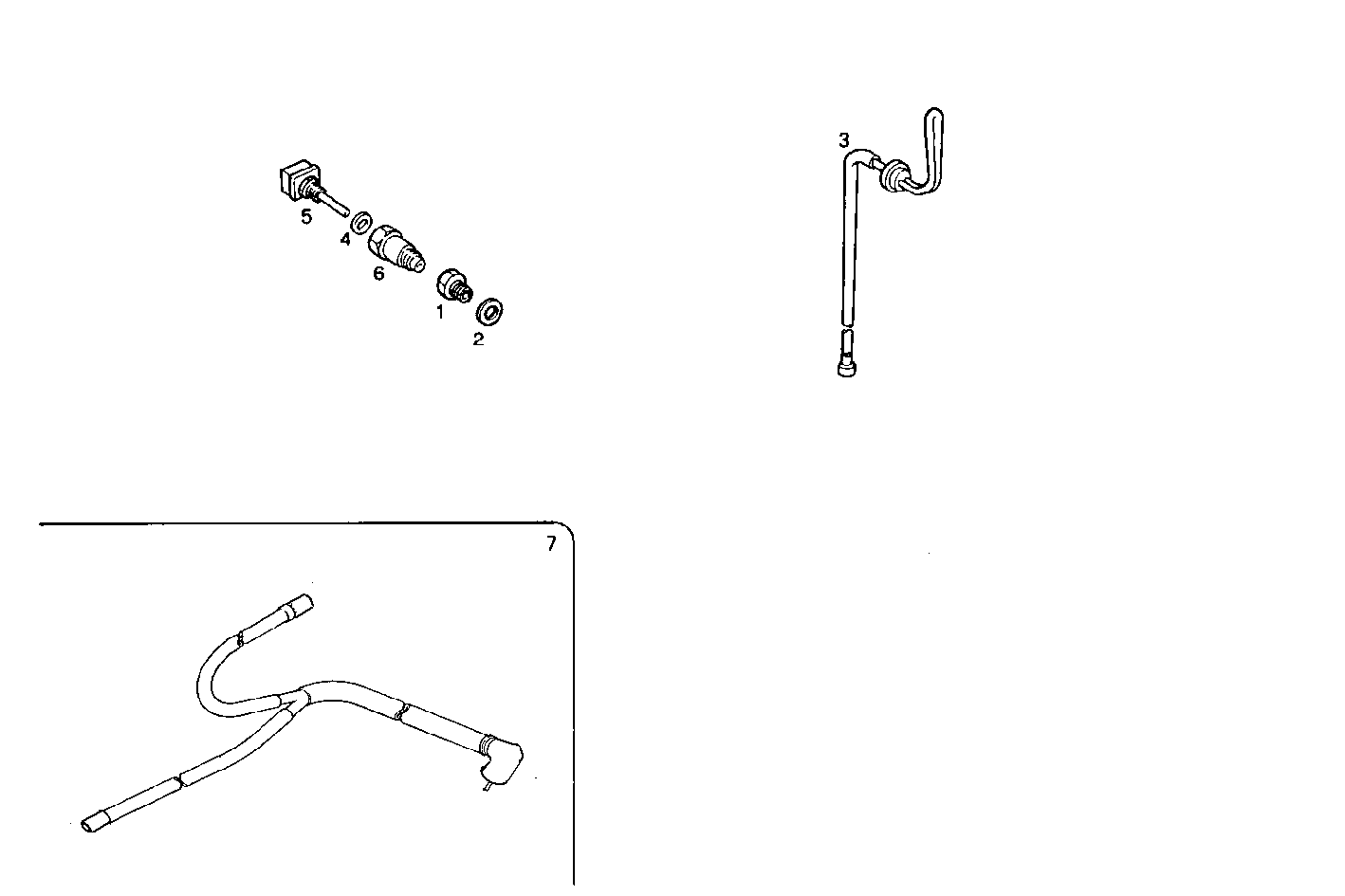

WATER PREHEATER DEVICE - 230V
8210Si02.00 — 8210Si02
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8109299 | PIPE SOCKET PIPE SOCKET | 1 | |
| 2 | 98429281 | SEAL GASKET SEAL GASKET | 1 | |
| 3 | 98450928 | RESISTOR RESISTOR | 1 | |
| 4 | 11271460 | GASKET GASKET | 1 | |
| 5 | 8032508 | THERMOSTAT THERMOSTAT | 1 | |
| 6 | 8032494 | THREADED UNION THREADED UNION | 1 | |
| 7 | 8032647 | WIRE/CABLE WIRE/CABLE | 1 |
