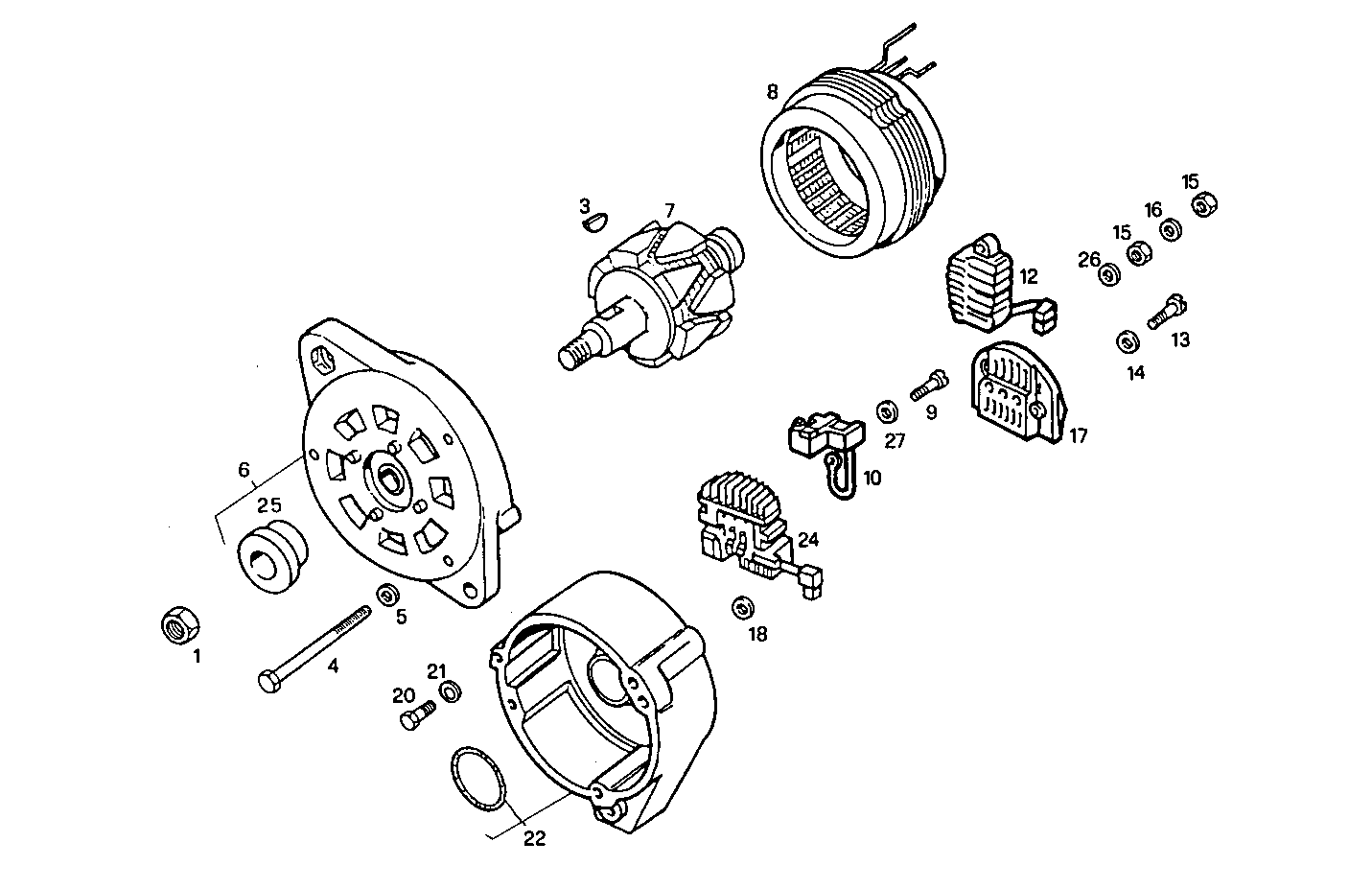

GENERATOR (COMPONENTS)
8210Si15.00A550 — 8210Si15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16980331 | NUT NUT | 1 | |
| 3 | 10206220 | KEY KEY | 1 | |
| 4 | 79014925 | SCREW SCREW | 3 | |
| 5 | 9936236 | WASHER WASHER | 3 | |
| 6 | 79034444 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 7 | 79056717 | GENERATOR ROTOR GENERATOR ROTOR | 1 | |
| 8 | 79014927 | GENERATOR STATOR GENERATOR STATOR | 1 | |
| 9 | 13268018 | CROSS-SLOT SCREW CROSS-SLOT SCREW | 1 | |
| 10 | 79014921 | BRUSH HOLDER BRUSH HOLDER | 1 | |
| 12 | 79014919 | VOLTAGE REGULATOR VOLTAGE REGULATOR | 1 | |
| 13 | 9934604 | SCREW SCREW | 1 | |
| 14 | 17094504 | WASHER WASHER | 1 | |
| 15 | 16979331 | HEXAGON NUT HEXAGON NUT | 1 | |
| 16 | 17800374 | SPRING WASHER SPRING WASHER | 1 | |
| 17 | 79014933 | PROTECTION PROTECTION | 1 | |
| 18 | 79014931 | WASHER WASHER | 1 | |
| 20 | 79014928 | SCREW SCREW | 1 | |
| 21 | 79014929 | INSULATION INSULATION | 1 | |
| 22 | 9988483 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 24 | 79060727 | RECTIFIER BRIDGE RECTIFIER BRIDGE | 1 | |
| 25 | 7548180 | RING RING | 1 | |
| 26 | 17798174 | SPRING WASHER SPRING WASHER | 1 | |
| 27 | 79014920 | WASHER WASHER | 1 |
