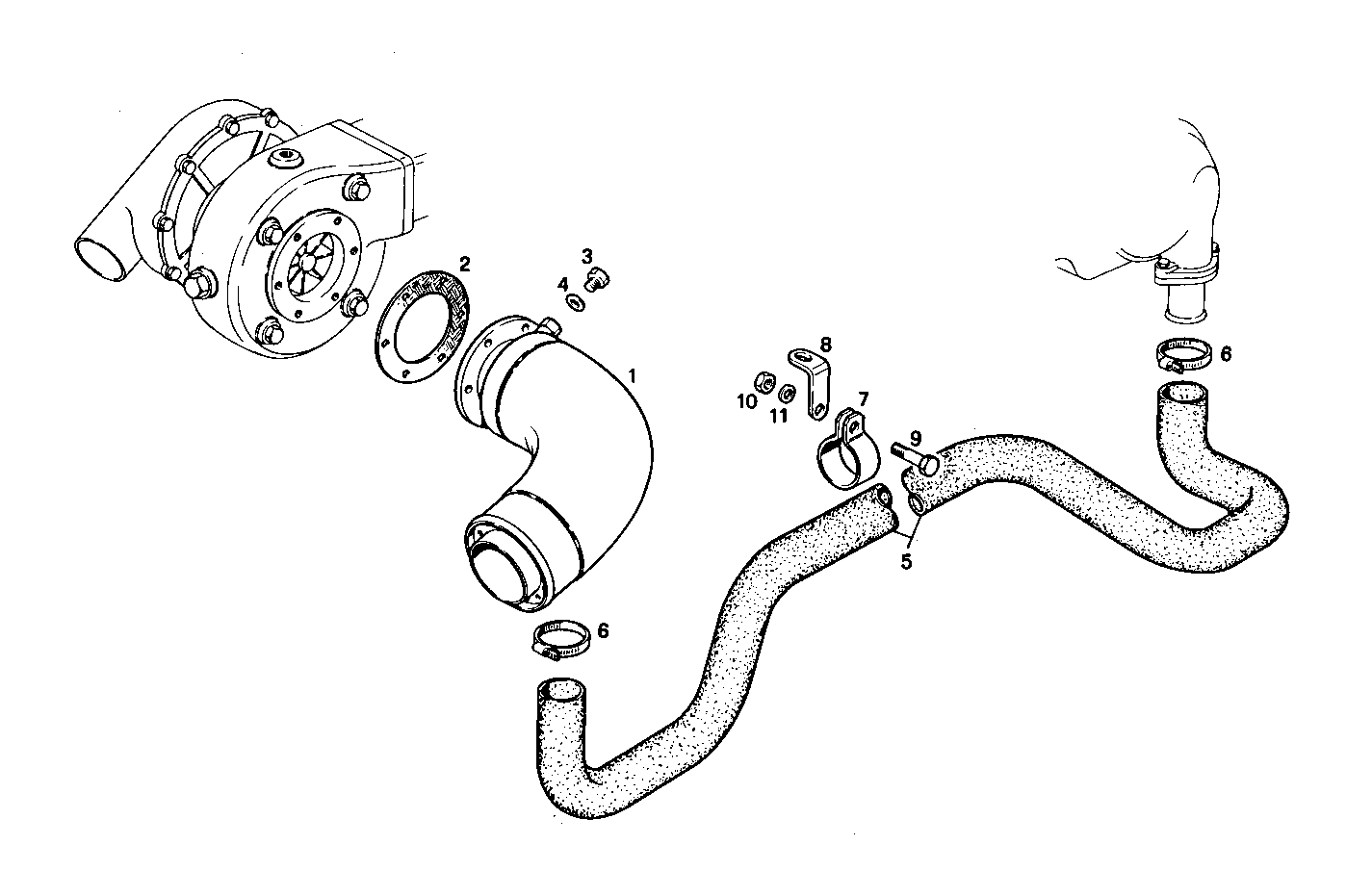

GAS-WATER MIXER WITH STERN OUTLET
8210SM26.12 — 8210SM26
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8025603 | EXHAUST COOL. ELBOW EXHAUST COOL. ELBOW | 1 | |
| 2 | 42075987 | GASKET GASKET | 1 | |
| 3 | 16992240 | THREADED PLUG THREADED PLUG | 1 | |
| 4 | 4858607 | WASHER WASHER | 1 | |
| 5 | 8013200 | WATER HOSE WATER HOSE | 1 | |
| 6 | 17765093 | CLIP CLIP | 2 | |
| 7 | 8100668 | CLIP CLIP | 1 | |
| 8 | 8112179 | RETAINER RETAINER | 1 | |
| 9 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 1 |
