MARINE GEAR PONT a MOUSSON NFB
8210SM26.12 — 8210SM26

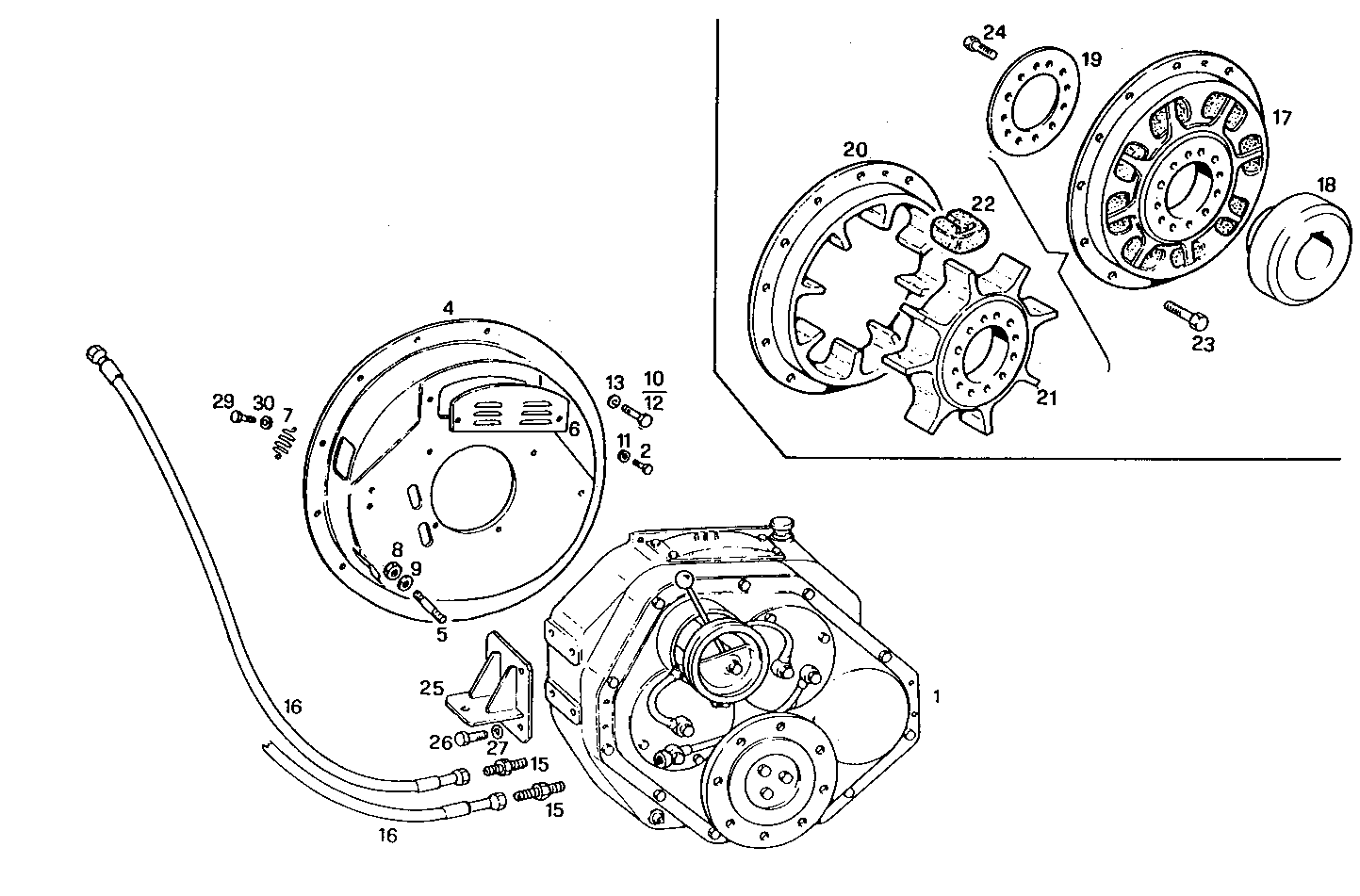

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4919569 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 16043124 | SCREW SCREW | 2 | |
| 4 | 4927749 | COUPLING BELL COUPLING BELL | 1 | |
| 5 | 4917955 | STUD STUD | 7 | |
| 6 | 4927191 | COVER COVER | 1 | |
| 7 | 8109990 | PROTECTION PROTECTION | 4 | |
| 8 | 12163911 | HEXAGON NUT HEXAGON NUT | 7 | |
| 9 | 11198679 | SPRING WASHER SPRING WASHER | 7 | |
| 10 | 16043421 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 11198079 | SPRING WASHER SPRING WASHER | 2 | |
| 12 | 11306921 | SCREW SCREW | 12 | |
| 13 | 11198379 | SPRING WASHER SPRING WASHER | 12 | |
| 15 | 8009383 | PIPE SOCKET PIPE SOCKET | 2 | |
| 16 | 8009382 | HOSE HOSE | 2 | |
| 17 | 8110990 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 18 | 8113752 | HUB HUB | 1 | |
| 19 | 4936733 | SUPPORT RING SUPPORT RING | 1 | |
| 20 | 4930912 | FLEXPLATE FLEXPLATE | 1 | |
| 21 | 8110429 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 22 | 4930911 | RUBBER PAD RUBBER PAD | 8 | |
| 23 | 14274521 | SCREW SCREW | 12 | |
| 24 | 14255031 | SCREW SCREW | 12 | |
| 25 | 8109829 | SUPPORT SUPPORT | 2 | |
| 26 | 11155621 | SCREW SCREW | 8 | |
| 27 | 11194179 | SPRING WASHER SPRING WASHER | 8 | |
| 29 | 16043124 | SCREW SCREW | 8 | |
| 30 | 11194079 | SPRING WASHER SPRING WASHER | 10 |
