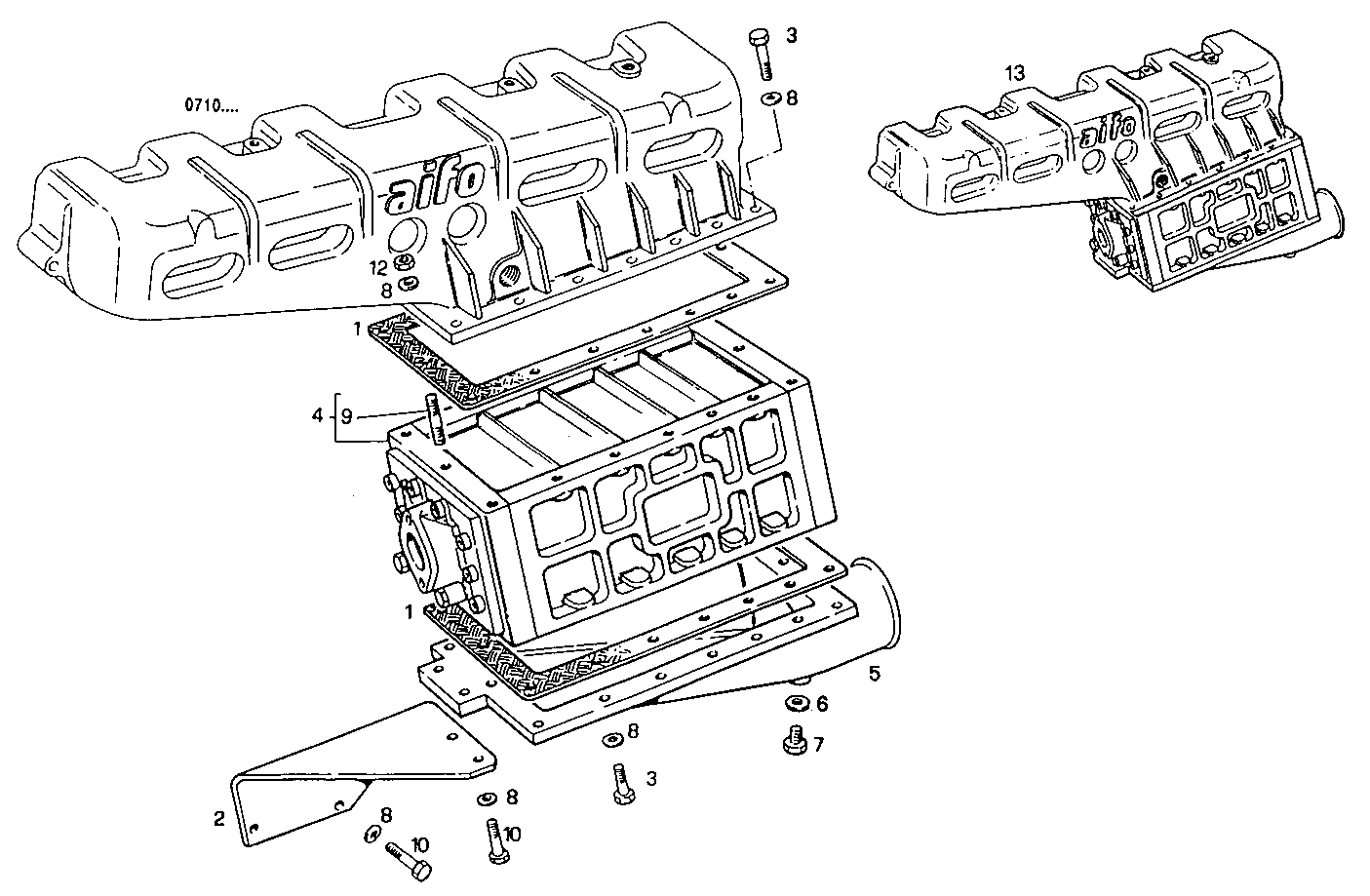

AIR - WATER HEAT EXCHANGER
8210SM27.10 — 8210SM27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008906 | GASKET GASKET | 2 | |
| 2 | 8024557 | RETAINER RETAINER | 1 | |
| 3 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 30 | |
| 4 | 8010990 | SPACING BAR SPACING BAR | 1 | |
| 5 | 8109190 | AIR HOOD AIR HOOD | 1 | |
| 6 | 4858605 | WASHER WASHER | 1 | |
| 7 | 10300940 | PLUG PLUG | 1 | |
| 8 | 17089474 | SPRING WASHER SPRING WASHER | 33 | |
| 9 | 16729424 | STUD STUD | 1 | |
| 10 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 12 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 13 | 8110272 | AIR/WATER HEAT EXCHANGER AIR/WATER HEAT EXCHANGER | 1 |
