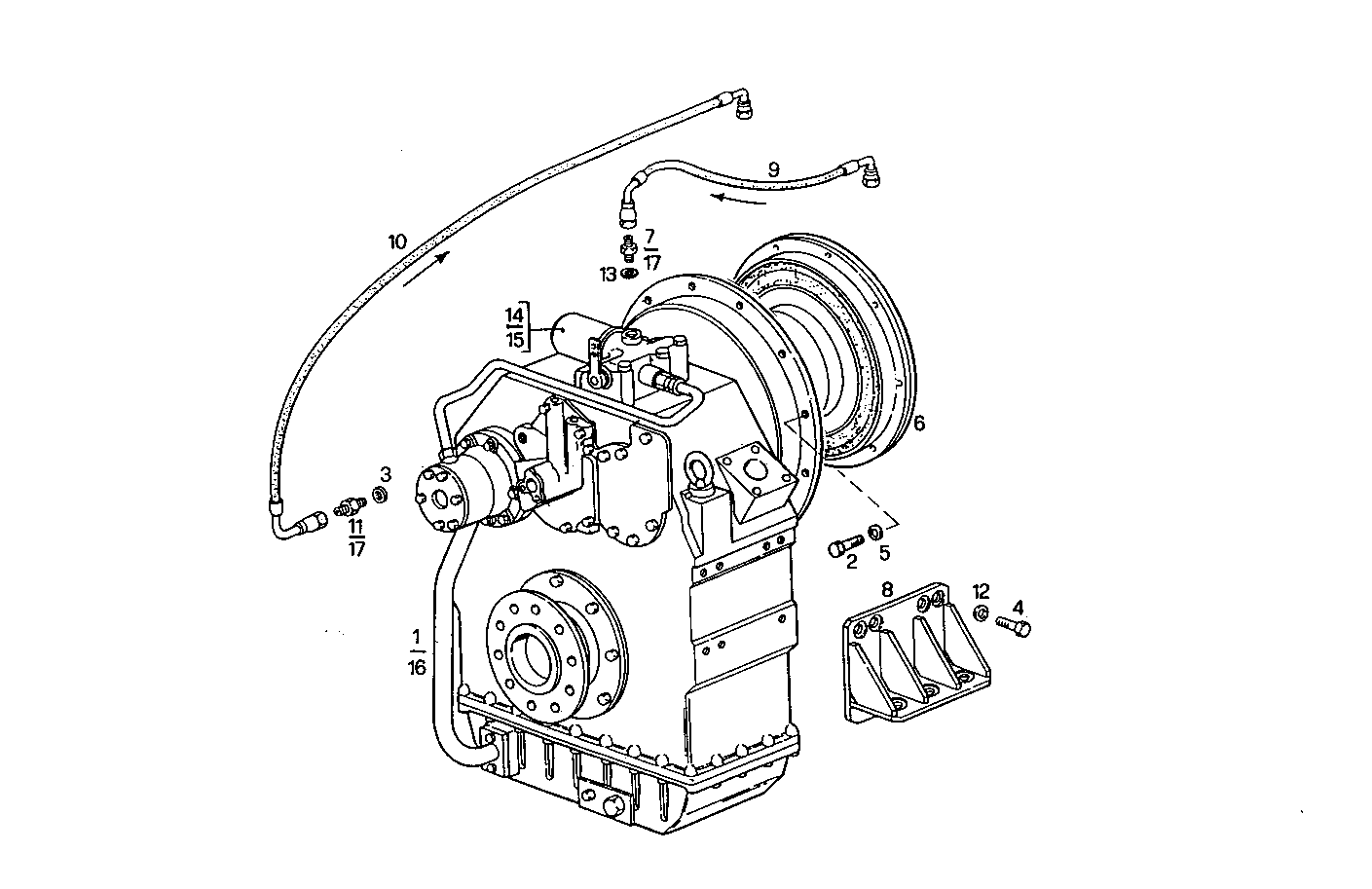

MARINE GEAR ZF-MPM IRM 350
8210SM27.10 — 8210SM27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8024637 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 11306921 | SCREW SCREW | 12 | |
| 3 | 10263460 | WASHER WASHER | 1 | |
| 4 | 4932875 | SCREW SCREW | 14 | |
| 5 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 6 | 8024603 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 7 | 8026677 | PIPE SOCKET PIPE SOCKET | 1 | |
| 8 | 8110996 | SUPPORT SUPPORT | 2 | |
| 9 | 8006875 | HOSE HOSE | 1 | |
| 10 | 8113774 | HOSE HOSE | 1 | |
| 11 | 8026675 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 11194279 | SPRING WASHER SPRING WASHER | 14 | |
| 13 | 11271460 | GASKET GASKET | 1 | |
| 14 | 8007794 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 1 | |
| 15 | 8007795 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 1 | |
| 16 | 8026510 | MARINE GEAR MARINE GEAR | 1 | |
| 17 | 8017533 | FUEL LINE FUEL LINE | 2 |
