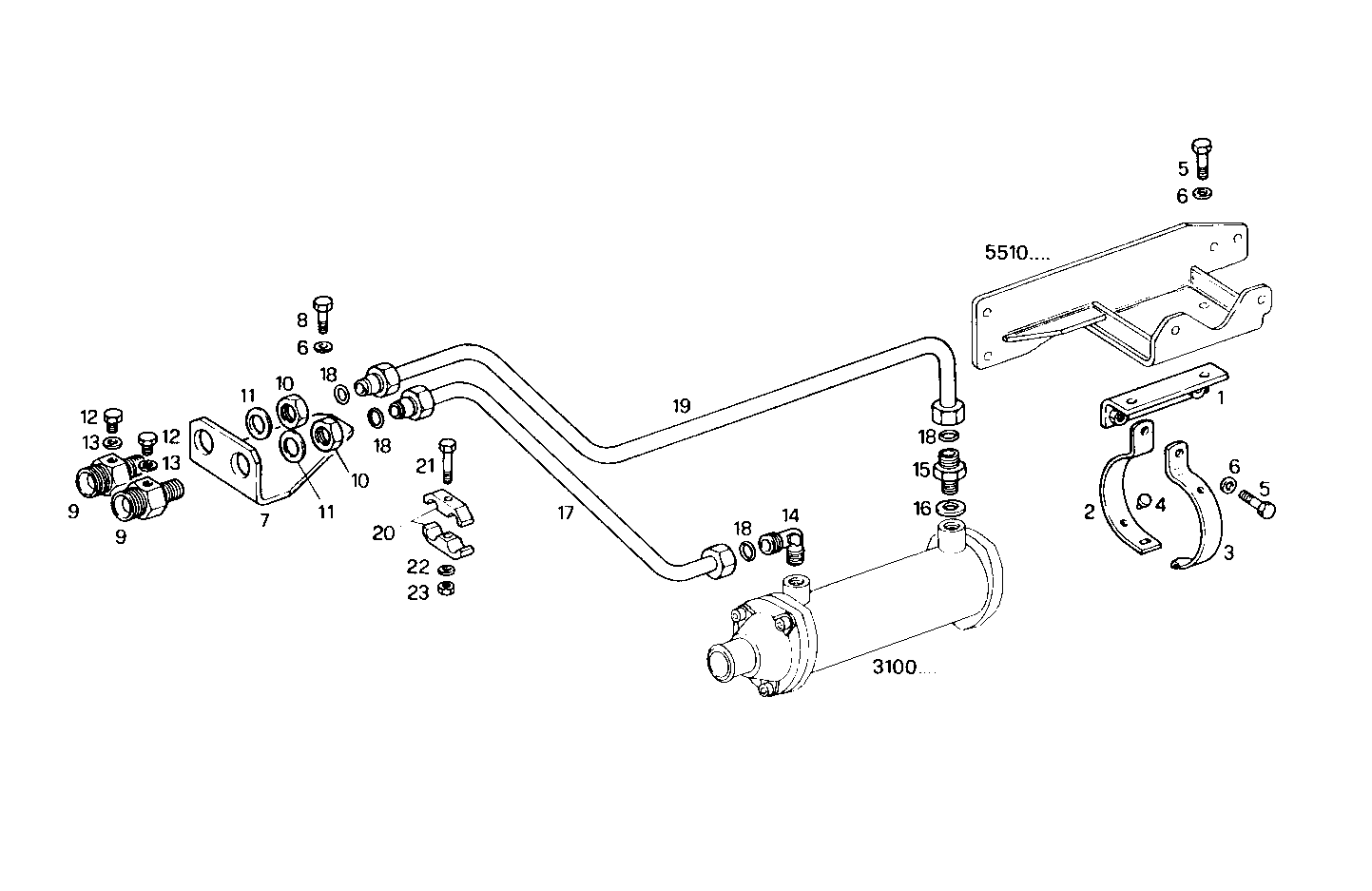

8210SM27/8210SM27.10/REVERSER WATER HEAT EXCHANGER

REVERSER WATER HEAT EXCHANGER

8210SM27.10 — 8210SM27

Parts List

#	Part No	Name / Description	Qty
1	8024416	RETAINER RETAINER	1
2	8017424	CLAMP CLAMP	2
3	8017425	CLAMP CLAMP	2
4	1366290	RUBBER PAD RUBBER PAD	8
5	16607624	SCREW SCREW	4
6	17090174	SPRING WASHER SPRING WASHER	6
7	8024550	RETAINER RETAINER	1
8	15004021	HEXAGON BOLT HEXAGON BOLT	2
9	8111751	PIPE SOCKET PIPE SOCKET	2
10	16981131	NUT NUT	2
11	17801174	SPRING WASHER SPRING WASHER	2
12	11903111	LOCK PLUG LOCK PLUG	2
13	4858606	GASKET GASKET	2
14	8011456	PIPE SOCKET PIPE SOCKET	1
15	8011519	PIPE SOCKET PIPE SOCKET	1
16	11271460	GASKET GASKET	1
17	8024834	WATER PIPE WATER PIPE	1
18	8024649	O-RING O-RING	4
19	8024835	WATER PIPE WATER PIPE	1
20	8010505	CLAMP CLAMP	2
21	16605824	HEXAGON BOLT HEXAGON BOLT	1
22	17094914	WASHER WASHER	1
23	17037931	HEXAGON NUT HEXAGON NUT	1
