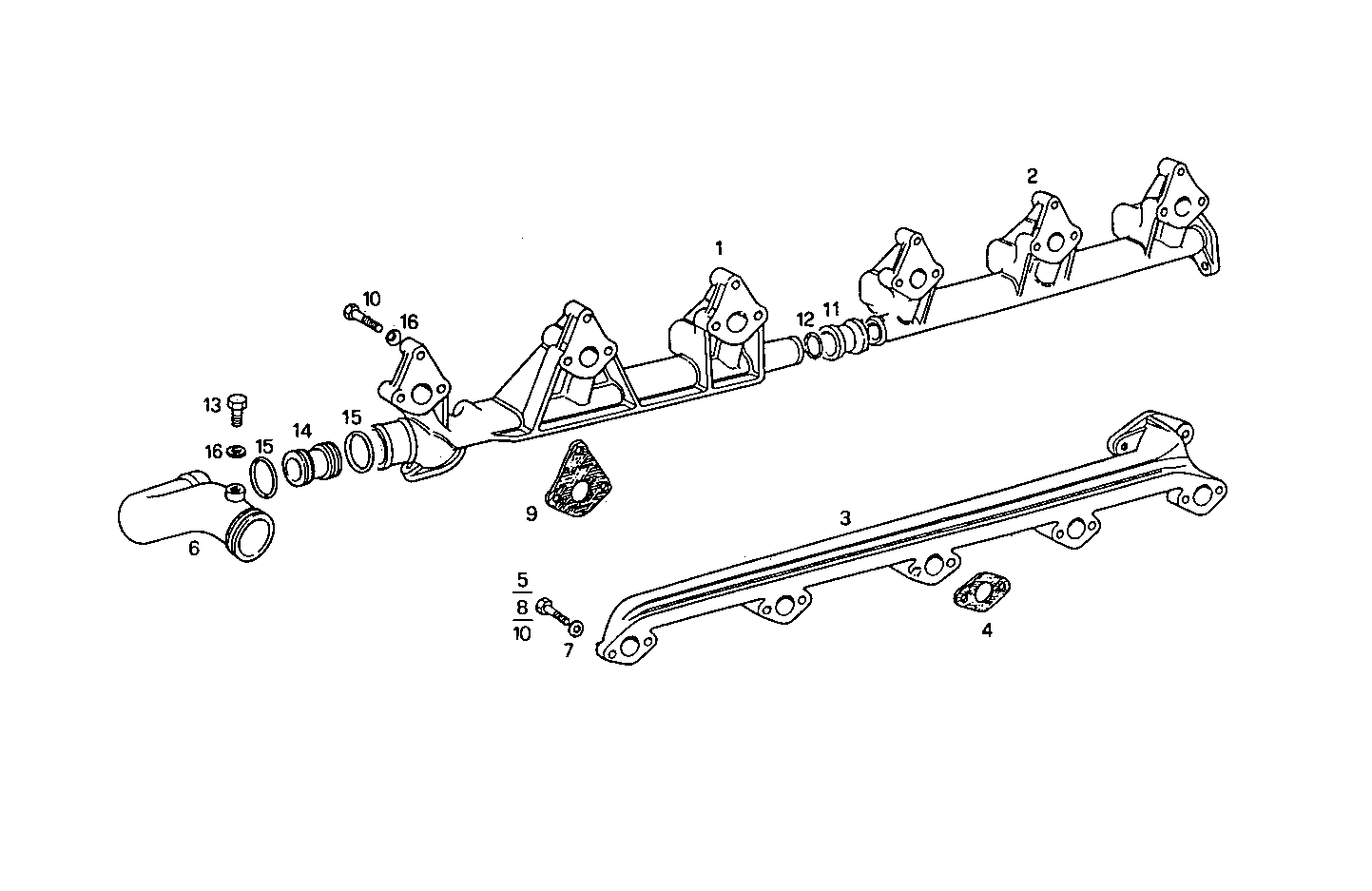

WATER LINES
8210SM27.10 — 8210SM27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4778955 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 2 | 4762646 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 3 | 98471454 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 4 | 500308780 | FLAT ENGINE GKT FLAT ENGINE GKT | 5 | |
| 5 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 6 | 98478087 | WATER PIPE WATER PIPE | 1 | |
| 7 | 4852211 | WASHER WASHER | 10 | |
| 8 | 16606024 | SCREW SCREW | 6 | |
| 9 | 4852099 | FLAT ENGINE GKT FLAT ENGINE GKT | 6 | |
| 10 | 16605924 | SCREW SCREW | 19 | |
| 11 | 4762647 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 12 | 98458442 | O-RING O-RING | 4 | |
| 13 | 16606524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 4859434 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 15 | 500349805 | O-RING O-RING | 2 | |
| 16 | 17094914 | WASHER WASHER | 19 |
