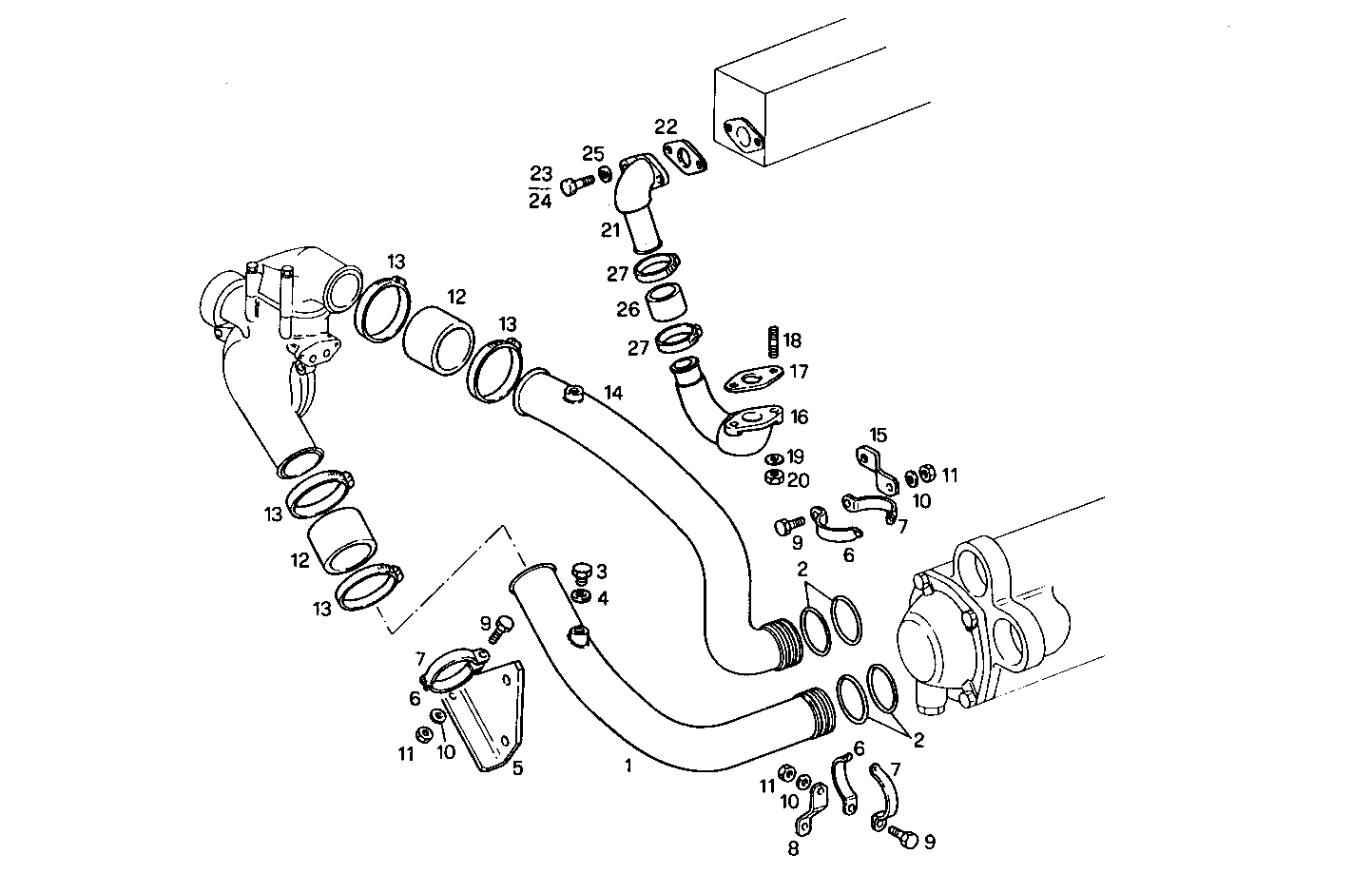

WATER LINES
8210SM27.10 — 8210SM27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8024544 | WATER PIPE WATER PIPE | 1 | |
| 2 | 17290581 | O-RING O-RING | 4 | |
| 3 | 16992611 | THREADED PLUG THREADED PLUG | 1 | |
| 4 | 10263460 | WASHER WASHER | 1 | |
| 5 | 8024546 | RETAINER RETAINER | 1 | |
| 6 | 8017810 | CLAMP CLAMP | 3 | |
| 7 | 8017811 | CLAMP CLAMP | 3 | |
| 8 | 8006219 | RETAINER RETAINER | 1 | |
| 9 | 16607624 | SCREW SCREW | 3 | |
| 10 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 11 | 17038121 | HEXAGON NUT HEXAGON NUT | 3 | |
| 12 | 8107383 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 13 | 17765093 | CLIP CLIP | 4 | |
| 14 | 8024543 | WATER PIPE WATER PIPE | 1 | |
| 15 | 8024545 | RETAINER RETAINER | 1 | |
| 16 | 8024587 | WATER PIPE WATER PIPE | 1 | |
| 17 | 4863951 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 18 | 16729424 | STUD STUD | 2 | |
| 19 | 17089574 | WASHER WASHER | 2 | |
| 20 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 21 | 8024588 | WATER PIPE WATER PIPE | 1 | |
| 22 | 8009460 | RETAINER RETAINER | 1 | |
| 23 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 24 | 16606124 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 25 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 26 | 8110724 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 27 | 17764793 | CLIP CLIP | 2 |
