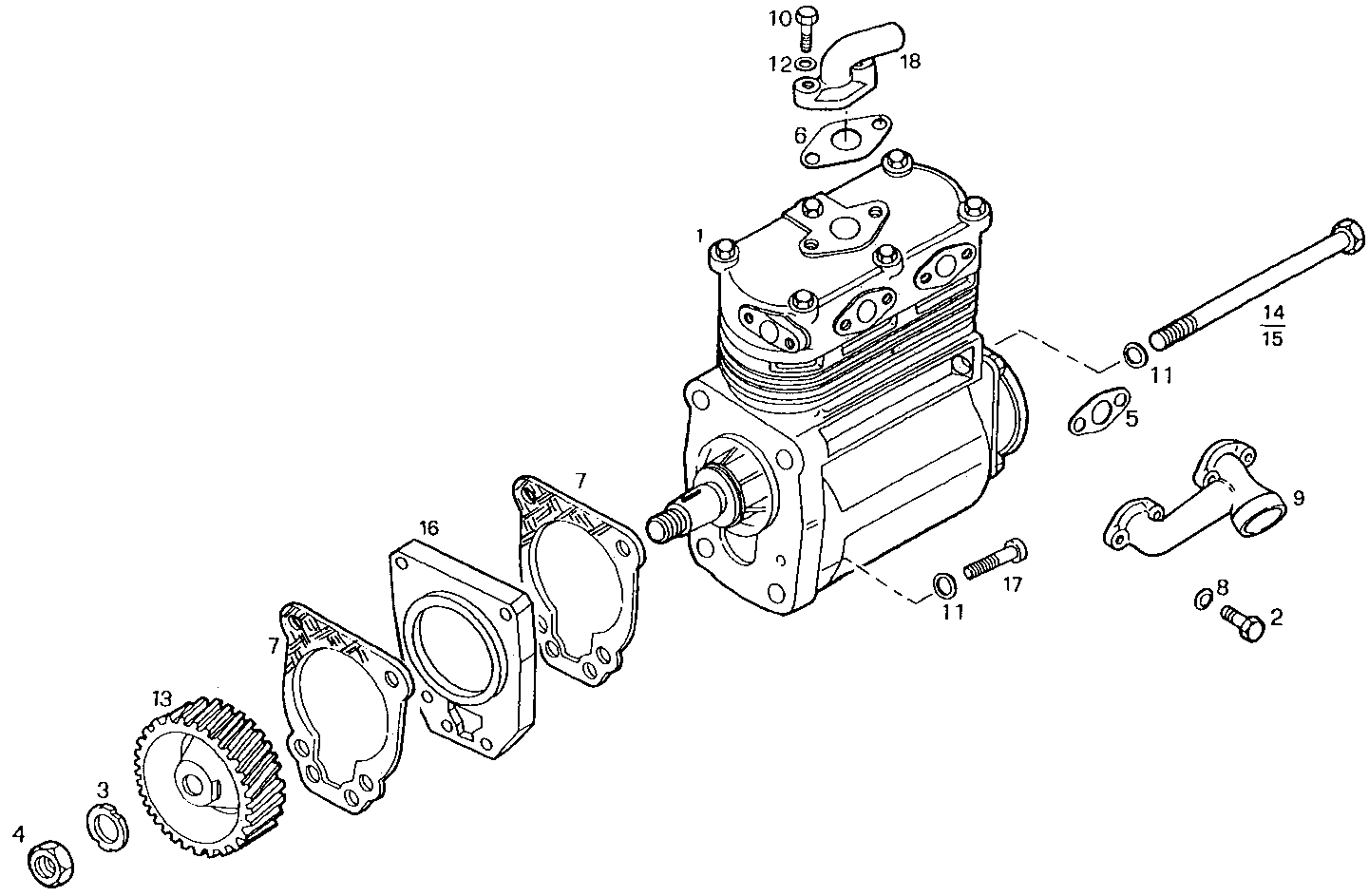

AIR COMPRESSOR
8210SRC21.00 — 8210SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99476238 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 2 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 3 | 17095814 | WASHER WASHER | 1 | |
| 4 | 16980731 | HEXAGON NUT HEXAGON NUT | 1 | |
| 5 | 4863497 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 6 | 4863538 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 7 | 4864032 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 8 | 17094914 | WASHER WASHER | 4 | |
| 9 | 4717885 | CONNECTING PIPE CONNECTING PIPE | 1 | |
| 10 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 17090274 | WASHER WASHER | 4 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 13 | 99449306 | GEAR GEAR | 1 | |
| 14 | 99446075 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 99446076 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 98424166 | SPACING BAR SPACING BAR | 1 | |
| 17 | 14308224 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 18 | 500350473 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 |
