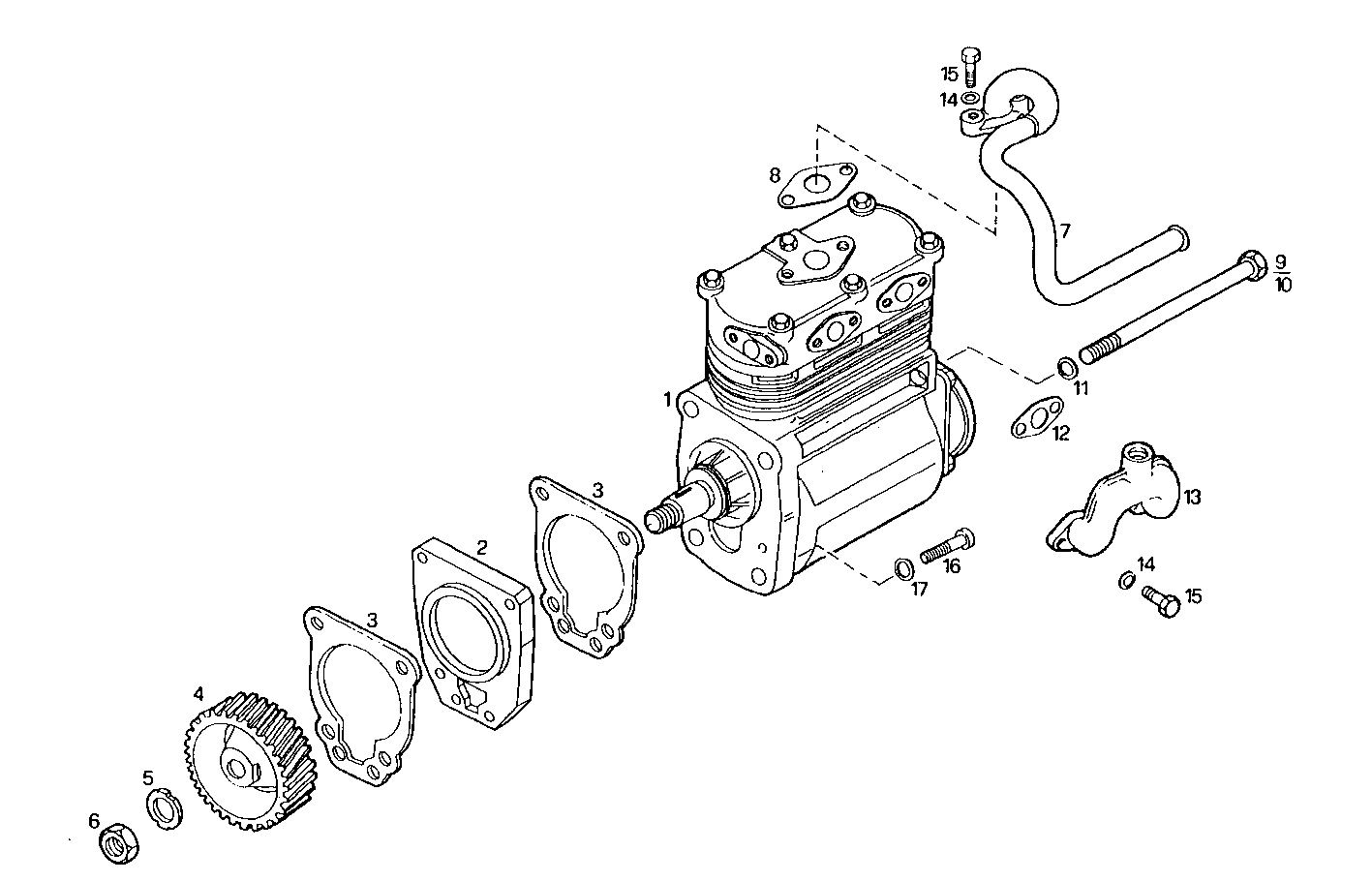

AIR COMPRESSOR
8210SRC21.20 — 8210SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500310903 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 2 | 98424166 | SPACING BAR SPACING BAR | 1 | |
| 3 | 4864032 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 4 | 99449306 | GEAR GEAR | 1 | |
| 5 | 17095814 | WASHER WASHER | 1 | |
| 6 | 16980731 | HEXAGON NUT HEXAGON NUT | 1 | |
| 7 | 500350474 | PIPE PIPE | 1 | |
| 8 | 500350475 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 14307924 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 1 | |
| 10 | 500348174 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 1 | |
| 11 | 17090274 | WASHER WASHER | 2 | |
| 12 | 4863497 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 13 | 4649176 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 14 | 17094914 | WASHER WASHER | 6 | |
| 15 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 16 | 14308821 | SCREW SCREW | 2 | |
| 17 | 17090274 | WASHER WASHER | 2 |
