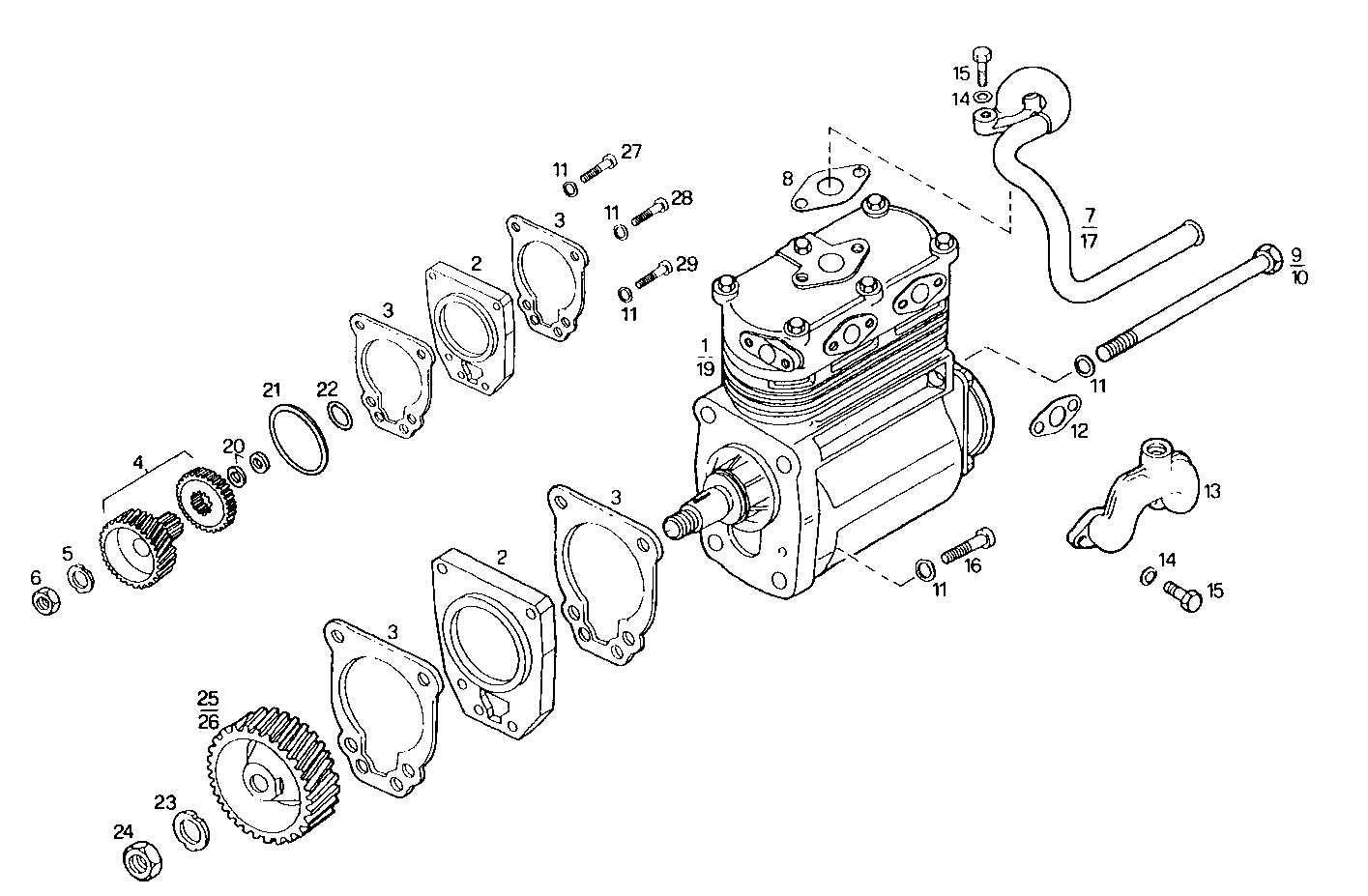

AIR COMPRESSOR
8210SRC21.21 — 8210SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4850697 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 2 | 98424166 | SPACING BAR SPACING BAR | 1 | |
| 3 | 4864032 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 4 | 99449098 | COMP. DRIVE GEAR COMP. DRIVE GEAR | 1 | |
| 5 | 17095814 | WASHER WASHER | 1 | |
| 6 | 16980731 | HEXAGON NUT HEXAGON NUT | 1 | |
| 7 | 98446078 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 8 | 4863538 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 4649239 | SCREW SCREW | 1 | |
| 10 | 98434329 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 17090274 | WASHER WASHER | 2 | |
| 12 | 4863497 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 13 | 4649176 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 14 | 17094914 | WASHER WASHER | 6 | |
| 15 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 16 | 14308024 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 17 | 98438429 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 19 | 99476239 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 20 | 98416787 | SPRING WASHER SPRING WASHER | 2 | |
| 21 | 99449249 | SPACER RING SPACER RING | 1 | |
| 22 | 17854576 | SPRING LOCKWASHER SPRING LOCKWASHER | 1 | |
| 23 | 4709364 | LOCKING PLATE LOCKING PLATE | 1 | |
| 24 | 4709365 | HEXAGON NUT HEXAGON NUT | 1 | |
| 25 | 98418373 | COMP. DRIVE GEAR COMP. DRIVE GEAR | 1 | |
| 26 | 98424645 | COMP. DRIVE GEAR COMP. DRIVE GEAR | 1 | |
| 27 | 99446075 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 28 | 99446076 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 29 | 14308224 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 |
