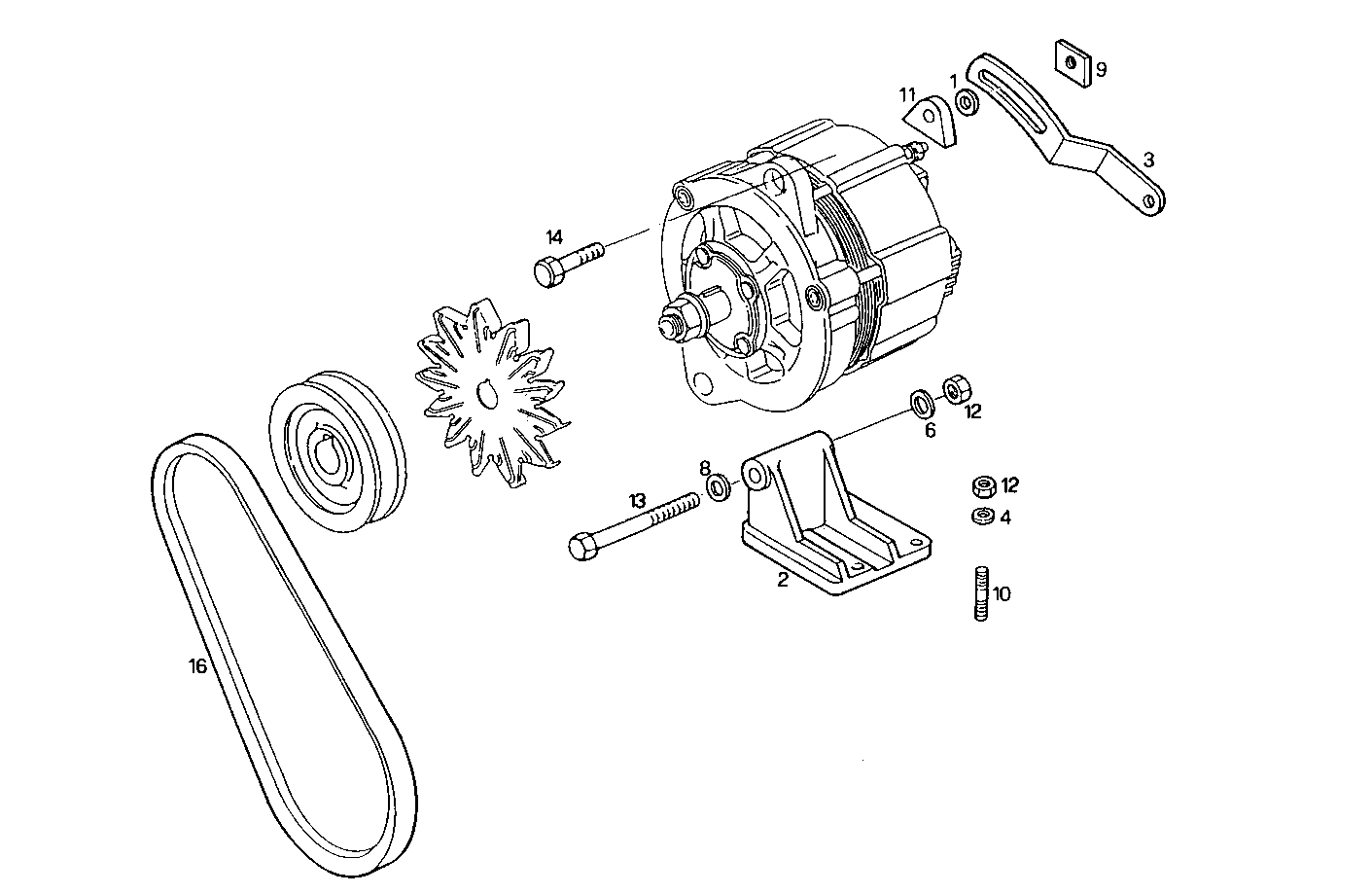

MOUNT
8210SRC21.30 — 8210SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 17095004 | WASHER WASHER | 1 | |
| 2 | 98433409 | SUPPORT SUPPORT | 1 | |
| 3 | 98433408 | BELT TENSIONER BELT TENSIONER | 1 | |
| 4 | 11198574 | WASHER WASHER | 4 | |
| 6 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 8 | 12626221 | WASHER WASHER | 1 | |
| 9 | 98424121 | LOCKING PLATE LOCKING PLATE | 1 | |
| 10 | 13449424 | STUD STUD | 4 | |
| 11 | 98424122 | SPACING BAR SPACING BAR | 1 | |
| 12 | 17038221 | HEXAGON NUT HEXAGON NUT | 5 | |
| 13 | 98418936 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 14308024 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 1 | |
| 16 | 98459454 | ALTERNATOR BELT ALTERNATOR BELT | 1 |
