OIL - WATER HEAT EXCHANGER
8210SRC21.30 — 8210SRC21

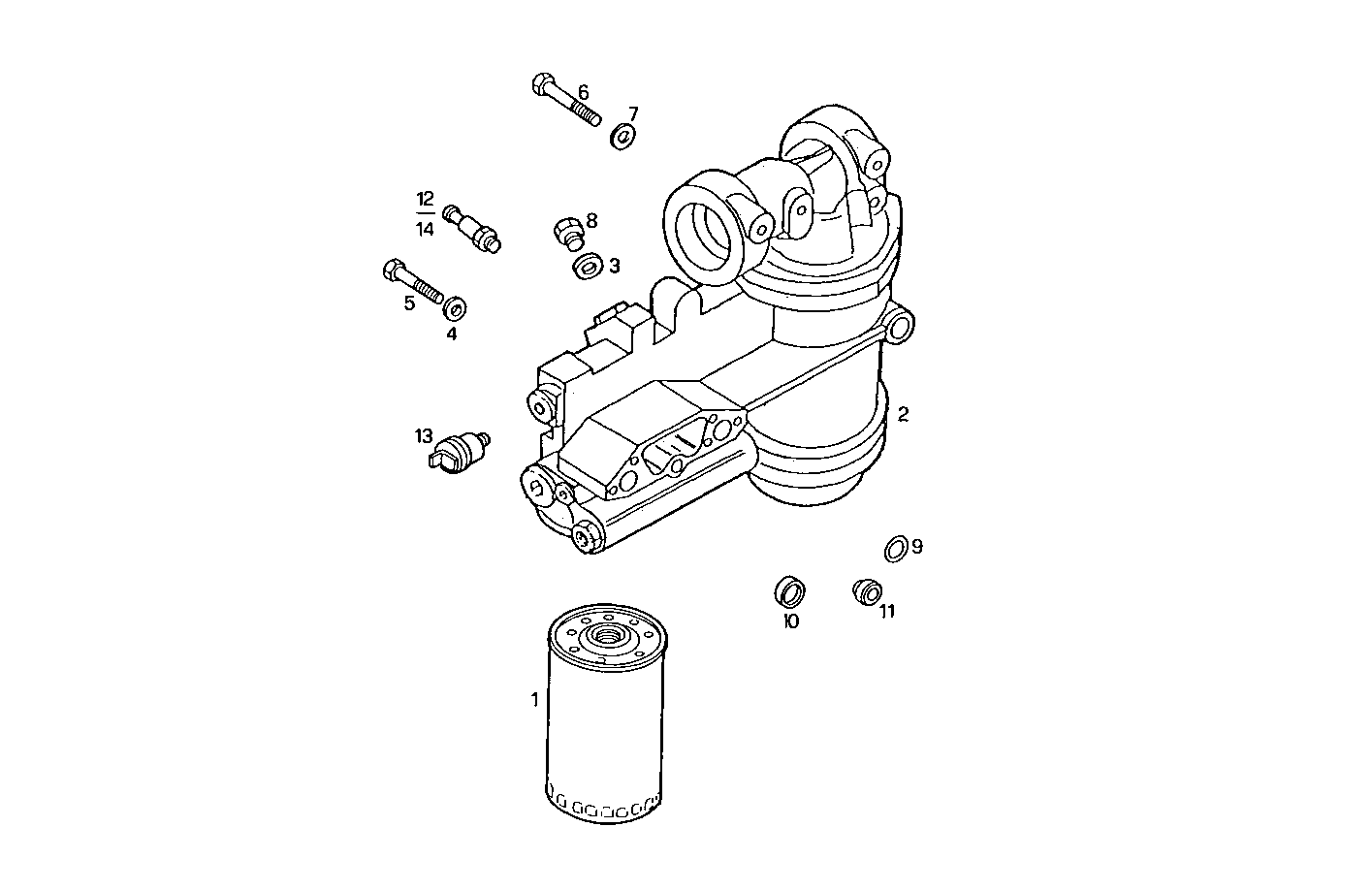

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 1903629 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 2 | |
| 2 | 99431269 | HEAT EXCHANGER HEAT EXCHANGER | 1 | |
| 3 | 4858609 | WASHER WASHER | 1 | |
| 4 | 12626024 | SPRING WASHER SPRING WASHER | 6 | |
| 5 | 15972521 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 6 | 16045821 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 17094914 | WASHER WASHER | 1 | |
| 8 | 16992411 | THREADED PLUG THREADED PLUG | 1 | |
| 9 | 17282481 | O-RING O-RING | 2 | |
| 10 | 98469591 | CENTERING BUSH CENTERING BUSH | 2 | |
| 11 | 4838502 | SEAL GASKET SEAL GASKET | 1 | |
| 12 | 98445111 | PRESSURE SWITCH PRESSURE SWITCH | 1 | |
| 13 | 99484667 | TRANSMITTER TRANSMITTER | 1 | |
| 14 | 98442879 | PRESSURE SWITCH PRESSURE SWITCH | 1 |
