AIR COMPRESSOR
8210SRC22.00 — 8210SRC22

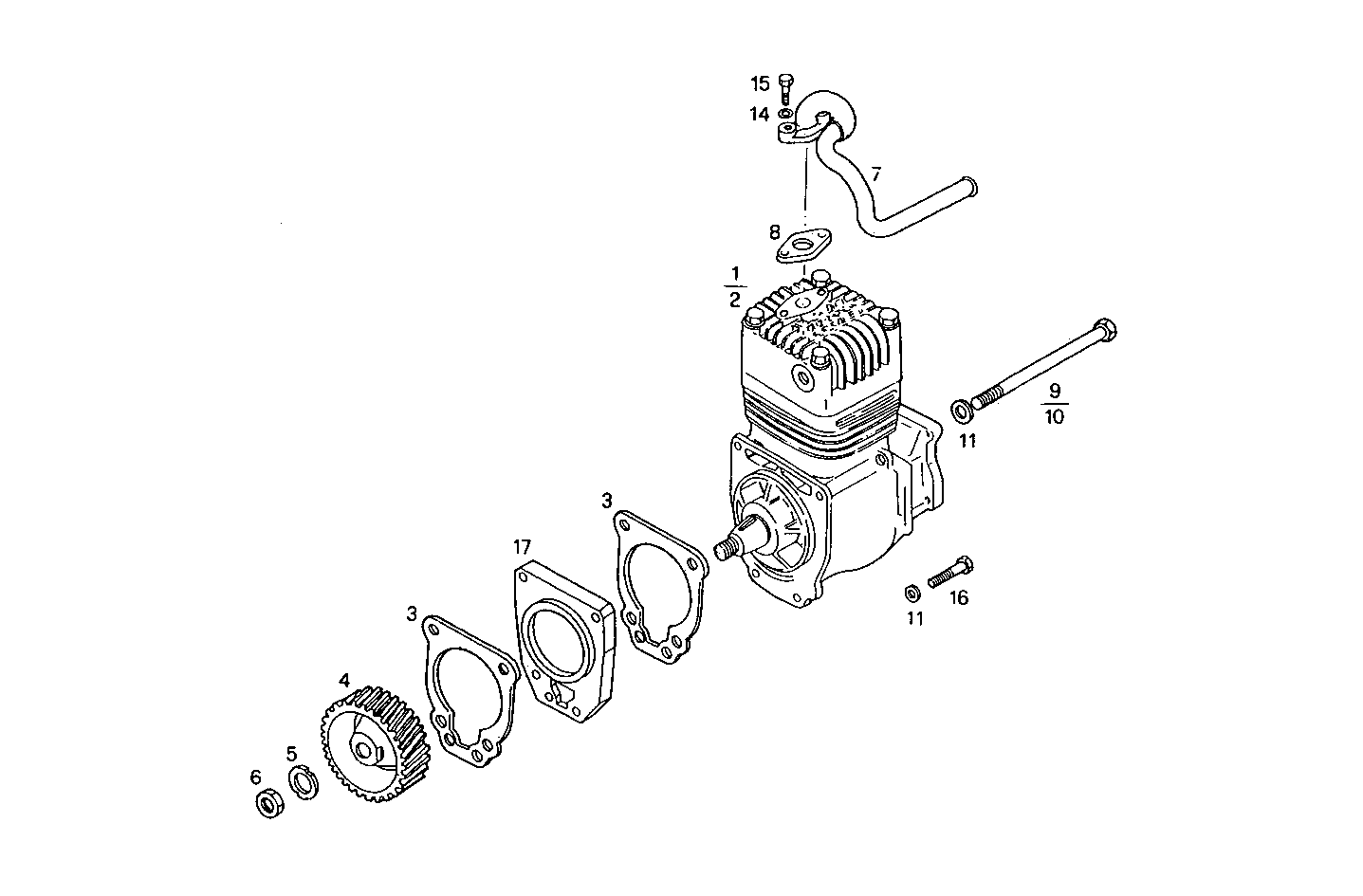

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500310901 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 2 | 500310905 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 3 | 4864032 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 4 | 99449306 | GEAR GEAR | 1 | |
| 5 | 17095814 | WASHER WASHER | 1 | |
| 6 | 16980731 | HEXAGON NUT HEXAGON NUT | 1 | |
| 7 | 98438667 | SUCTION LINE SUCTION LINE | 1 | |
| 8 | 4863948 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 15972624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 98434832 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 17090274 | WASHER WASHER | 4 | |
| 14 | 17094914 | WASHER WASHER | 2 | |
| 15 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 14308821 | SCREW SCREW | 2 | |
| 17 | 98424166 | SPACING BAR SPACING BAR | 1 |
