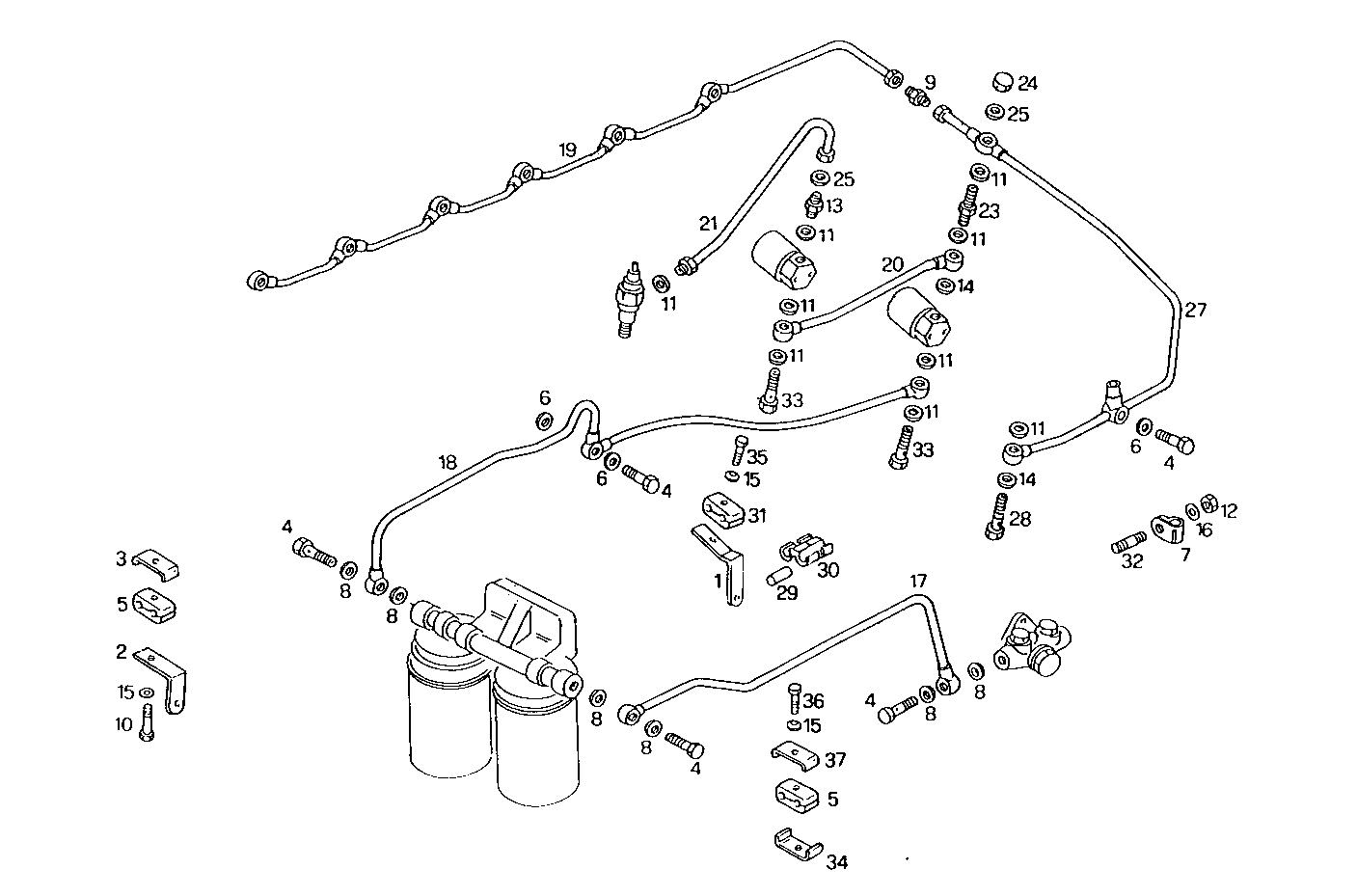

FUEL LINES
8210SRC22.00 — 8210SRC22
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99441164 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 2 | 99485093 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 3 | 99447234 | CLIP CLIP | 1 | |
| 4 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 5 | |
| 5 | 4871771 | RUBBER PAD RUBBER PAD | 2 | |
| 6 | 4858608 | SEAL GASKET SEAL GASKET | 4 | |
| 7 | 10440990 | PIPE CLIP PIPE CLIP | 1 | |
| 8 | 98474308 | SEAL GASKET SEAL GASKET | 6 | |
| 9 | 16501511 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 10 | 16603924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 98474305 | WASHER WASHER | 11 | |
| 12 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 | |
| 13 | 500302990 | THREADED UNION THREADED UNION | 1 | |
| 14 | 98474303 | WASHER WASHER | 2 | |
| 15 | 17088474 | WASHER WASHER | 3 | |
| 16 | 17088774 | WASHER WASHER | 1 | |
| 17 | 98497592 | FUEL LINE FUEL LINE | 1 | |
| 18 | 98497594 | FUEL LINE FUEL LINE | 1 | |
| 19 | 98435435 | FUEL LINE FUEL LINE | 1 | |
| 20 | 98487600 | FUEL LINE FUEL LINE | 1 | |
| 21 | 98487616 | FUEL LINE FUEL LINE | 1 | |
| 23 | 98469450 | BYPASS VALVE BYPASS VALVE | 1 | |
| 24 | 98469675 | THREADED PLUG THREADED PLUG | 1 | |
| 25 | 98474306 | WASHER WASHER | 2 | |
| 27 | 98487619 | FUEL LINE FUEL LINE | 1 | |
| 28 | 4864077 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 29 | 17816614 | SPACING BAR SPACING BAR | 1 | |
| 30 | 98429625 | SPRING CLAMP SPRING CLAMP | 1 | |
| 31 | 4746524 | SPRING CLAMP SPRING CLAMP | 1 | |
| 32 | 16727624 | STUD STUD | 1 | |
| 33 | 4864079 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 34 | 99481181 | CLIP CLIP | 1 | |
| 35 | 16603824 | SCREW SCREW | 1 | |
| 36 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 37 | 99442252 | RETAINER RETAINER | 1 |
