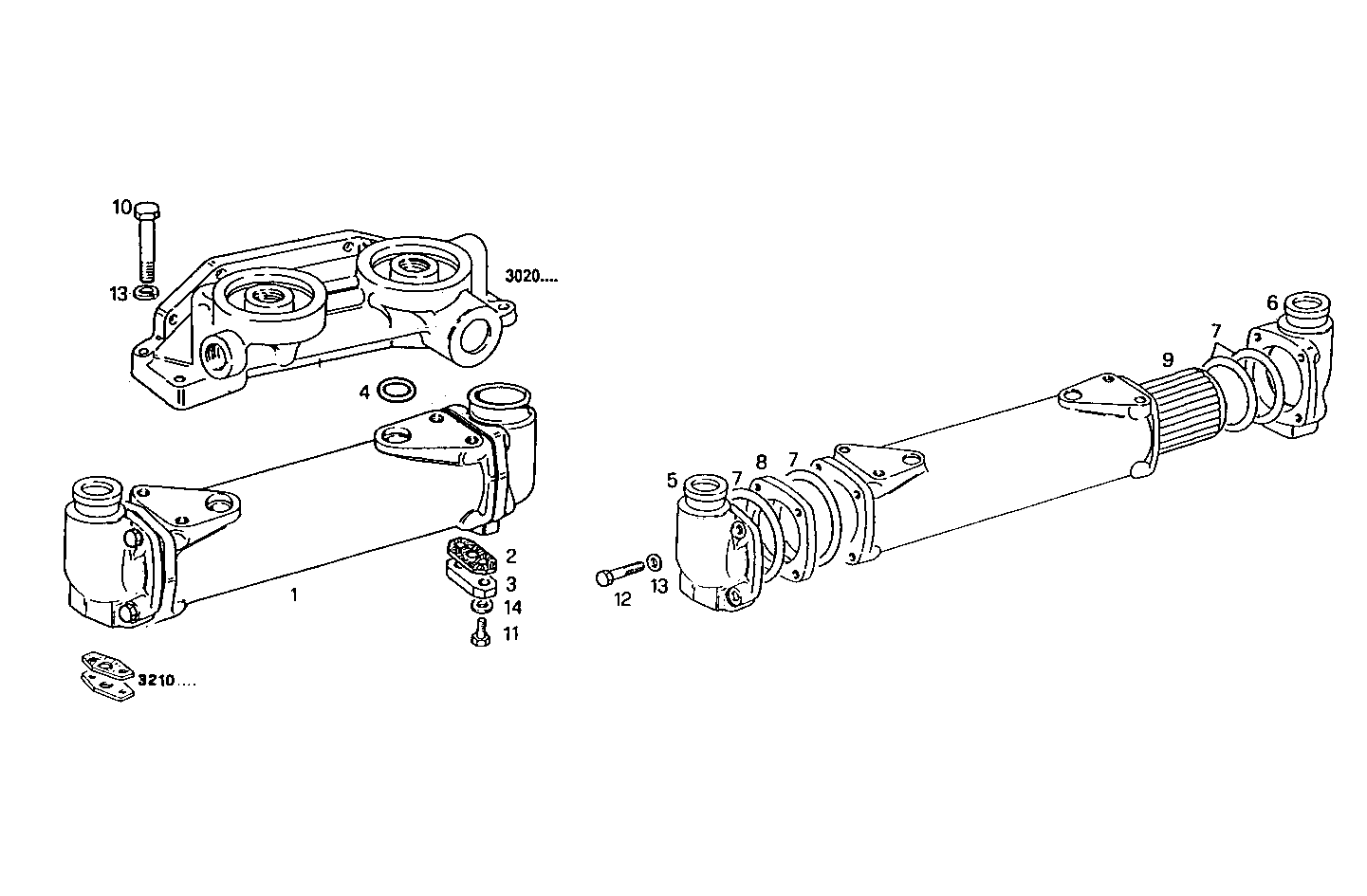

OIL - WATER HEAT EXCHANGER
8210SRE10.00 — 8210SRE10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4803814 | HEAT EXCHANGER HEAT EXCHANGER | 1 | |
| 2 | 4863948 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 593763 | FLANGE FLANGE | 1 | |
| 4 | 17282781 | O-RING O-RING | 2 | |
| 5 | 7984210 | COVER COVER | 1 | |
| 6 | 7984211 | COVER COVER | 1 | |
| 7 | 93155996 | O-SEAL O-SEAL | 4 | |
| 8 | 7984207 | GASKET GASKET | 1 | |
| 9 | 7984209 | OIL COOLER OIL COOLER | 1 | |
| 10 | 11306921 | SCREW SCREW | 4 | |
| 11 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 16043924 | SCREW SCREW | 8 | |
| 13 | 17090274 | WASHER WASHER | 12 | |
| 14 | 17089474 | SPRING WASHER SPRING WASHER | 2 |
